Skyjack SJ16 Operation Manual

36
SJ12, SJ16213721AAA

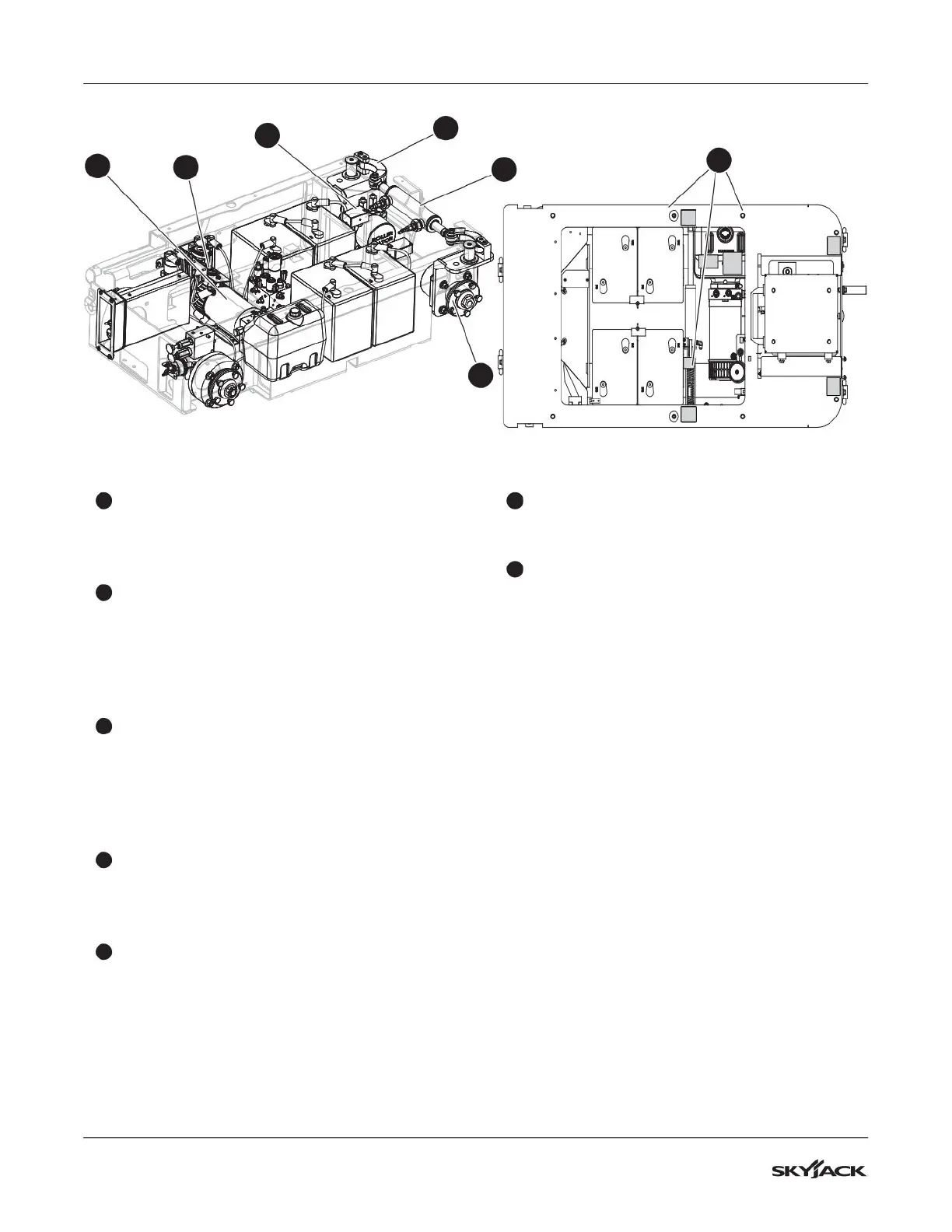

Section 4 – Inspections Before Operation Visual and daily maintenance inspections
4
5
9
4
Hydraulic pump and motor
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
5
Steer cylinder assembly
▪
Make sure the steer cylinder assembly is
correctly installed.
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
6
Steer linkages
▪
Make sure there are no loose or missing
fasteners and lock-pins.
▪
Make sure the steer linkages and bushings are
correctly attached.
▪
Make sure there is no visible damage.
7
Wheel/motor assembly
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
8
Motor controller
▪
Make sure the motor controller has no damage
and is correctly attached.
▪
Make sure there are no loose wires or missing
fasteners.
9
Tilt sensors
▪
Make sure the tilt sensors are correctly
attached and there is no visible damage.
10
Limit switches
▪
Make sure the limit switches are correctly
attached, there is no visible damage, and the
movement is not obstructed.
3. Close the compartment access door and latch it.
4. Push the platform to the operation position and
latch it.
7
6
8
10

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
