Skyjack SJ16 Operation Manual

71
SJ12, SJ16 213721AAA

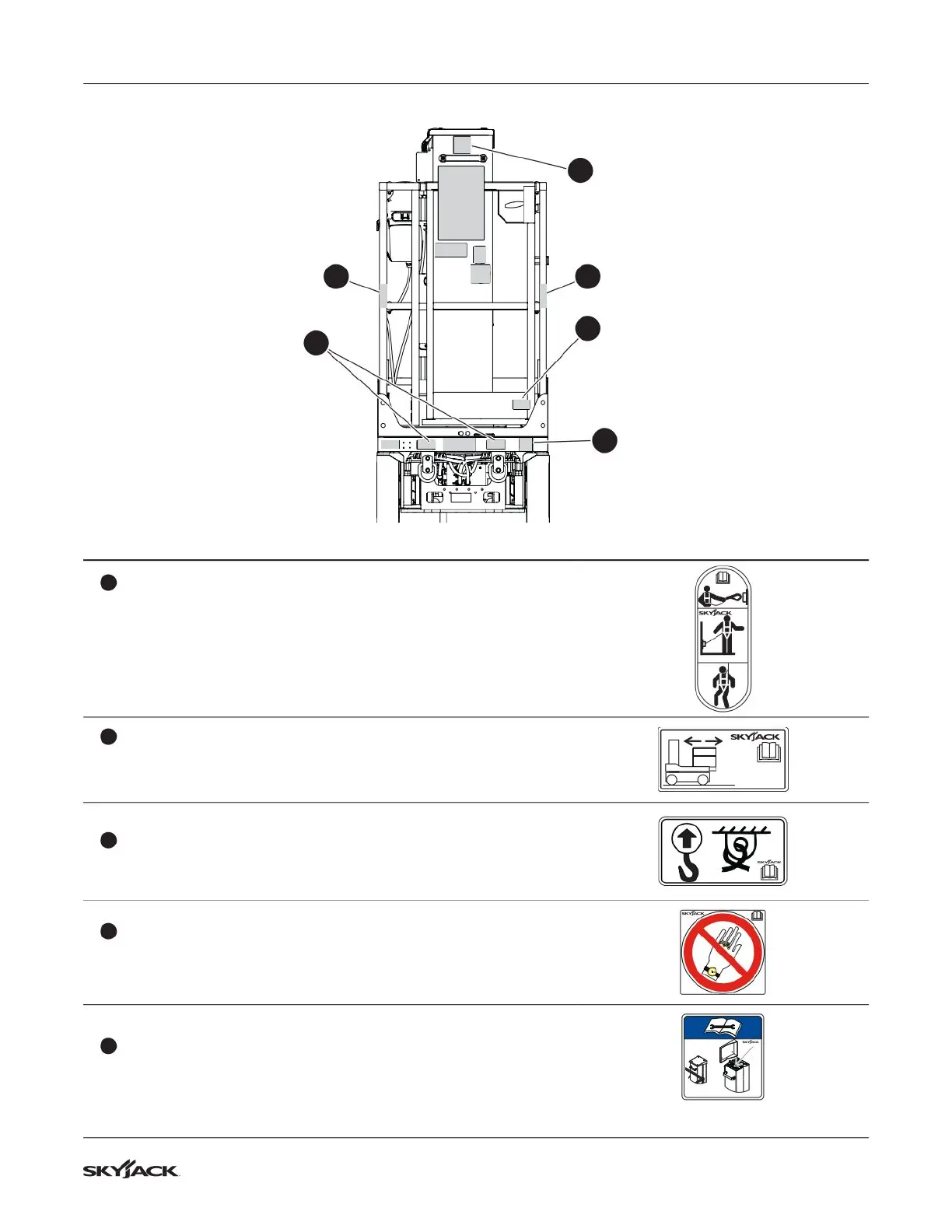

SJ12 and SJ16 models Section 8 – Labels
Description Label Pictorial
5
Fall-protection anchorages
When required, attach the body-harness lanyards of each
occupant to the fall-protection anchorage points.
Rated for one (1) person for each anchorage point.
Note: This label is inside the platform above the fall-protection
anchorages.
TM
X1
6
Platform traversing procedure
Refer to the operation manual.
Follow this procedure to traverse the platform.
157012ABZZ
TM
7
Lift and tie-down points
Only use these points to lift or tie-down the MEWP.
TM
8
No jewelry
Caution. Do not wear jewelry or loose clothing that could
become caught or entangled.
6
3
9
12
TM
9
Refer to the service manual.
Remove the cover to perform the scheduled maintenance.
TM
Front view (continued)
5
A600000001
8
7
6
9
5

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
