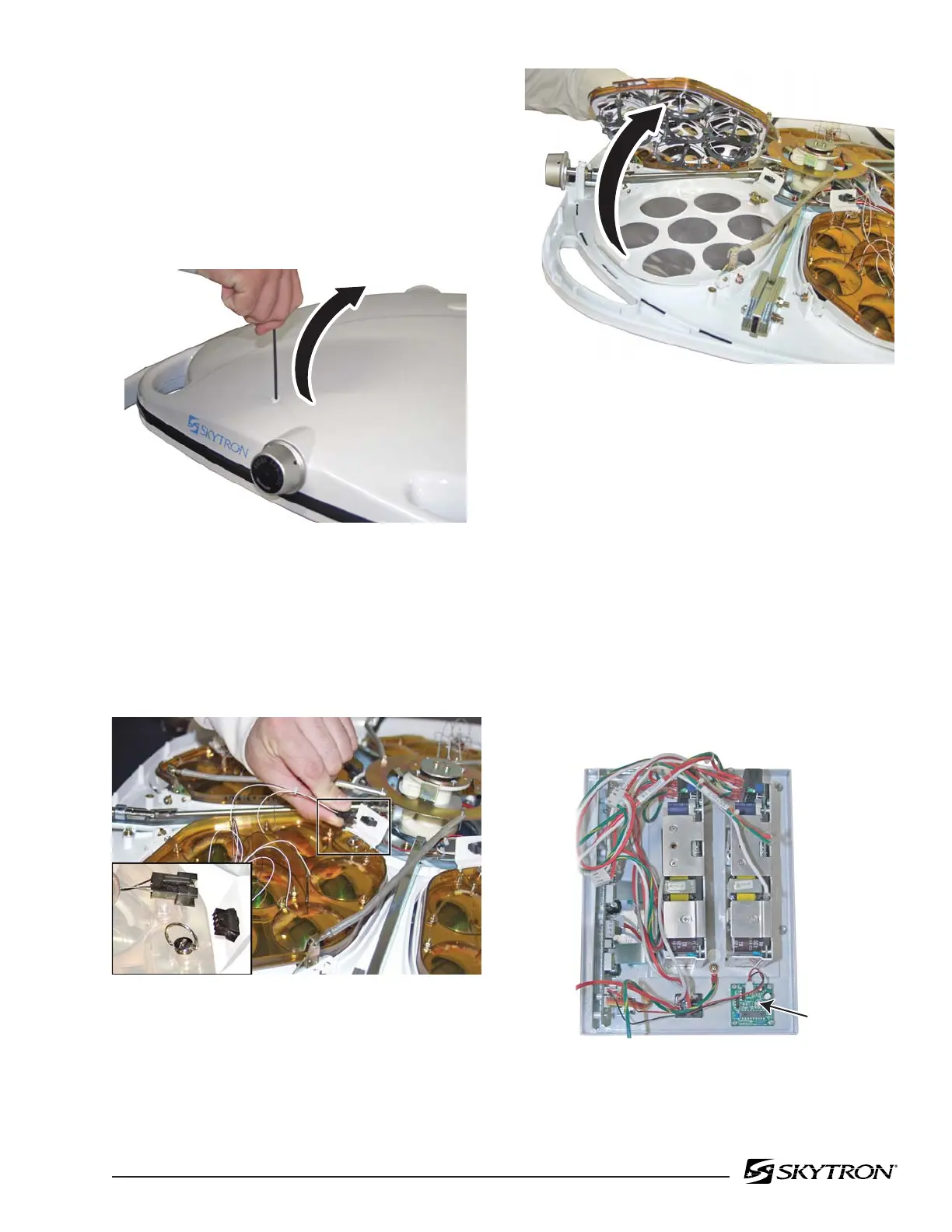

1-4. LED Module Changing
To replace a module, use the following procedure:
a. Remove the screws securing the top cover
and remove the top cover. See figure 1-1.
Figure 1-1.
b. Disconnect module connector and loosen the
1/4 turn screw securing the module. See figure 1-
2.
Figure 1-2.
c. Remove the module from the pad. See figure
1-3.
Figure 1-3.
d. Install new module in reverse order of re-
moval.
e. Reset Change Indicator after changing LEDs
using the following procedure:
1. Turn off power to fixture.
2. Remove four screws securing Wall Control
faceplate and remove faceplate.
3. Locate Reset Button as shown in figure 1-
4. Press button and hold for 2 seconds to reset.
CONNECTOR
1/4 TURN SCREW
REMOVE TOP
REMOVE SCREWS
Figure 1-4.
4. Install Wall Control Faceplate and turn
power back on to fixture.
