Page 15
b. The Radial Arms should maintain their posi-
tion without drifting yet move freely around the hub.
Normally this adjustment is correct from the factory
and does not change. If the Radial Arms drift, the
most probable cause is an unlevel mounting plate.
NOTE
Recheck the mounting plate to make
sure it is absolutely level. In most cases
releveling the plate will solve any drift-
ing problem.
c. If releveling the mounting plate does not
correct the drift, or the Radial Arms are difficult to
move, the bearing preload must be adjusted. This
requires the use of special tools. Contact your
SKYTRON dealer for assistance.
2-7. Radial Arm Horizontal Rotation Axis
a. Check the horizontal rotation axis tension by
moving the Radial Arms through their full range of
travel around the center mounting hub. Refer to
figure 2-13.

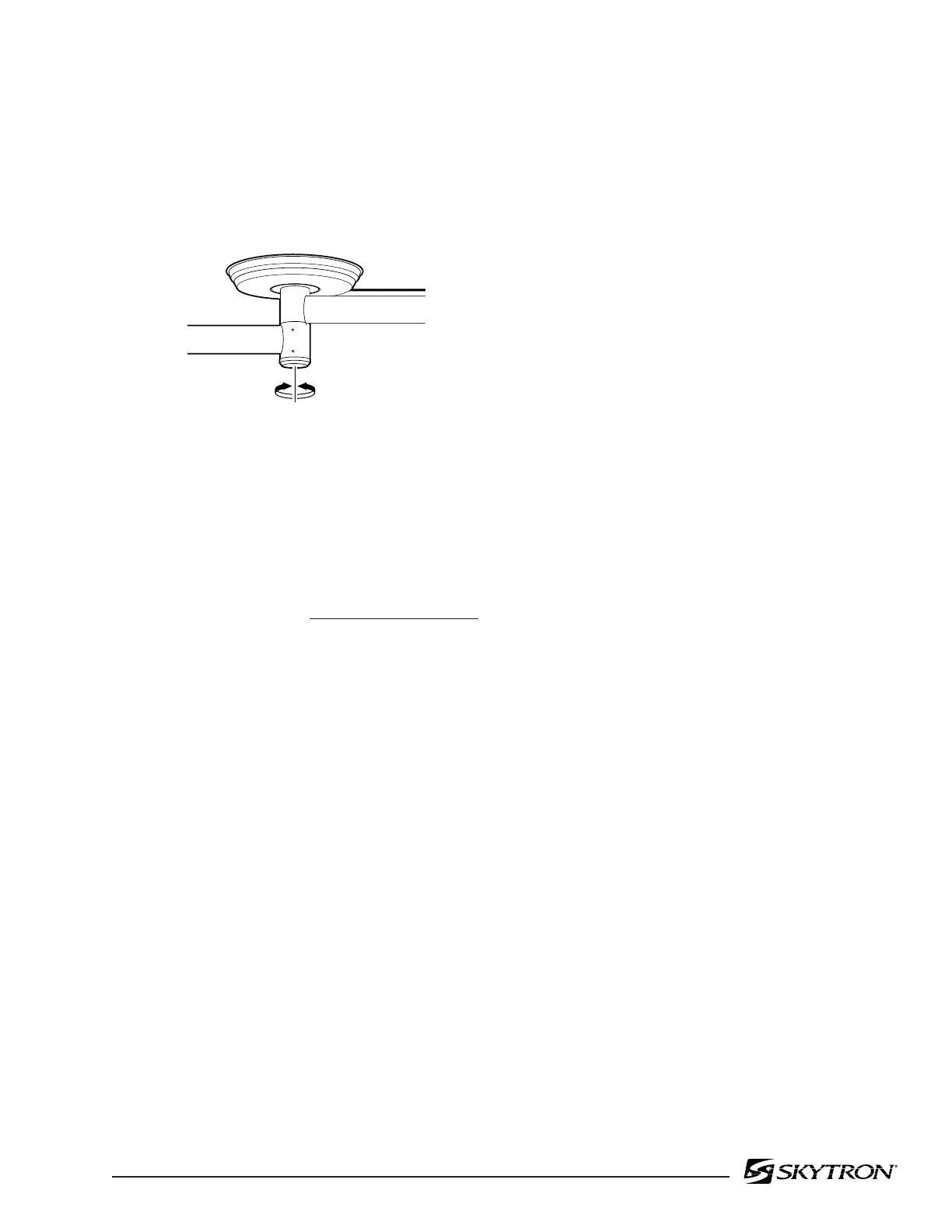

Figure 2-13.
E
Service
A regular program of preventive maintenance will
increase the life of your equipment and keep it
operating at peak performance.
Maintenance must be performed by authorized,
trained maintenance personnel using SKYTRON
authorized replacement parts and service
techniques. Service instructions and parts are avail-
able from SKYTRON.
Preventive Maintenance contracts are available
through your local SKYTRON representative.
To obtain service instructions, replacement parts,
factory service or preventive maintenance con-
tracts, contact the SKYTRON representative listed
below.
Or contact:
SKYTRON
5085 Corporate Exchange Blvd.
Grand Rapids, MI 49512
616-656-2900 FAX 616-656-2906
www.skytron.us
