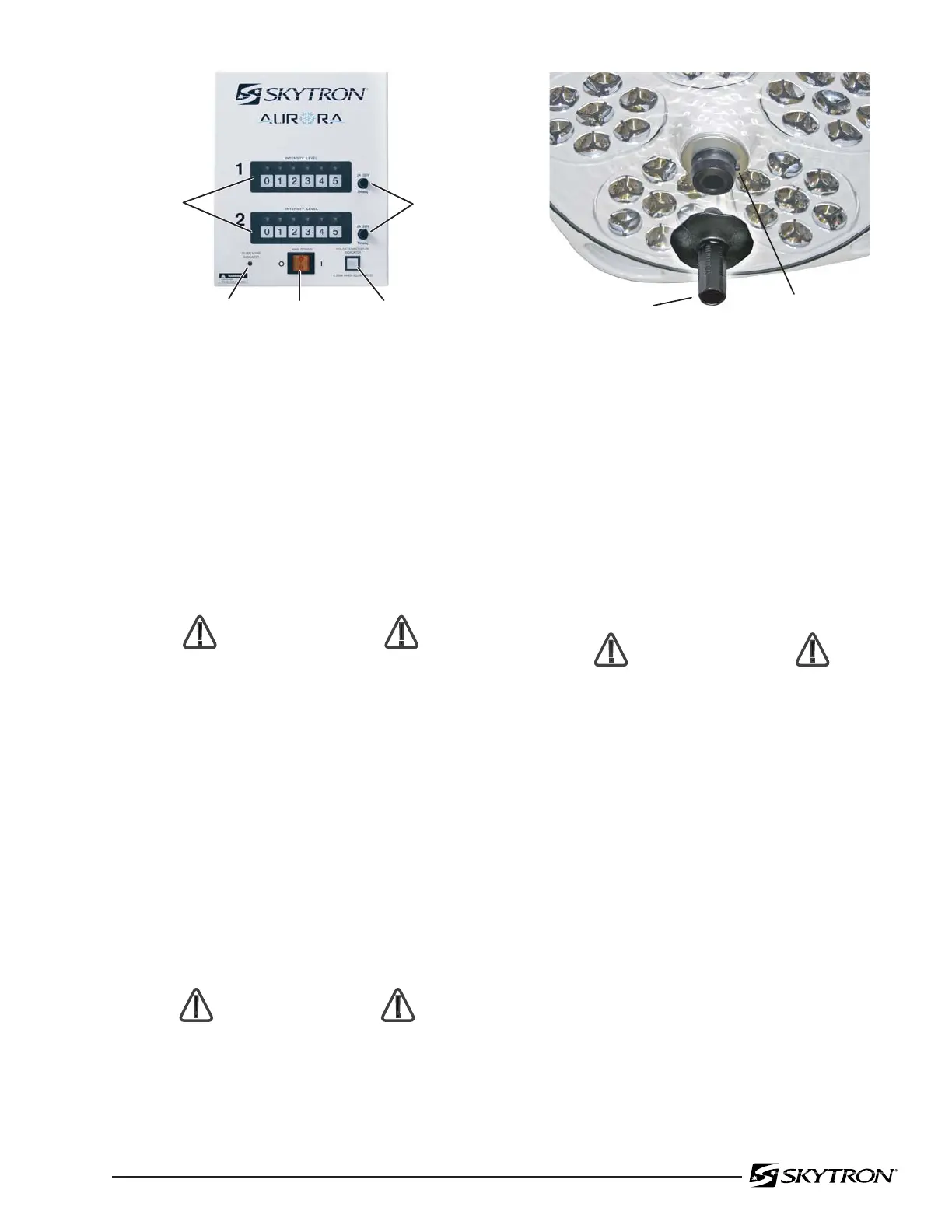

Figure 4. Wall Mounted Control Box
4. When the surgeon is ready to use the light,
install the sterilized center focus/positioning handle
using the following procedure. See figure 5. Be
sure handle is properly secured before using the
lighthead. Possible injury to patient or staff could
result if a handle is not installed properly.
a. Insert the handle into the lighthead at-
tachment ring.
WARNING
Be sure sterile handle is properly
secured before using the lighthead. An
improperly installed handle could fall
out, resulting in possible injury to patient
or surgical staff.
b. Push the handle in, turn it right and left,
and pull the handle out to be certain that it is locked
(PUSH-TWIST-PULL). A distinct click can be heard
when the handle is properly engaged.
c. To remove the handle, push the release
button and pull the handle out.
CAUTION
Sterilizable handles are subject to
normal wear and tear. Always examine
the handles for wear or damage to ensure
proper and safe operation with the
surgical light.
Figure 5. Center Focus/Positioning Handle
Installation
5. Adjust the focus by moving either the non-
sterile focus knob or the (sterilized) center focus
handle until all of the light beams converge on the
surgical site forming a single bright spot of light.
6. For low angle lighting approach, the lighthead
will move 90° below horizontal. Pull the lighthead
down by the positioning handles or the (sterile)
positioning/focus handle.
WARNING
DO NOT use this fixture in the presence
of FLAMMABLE GASES.
7. When the light is no longer required, return
the lighthead to its full up position. Decrease the
intensity at the wall control, and turn the main power
switch "OFF".
NOTE
SKYTRON products are guaranteed
for proper performance with the use of
genuine SKYTRON CENTER FOCUS
HANDLES. After market competitive
handles and other disposable handles
will have varying results that could
ultimately affect the proper performance
and secure engagement of the center
focus handle. Such applications are at
the discretion of the user to ensure
patient safety.
HANDLE
RELEASE
BUTTON
STERILIZABLE
HANDLE
SAFETY
FUSES
MAIN
POWER
SWITCH
INTENSITY
CONTROL
BUTTONS
COLOR
TEMPERATURE
CHANGE BUTTON
LED
CHANGE
INDICATOR
