STERILIZABLE
FOCUS/POSITIONING
HANDLE
NON-STERILE
SIDE FOCUS KNOB
Light model combinations are available with one,
two or three lightheads providing high illumination
of the operating field at varying angles. Combina-
tions of vertical positioning and multiple rotational
capabilities allow the single, dual or triple lighthead
models virtually limitless positioning within a thir-
teen foot diameter area (triple lighthead models).
The fixtures are single point ceiling mounted with
acontinuous360°rotationcapabilityattheceiling
mount end of the radial support arm. See figure 1.
The balance mechanism which is attached to the
radial arm by a vertical support tube, provides the
lighthead an additional continuous 360° rotation
point. The balance mechanism is an enclosed
spring tension system. This allows vertical move-
ment of the lighthead while maintaining the light-
head position without drifting. The yoke provides
additional360°rotationpointsforlightheadpitch
and roll.
The Aurora fixtures have a lighthead vertical travel
capabilityof110°.
The adjustable focus mechanism which optimizes
the light output by superimposing all the light
beams into a single spot can be operated by non-
sterile personnel using the lighthead mounted
focus knob.
All lightheads also have a removable, sterilizable,
focus/positioning handle. This allows all final po-
sitioning and focus adjustments or changes to be
precisely done by the surgeon. See figure 2.

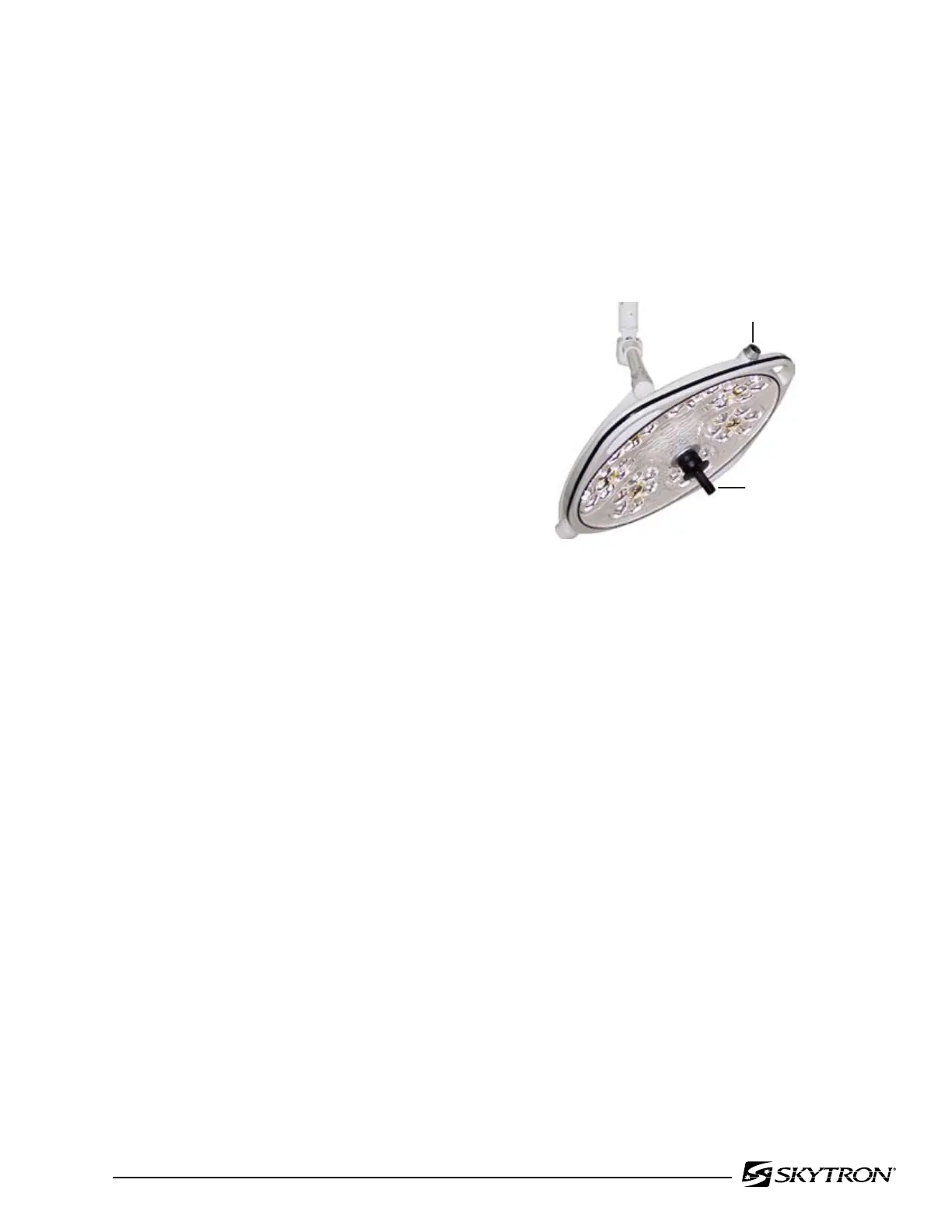

Figure 2. Focus Adjustments
To Next Page
