Page 13
3. Place the radial arm in the desired position by
pushing or pulling the lighthead by the positioning
handles as you walk around the surgical table.
4. Refer to figure 8 to approximate the desired
radial arm position for locating the lighthead over
the patient.

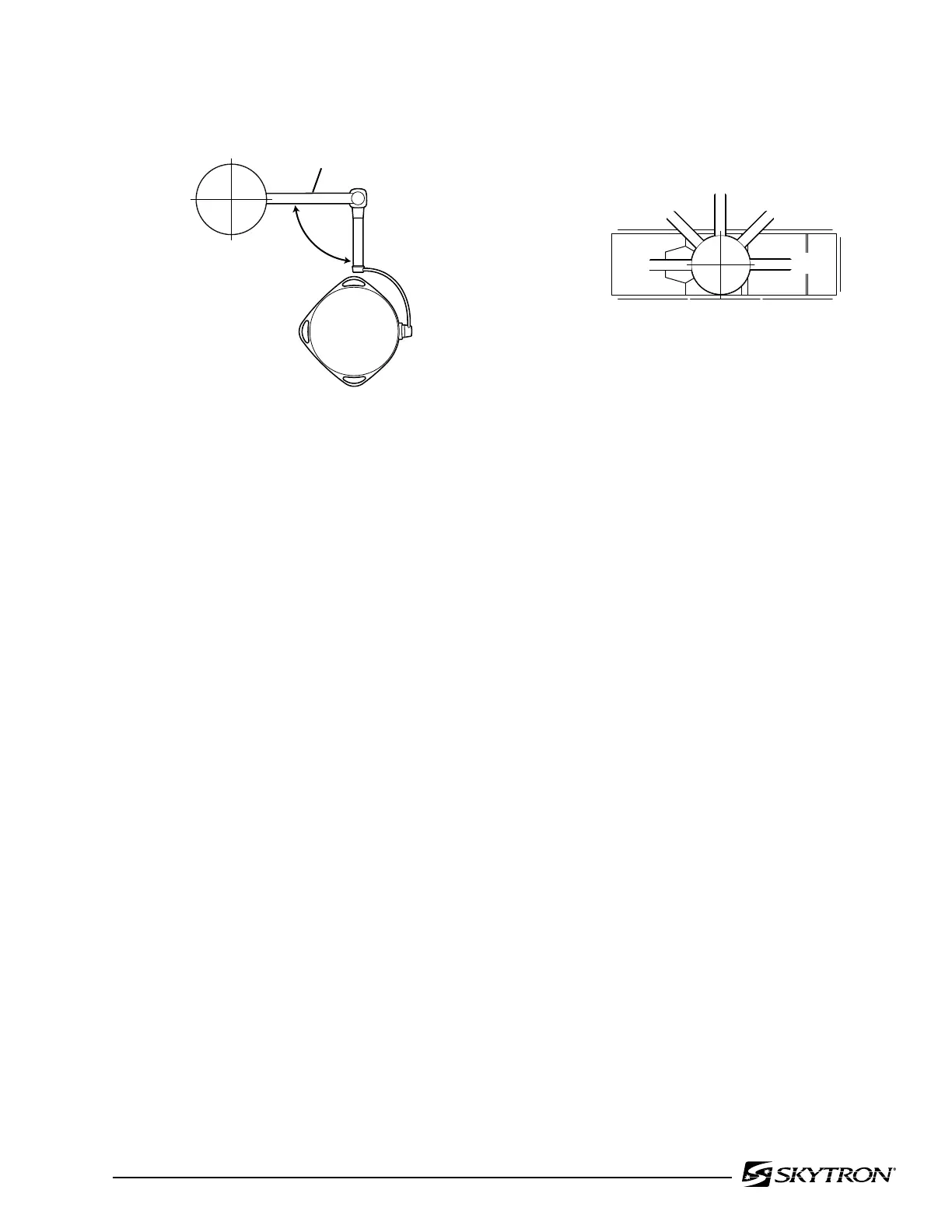

Figure 7.
Figure 8. Main Lighthead Radial Arm
Positioning
5.Withtheradialarminproperposition,rotate
the lighthead to the desired position and install the
sterile positioning/focus handle. Refer to sterile
handle installation procedure.
6. Grasp the positioning handles, place the
lighthead at an angle and move the lighthead to
its full up position.
90°
ABDOMINAL
CHEST
PELVIC
HIP
ORTHO
OB/GYN
NEURO
EENT
DOCTOR SIDE OF TABLE
45°
45°
180° 180°
