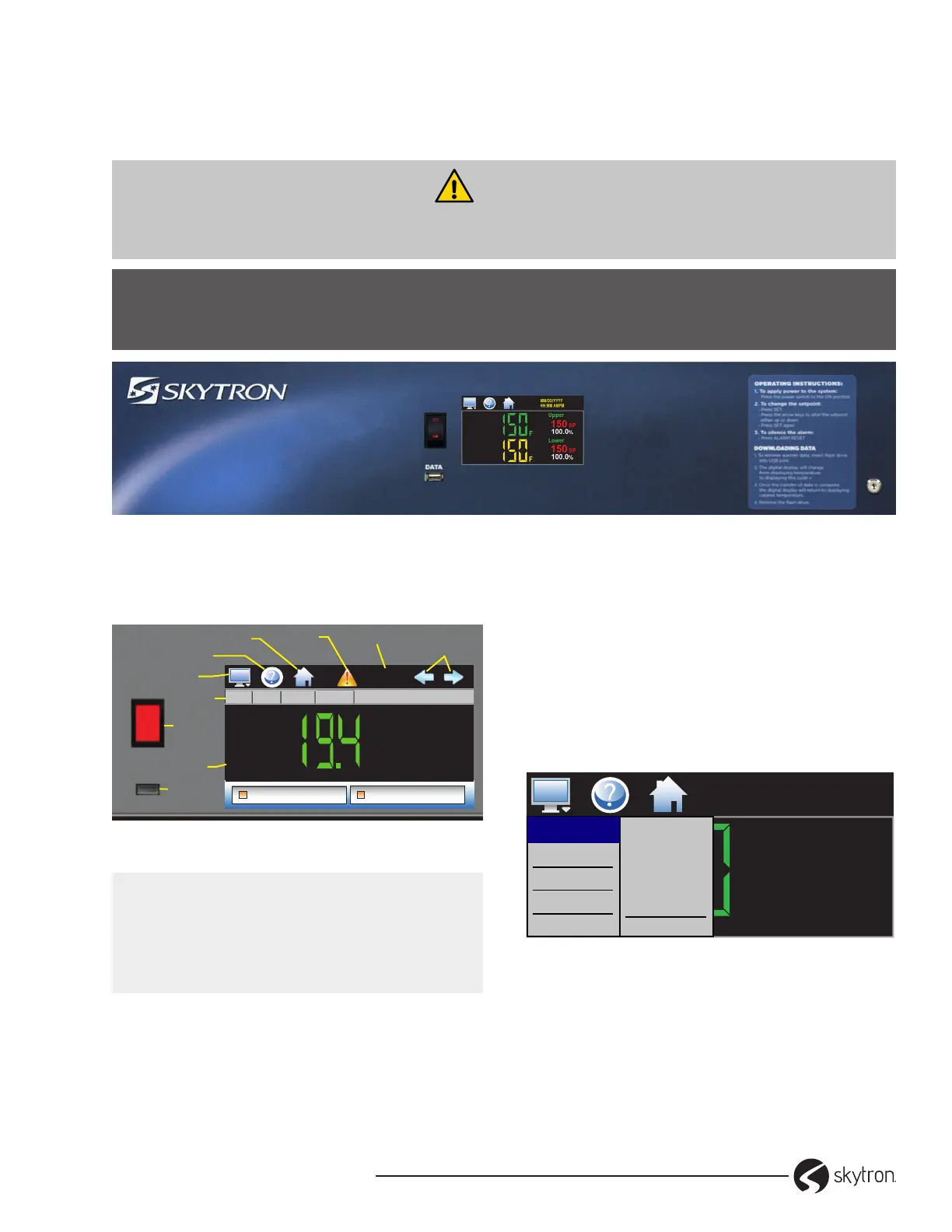

4-2. Touch Screen Controls
The touch screen is located in the center of the upper panel at the front of the cabinet. A single touch
screen controls single or dual chamber cabinets (Figure 11).
WARNING
The USB port should only be used for downloading temperature history data. DO NOT connect
USB wireless devices due to potential EMI conditions.
NOTICE
The rst time the warming cabinet is powered on the touch screen requires conguration that must
be performed by an administrator or supervisor with an additional logon.
Figure 11. Touch Screen Control Panel.
4-2-1. Touch Screen Interface
The touch screen display (Figure 12).
OFF
ON
HOME
TOUCH SCREEN
HELP
MONITOR
USB PORT
ON/OFF
SWITCH
ALARM
DATE/TIME
LOOP 1
24.0
C
100.0
Manual Control Automatic Tune
SP
%
MM/DD/YYYY
HH:MM AMPM
NAVIGATION
ARROWS
New Users Access Options
TABS
Figure 12. Touch Screen Controls
CAUTION
Avoid damage to the touch screen. DO NOT
use sharp or metallic objects and make sure
hands are free of oils or other chemicals when
touching the screen.
Monitor icon opens the main menu for navigating
to dierent screens: security, data, setup, etc.
Help icon displays instructions for current screen.
Alarm icon appears and ashes when an alarm
occurs. Touch icon to open alarm monitor screen.
The Left/right Navigation Arrows scroll to additional
information, charts or program entry screens. Up/
down arrows scroll through lists (touch swiping is
also provided). Tapping an arrow will scroll to the next
item, touching will continue scrolling until released.
The touch screen provides both text based PC
style menus and icon based/slide page navigation
menus. Either type can be selected at any time
from the Navigation screen (Figure 13).
MM/DD/YYYY
HH:MM AMPM
Single
F
100.0
%
150 SP
Single
Dual
Chart
Alarm
Alarm File
Program
►
Device
►
Security
►
Data
►
View
►
Figure 13. PC Style Navigation Menu
To Next Page
