WARMING CABINET OWNER’S • REV2

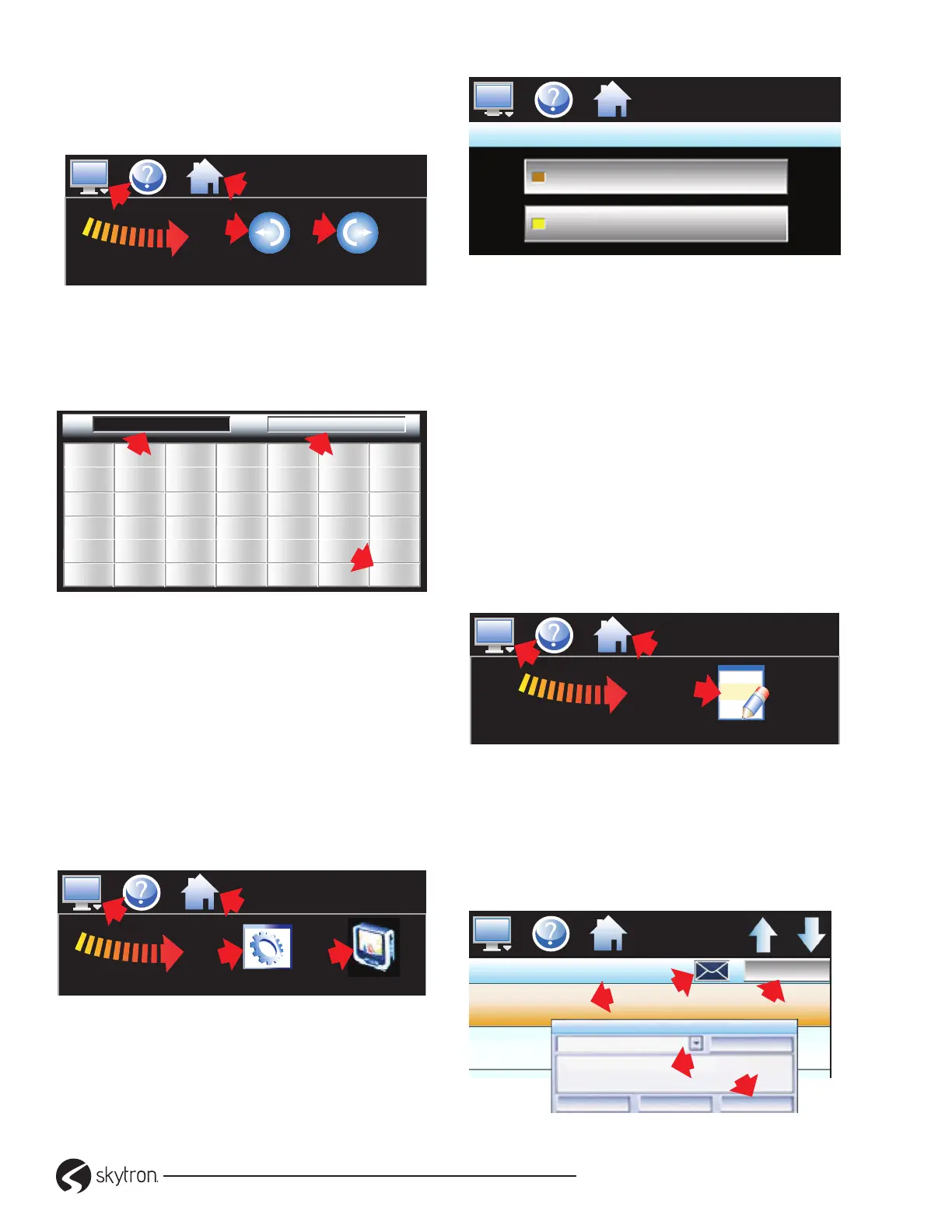

4-2-2. User Login/Log O󰀨
1. LOG ON. Touch: (1)Home (2)Monitor (3) swipe
left-to-right, touch (4)Login (Figure 14).
Login Logout
S
W
I
P
E
3
4 5
MM/DD/YYYY
HH:MM AMPM
2
1
Figure 14. Login Icon
2. Touch keypad User box, key (1)User name.
Touch keypad Pwd box, key (2)Password.
Touch (3)Done. (Figure 15).
A
E
I
M
Q
U
B
F
J
N
R
V
C
G
K
O
S
W
D
H
L
P
T
X
Back
1
4
7
Space
Y
Clear
2
5
8
Shift
Z
Cancel
3
6
9
0
Done
User
Pwd
*****
NAME
1
2
3
Figure 15. Touch Keypad
3. LOG OFF. Touch: (1)Home (2)Monitor (3)swipe
left-to-right, touch (5)Log O󰀨. A pop-up will ask
if you want to log o󰀨. Select YES to log o󰀨 or
NO to abort (see Figure 14).
4-2-3. Touch Screen Navigation Style
Select text based PC style menus or icon based/
slide page navigation menus (see Figure 13).
1. Touch: (1)Home (2)Monitor (3)swipe left-to-right,
touch (4)Settings (5)Navigation (Figure 16).
S
W
I
P
E
3
MM/DD/YYYY
HH:MM AMPM
2
1
Settings
4
5
Navigation
Figure 16. Settings & Navigation Icons
2. Touch menu type, indicator will illuminate to
indicate current selection (Figure 17).
Menu Navigation
Icon Navigation
Navigation
MM/DD/YYYY
HH:MM AMPM
Figure 17. Navigation Selection Screen
4-2-4. Audit Trail
The audit function records all user changes (set
point, start/stop data logging, alarm set point, etc.)
for a day. Audit les can be stored for a year or longer
based on history storage. If no changes occurred,
an audit le will not be created for that day
Actions recorded include: date/time, occurrence
and user (if logged in). If not logged in, the default
user is “Device Manager”.
The Email icon allows a copy of the currently opened
audit trail le to any user congured in the controller.
1. Touch: (1)Home (2)Monitor (3)swipe screen
left-to-right, touch (4)Audit icon (Figure 18).
Audit
S
W
I
P
E
3
MM/DD/YYYY
HH:MM AMPM
2
1
4
Figure 18. Audit Icon
2. Audit File screen, touch (1)Open (2)select le
(1)Open. To Email a copy of the opened le,
touch (3)Email icon (4)select recipient from the
Select Email Address pop-up. Touch (5)Send
(Figure 19).
.
MM/DD/YYYY
HH:MM AM PM
Audit File
Open
MM/DD/YYYY HH:MM AM PM
User Name
Occurrence
1
3
Occurrence
User Name
MM/DD/YYYY HH:MM AM PM
First LastName Select
SendCancelClear
ID@EmailAddress
Select Email Address
2
4
5
Figure 19. Audit File Screen
