12.2.2 Configurations
Possible configurations of supervisioning traffic are shown in Tab.30.
Tab.30 - Configurations
12.2.3 "Local Access only" management
This modality allows the access to "ALFOplus" unit only with the local "Ge LAN2" in the easiest possible
way, with frames without " VLAN tag" and therefore with IP domain shared. This modality can be used if
the user is IP addresses owner and so the equipment is inserted into a traffic network level 3 (IP routing).
For this reason, the Security management is defined by the operator using the function (Access Control
List).

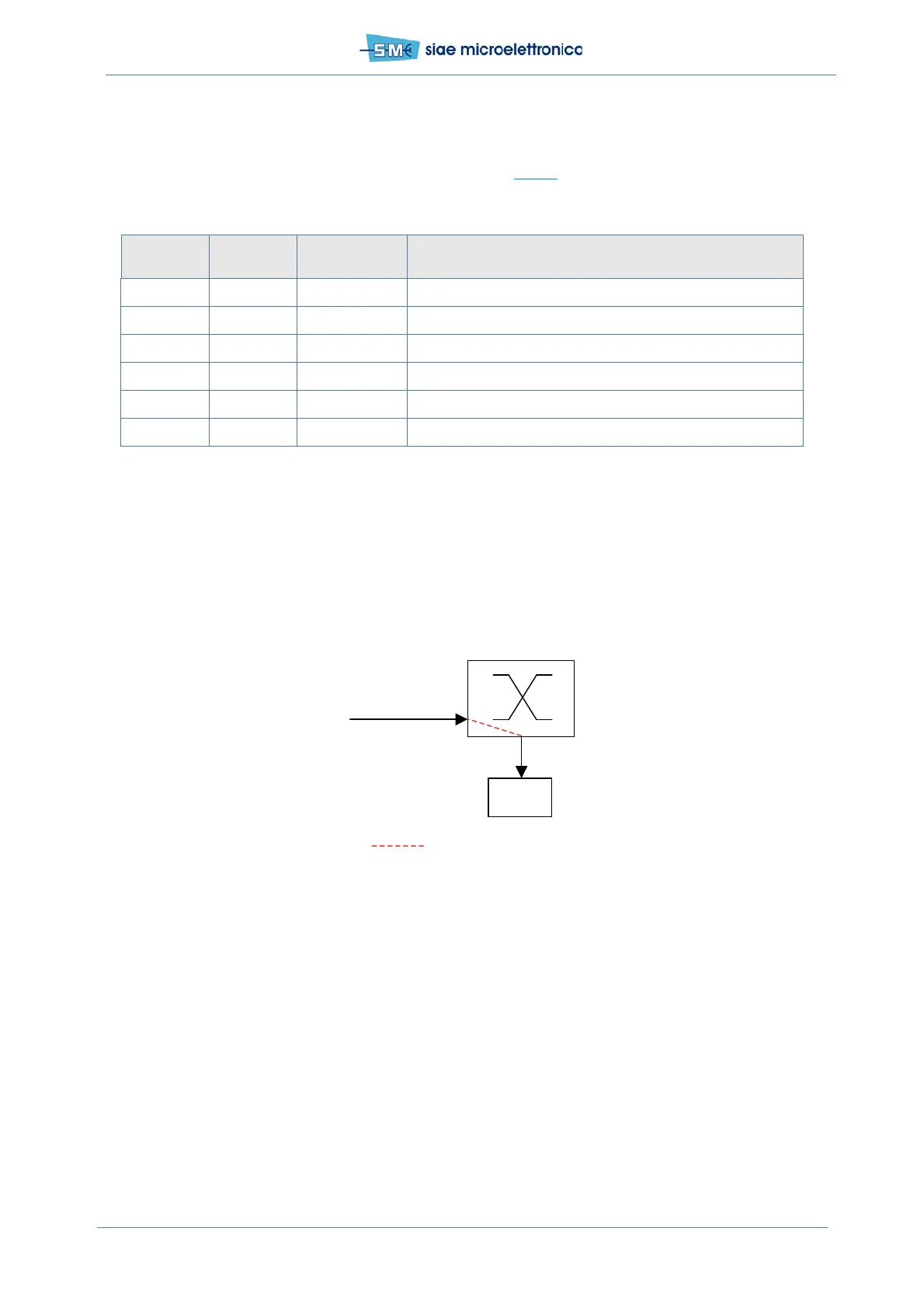

Fig.84 - Local access only
LAN1 LAN2
Internal Port
(Radio side)
Description
Disable LAO Disable Lan1 only payload and Lan2 only local management
Disable OoB Disable/OoB Lan1 only payload and Lan2 only management
In-Band LAO Disable/IB Lan1 Vlan mngt+payload and Lan2 only local management
In-Band Drop/node Disable/IB Lan1 Vlan mngt+payload and Lan2 only management
In-Band In-Band Disable Lan1 Vlan mngt+payload and Lan2 Vlan mngt+payload
In-Band Disable Disable/IB Lan1 Vlanmngt+payload and Lan2 disable
Ge LAN2
CPU
Port based vlan
