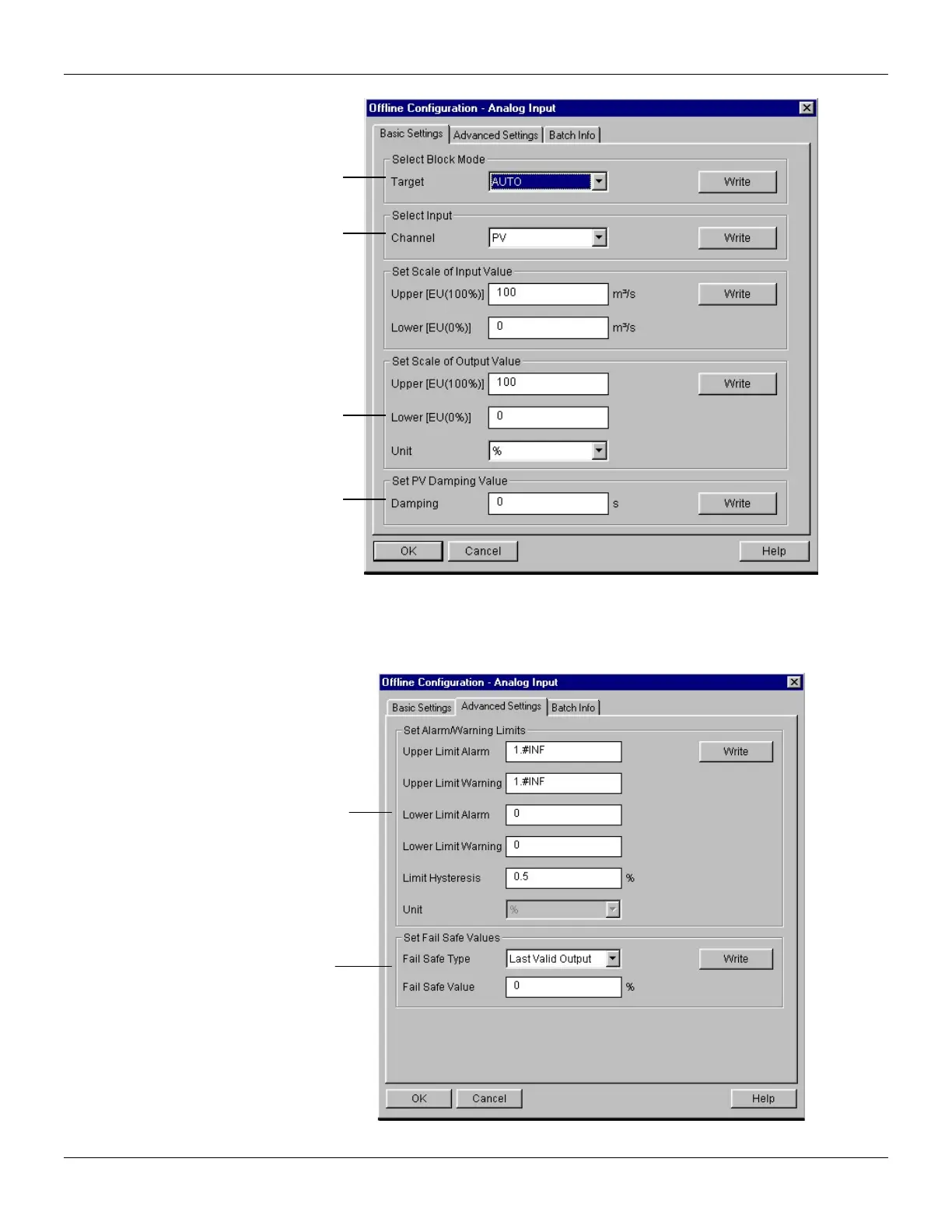

Figure 3.4 - Simatic PDM - Basic Settings for Analog Input Block
Selecting the page "Advanced Settings", the user can configure the conditions for alarms and
warnings, as well the fail safe condition. Please, see the window:
Figure 3.5 - Simatic PDM - Advanced Settings for Analog Input Block
The user can set
the block mode
operation.
The user can select
PV, Sec Value 1 or
Sec Value 2 for the
channel parameter.
Scale of input value.
The unit comes
from the transducer
block. Scales and
unit for the output
value
The user can set
the PV damping
value.
The user can set
Alarm/Warning limits.
The fail-safe
conditions
