Configuration
3.19

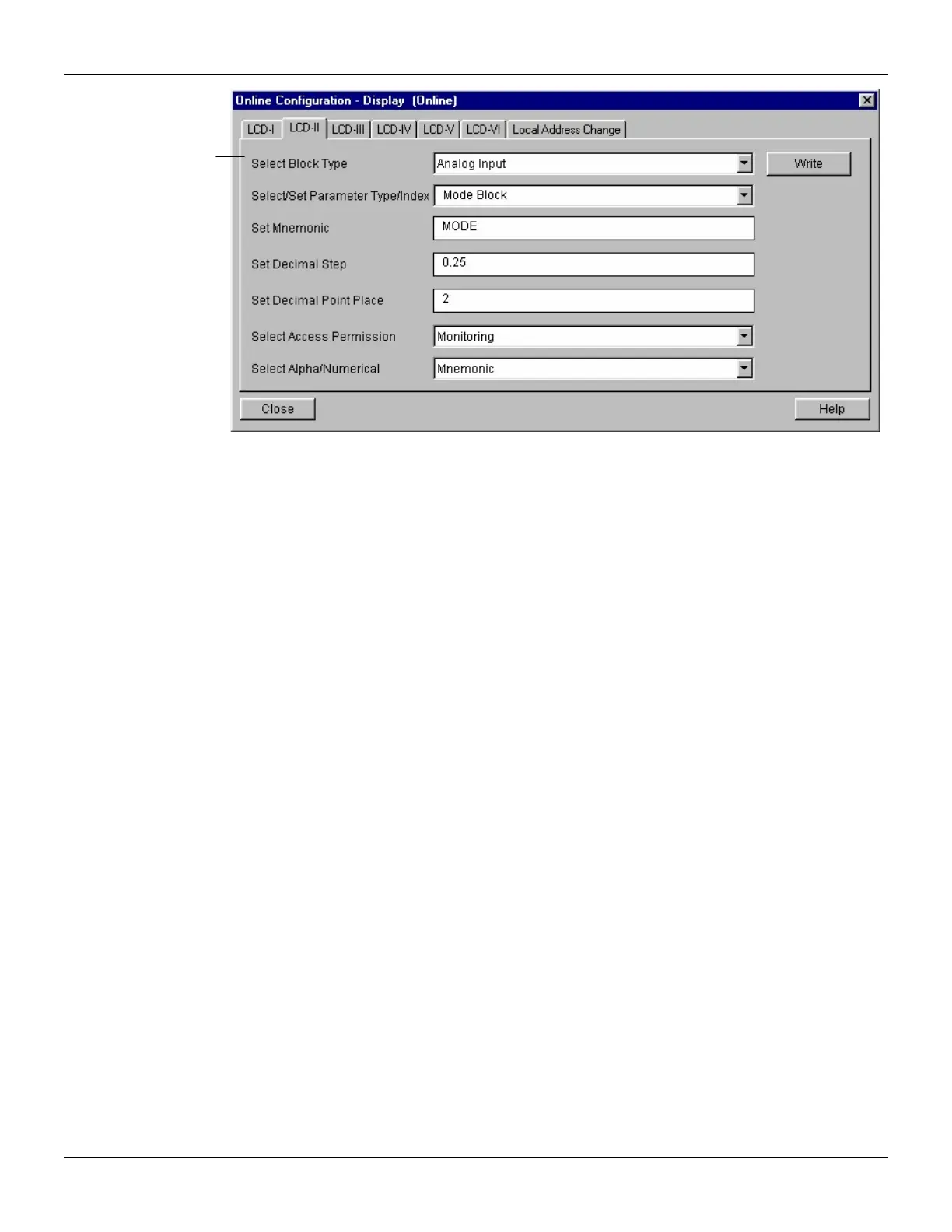

Figure 3.20 - Parameters for Local Adjustment Configuration
Programming Using Local Adjustment
The local adjustment is completely configured by Simatic PDM or any other configuration tool. It
means, the user can select the best options to fit his application. From factory, it is configured with
the options to set the Upper and Lower trim, for monitoring the input transducer output and check
the Tag. Normally, the transmitter is much better configured by configuration tool, but the local
functionality of the LCD permits an easy and fast action on certain parameters, since it does not rely
on communication and network wiring connections. Among the possibilities by Local Adjustment, the
following options can be emphasized: Mode block, Outputs monitoring, Tag visualization and Tuning
Parameters setting.
The interface between the user is also described very detailed this manual in the chapter related to
"Programming Using Local Adjustment". It is significantly the resources on this transducer display,
also all the Series 303 field devices from Smar has the same methodology to handle with it. So,
since the user has learned once, he is capable to handle all kind of field devices from Smar. This
Local adjustment configuration is a suggestion only. The user may choose his preferred
configuration via configuration toll, simply configuring the display block).
Mode Block
parameter is shown
at the LCD.
