Configuration
3.15

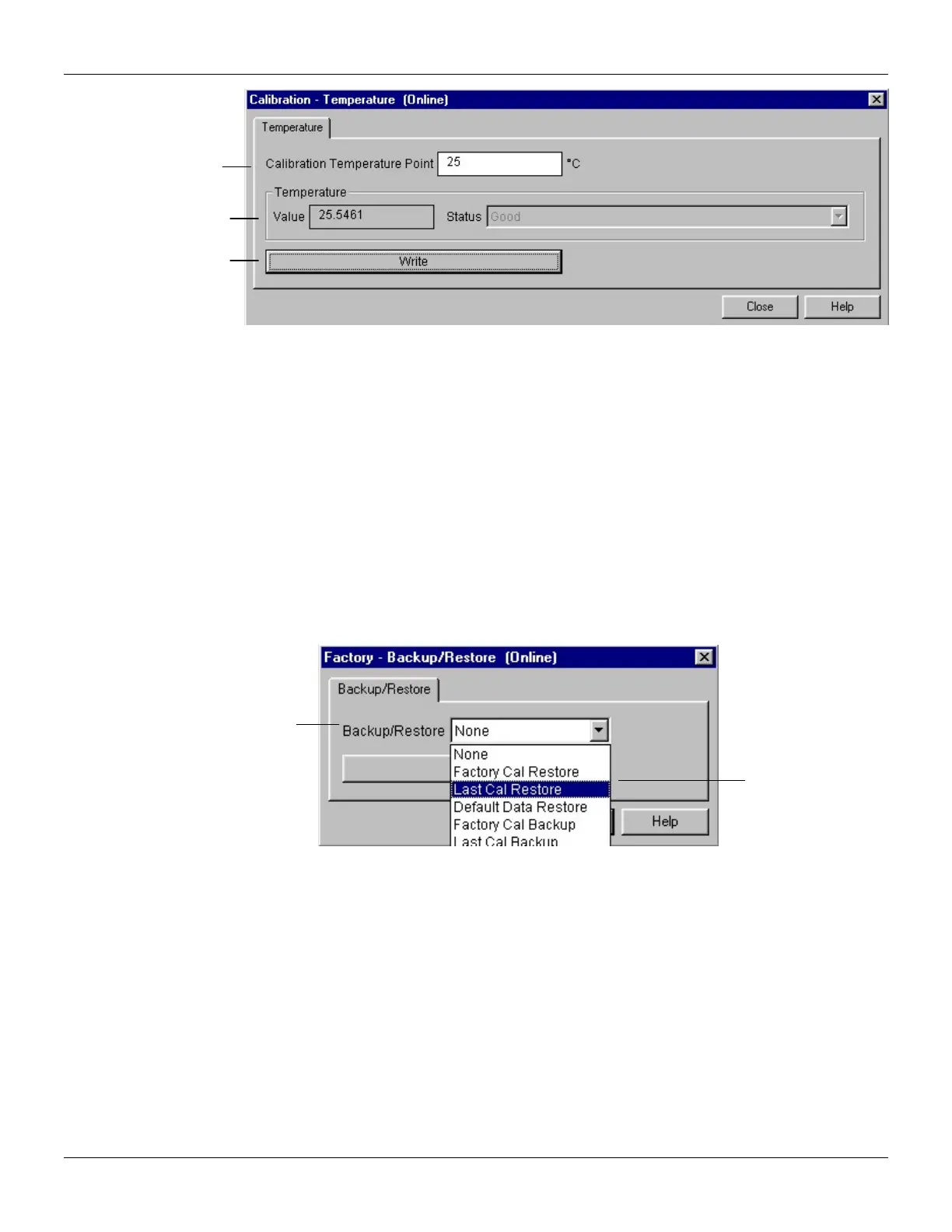

Figure 3.14 - Temperature Trim Configuration Screen
Backup Restore
Through the parameter Backup_Restore, the user can recover default data from factory about
sensor and last saved calibration settings, as well as making the rescue of calibrations. We have the
following options:
• Factory Cal Restore: Recover last calibration settings made at factory;
• Last Cal Restore: Recover last calibration settings made by user and saved as backup;
• Default Data Restore: Restore all data as default;
• Factory Cal Backup: Copy the actual calibration settings to the factory ones;
• Last Cal Backup: Copy the actual calibration settings to the backup ones;
• None: Default value, no action is done.
On the main menu, selecting Device Factory - Backup/ Restore, the user can select backup and
restore operations:
Figure 3.15 - Transducer Block - Backup/Restore
Transducer Display – Configuration
Using the Simatic PDM or any other configuration tool is possible to configure the display transducer
block. As the name described it is a transducer due the interfacing of its block with the LCD
hardware.
The transducer display is treated as a normal block by any configuration tool. It means, this block
has some parameters and those ones can be configured according to customer's needs.
The customer can choose up to six parameters to be shown at LCD display, they can be parameters
just for monitoring purpose or for acting locally in the field devices by using a magnetic tool. The
seventh parameter is used to access the physical device address. The user can change this
address according to his application. To access and configure the display block, please, go to the
main menu; select Device online Configuration - Display Block:
The window shows the actual
calibrated point and allows
entering the desired one.
By adjustment this parameter to the
current temperature, the device’s
temperature indication is adjustment.
The result of temperature
calibration process.
to save or restore the
default, factory of user
configuration store at the
EEPROM module.
contained in the list box,
operations of backup and
restore data in the sensor
module can be done.
