Configuration
3.11

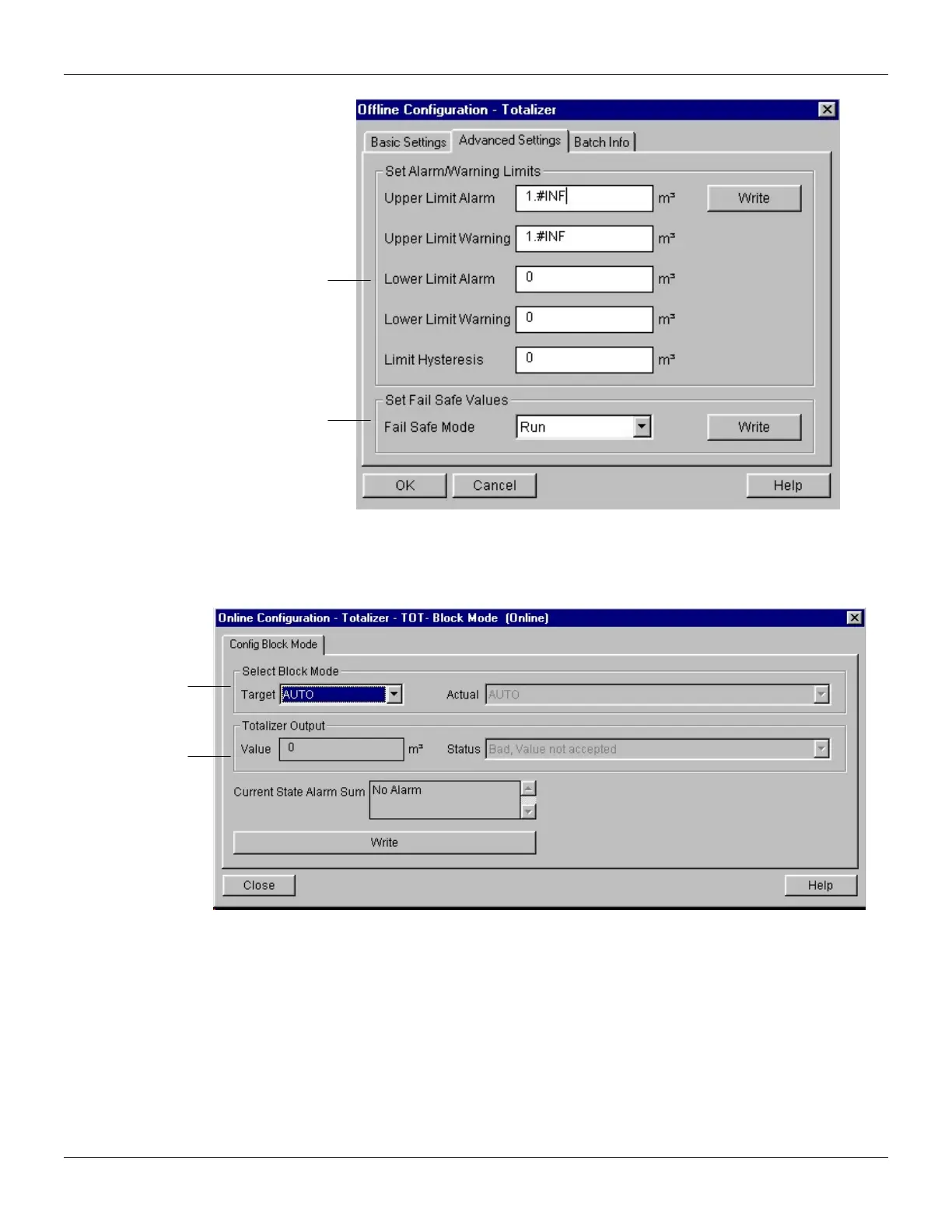

Figure 3.8 - Simatic PDM - Offline Configuration - Advanced Settings for Totalizer Block
In terms of online configuration for the Totalizer Block, please, go to the main menu and select
"Device - Online Configuration - Totalizer ", we have the following windows:
Figure 3.9 - Simatic PDM - Online Configuration - Block Mode for Totalizer Block
Conditions of alarm
and warning limits.
The user can set the
fail-safe value:
Run, Hold or Memory.
The user can set
mode block
operation.
The user can monitor
the totalizer output
parameter and verify
the current state
alarm.
