SMART UF55 - Connection Ports

7 English
Introduction
Introduction

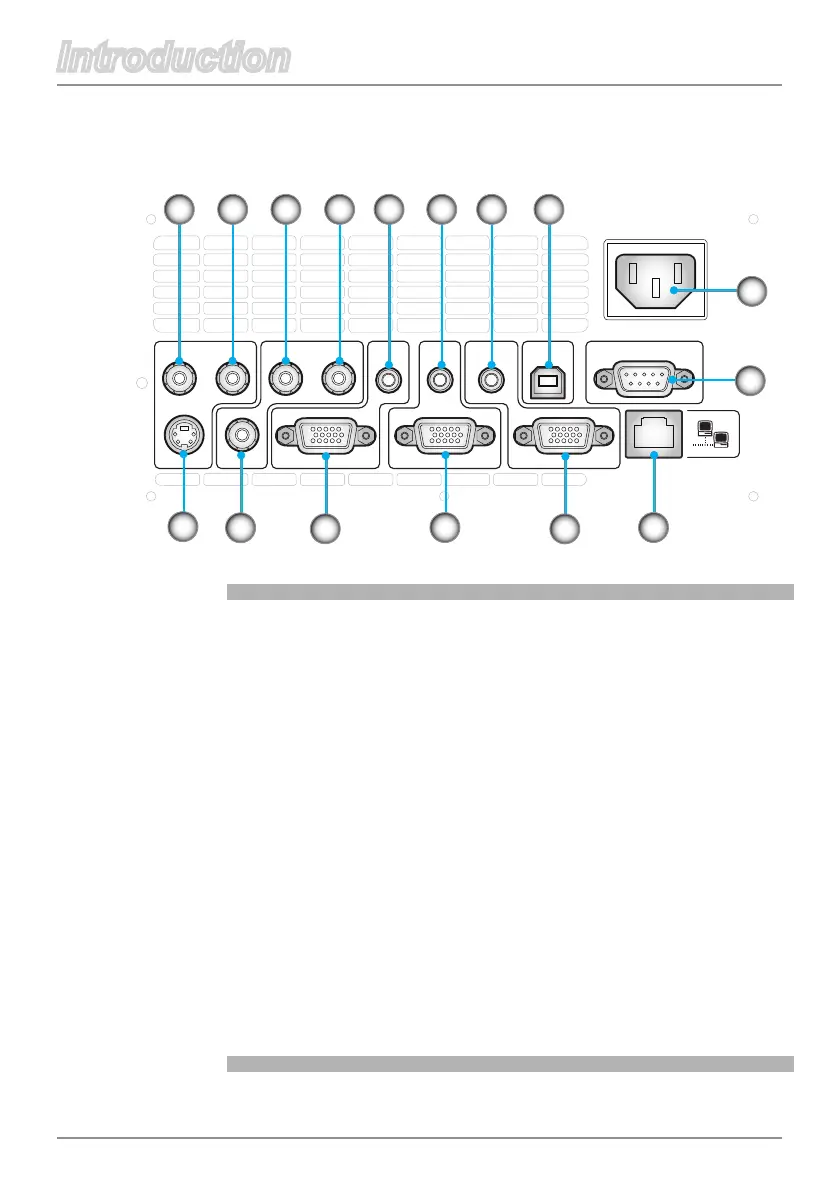

Connection Ports
1. Audio-LConnector(forS-VideoConnector)
2. Audio-RConnector(forS-VideoConnector)
3. Audio-LConnector(forCompositeVideoConnector)
4. Audio-RConnector(forCompositeVideoConnector)
5. Audio-2InputConnector(forVGA2-InConnector)
6. Audio-1InputConnector(forVGA1-InConnector)
7. Audio-Out Connector
8. USB Connector (for service)
9. Power Socket
10. RS-232 Connector
11. Networking Connector RJ45
12.VGA-OutConnector(MonitorLoop-ThroughOutput)
13.VGA1-InConnector
 (PCAnalogSignal/ComponentVideoInput)
14.VGA2-InConnector
 (PCAnalogSignal/ComponentVideoInput)
15.VideoInputConnector
16.S-VideoInputConnector
100V - 240V
50 Hz - 60 Hz
VideoS-video
Audio In Audio In
VGA Out
Audio 1 Audio Out Service Control
Computer (VGA) 2
Audio 2
Computer (VGA) 1
9
16
4 521 3 6 7 8
15
14
13
12
11
10
