Smarter tools ST-GP6500 - Parts List and Diagrams; Crankcase Assembly; Crankshaft Assembly

GP Series
26
©2014 Smarter Tools, Inc. All Rights Reserved

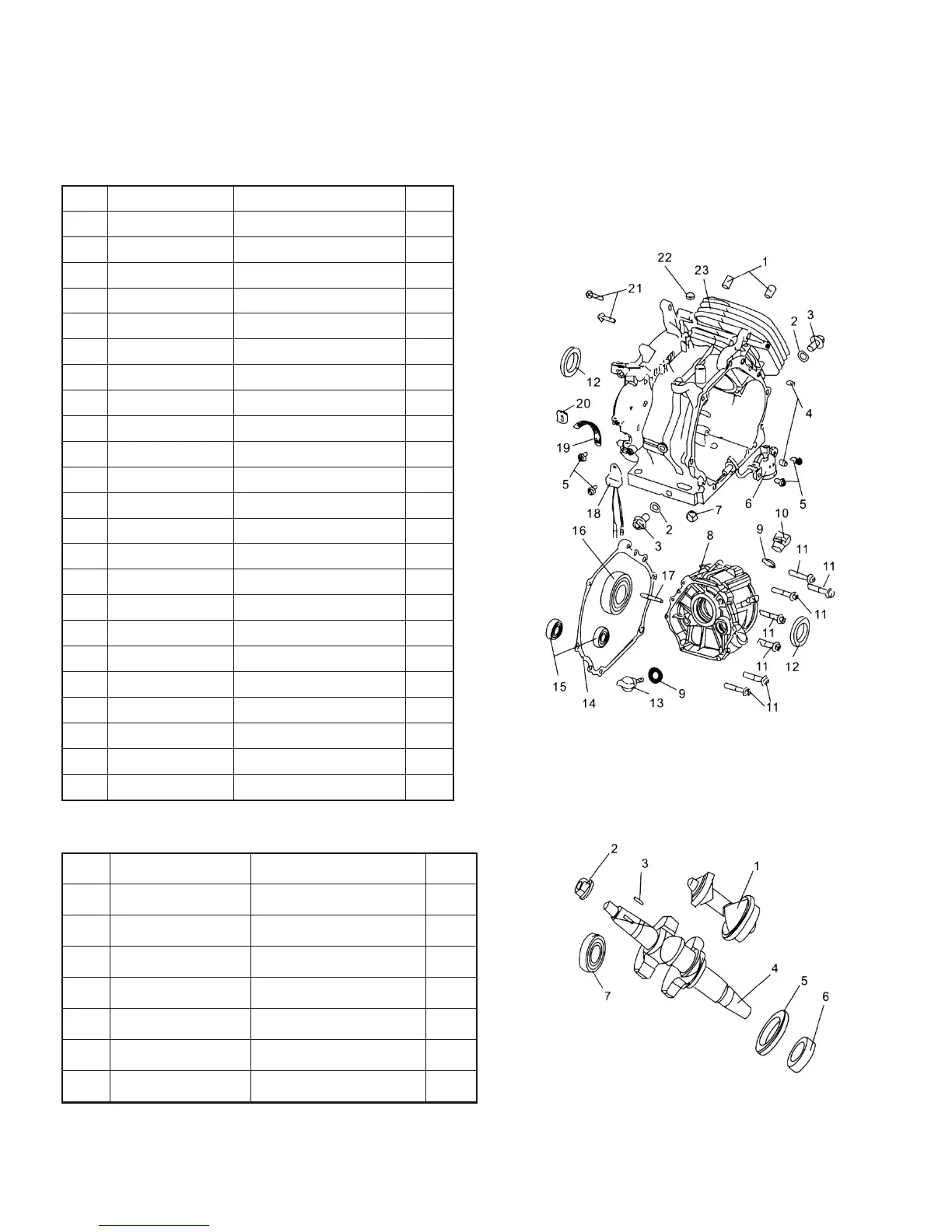

PARTS LIST AND DIAGRAMS
Crankcase Assembly
NO. PART NO. DESCRIPTION QTY
1
QJ182QDP.01-11
Sleeve, locating
2
2 157.5-10
SPACER, drain
2
3 157.5-9
BOLT, drain
2
4
QJ150FMG.5-8
DOWEL PIN 2
5
GB/T5787-86 BOLT M6 12 4
6 QJ182QDP.01.04
Sensor Assy, Fuel level
1
7 157-1-6-13 NUT
1
8 QJ182QDP.01-01
COVER, CRANKCASE
1
9 QJ168QDJ.01-05
SEAL WASHER 2
10 QJ168QDJ.01-03
PLUG, ADD OIL
1
11 GB/T5787-86 BOLT M8 40
7
12
QJ182QDP.01.01
OIL SEAL 52 34 8 2
13 QJ168QDJ.01-04
OIL LEVEL STICK 1
14
QJ182QDP.01-03
SPACER, CRANKCASE
1
15 GB/T276-94
Bearing6202 15 35 11
2
16
GB/T276-94
Bearing6207 35 72 17
1
17
QJ182QDP.01-10
Pin 1
18 QJ182QDP.01-05
ELECTRONIC SWITCH 1
19
QJ182QDP.01-09
CLIP, Cord
1
20 QJ182QDP.01-08
SEAL GASKET, rubber
1
21
GB/T5787-86
BOLT M6 25
2
22
QJ182QDP.01.03
OIL SEAL 1
23
JF190FPH.01.01B
CRANKCASE ASSY
1
NO. PART NO. DESCRIPTION QTY
1
QJ182QDP.04-01
BALANCE SHAFT 1
2
QJ182QDP.04-02 NUT
1
3 QJ182QDP.04-03
WOODRUFF KEY 1
4
JF190FPH-2.05.01-01
CRANKSHAFT(1-type)
1
5 QJ182QDP.04-05 CRANKSHAFT GEAR
1
6 QJ182QDP.04-06
CRANKSHAFT GEAR 1
7
GB/T276-94
Bearing 6207
1
Crankshaft Assembly
