Smarter tools ST-GP6500 - Centrifugal Timing Implement Assembly; Inflame Assembly

GP Series
29
©2014 Smarter Tools, Inc. All Rights Reserved

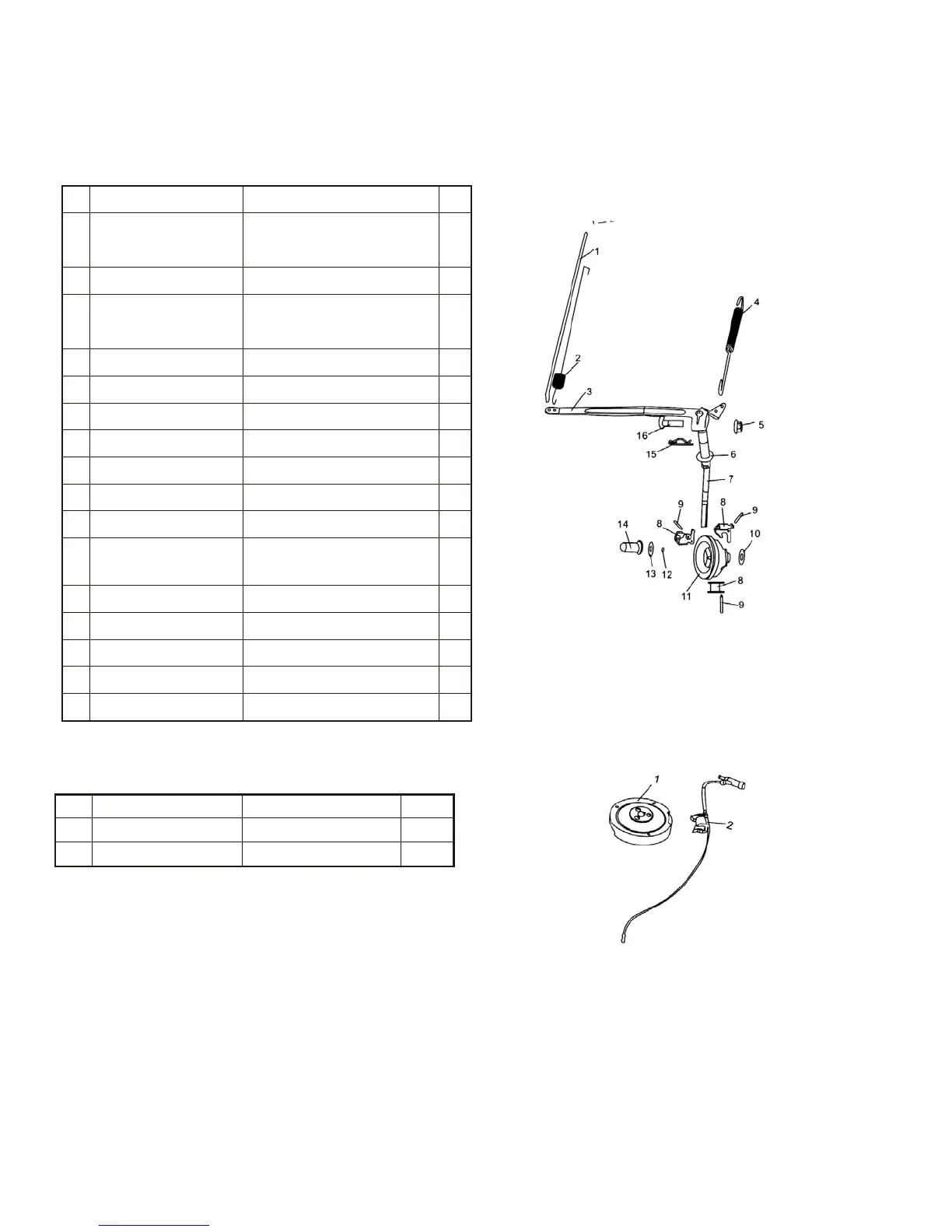

PARTS LIST AND DIAGRAMS
Centrifugal Timing Implement Assembly
NO
.
PART NO. DESCRIPTION
QTY
1
QJ182QDP.06-09
Pull Pole, steel wire 1
2
QJ182QDP.06-10
Pull spring, little
1
3 QJ182QDP.06-01
Pull Pole, Timing
implement
1
4
QJ182QDP.06-08
Pull spring, big
1
5
GB/T6177-2000 Nut M6 1
6
QJ182QDP.06-05
Washer 1
7
QJ182QDP.06-04
Fork 1
8
QJ182QDP.06-01-03
Governor weight
3
9
QJ182QDP.06-01-02
Governor weight pin
3
10
QJ166QDK.06-07
Washer 1
11
QJ182QDP.06.01-01
Centrifugal
Timing Implement
1
12
QJ166QDK.01-02
Clip
1
13
QJ182QDP.06-07
Washer 1
14
QJ182QDP.06-06
Handspike Cover
1
15
QJ182QDP.06-02
Clip
1
16
QJ182QDP.06-03
Bolt, Square Toes
1
NO.
PART NO.
DESCRIPTION
QTY
1
QJ182FPH-3.02.01
ROTOR ASSY 1
2
QJ182QDP.07.01
high voltage wrap
1
Inflame Assembly
