PARTS LIST AND DIAGRAMS

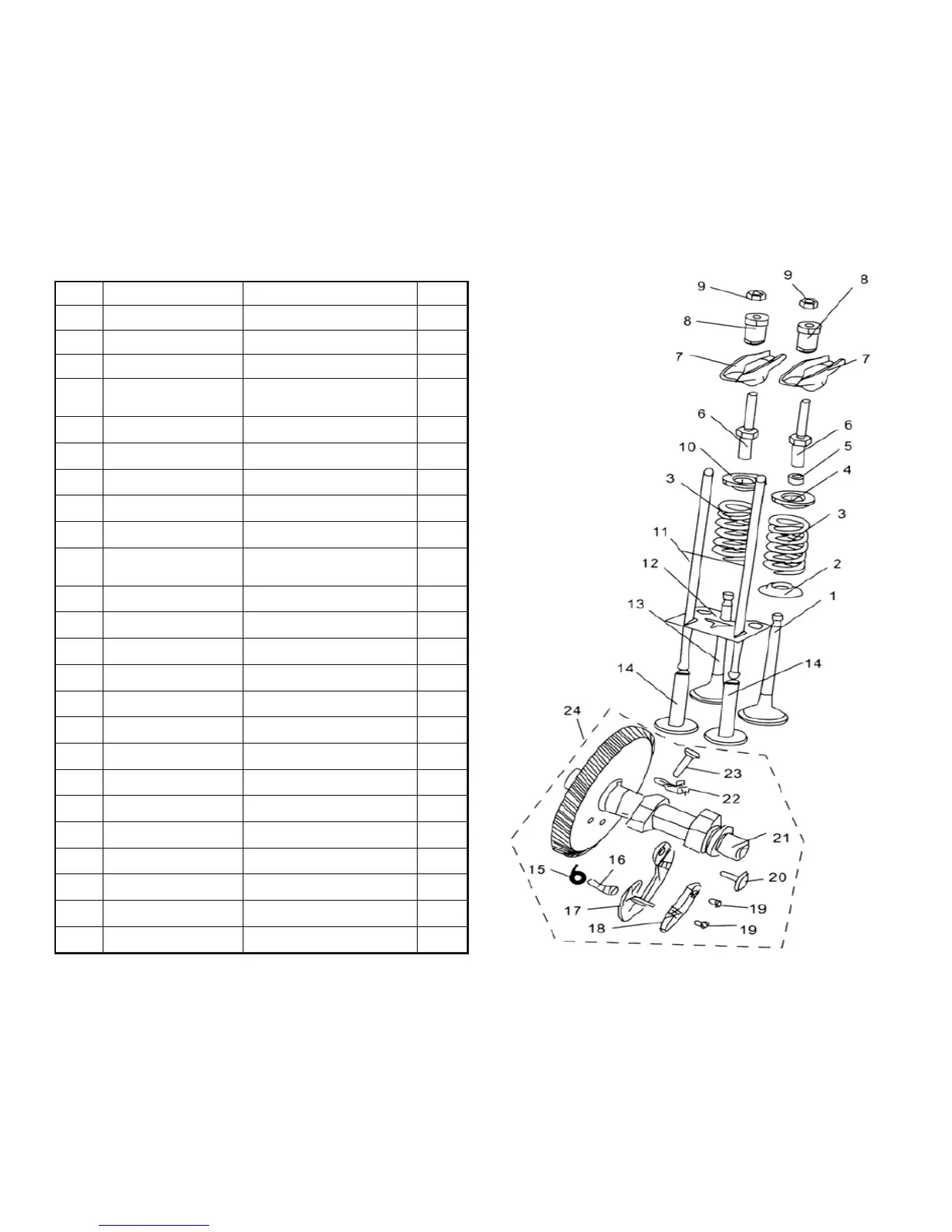

Camshaft Assembly
NO.
PART NO.
DESCRIPTION
QTY
1
JF190FPH.06-02
Exhaust valve
1
2
QJ182QDP.03-11
Lower retainer
1
3
QJ182QDP.03-05
Valve spring
2
4 QJ182QDP.03-08
Exhaust valve spring retainer
1
5
QJ182QDP.03-09
Valve rotator
1
6 QJ182QDP.03-04 Pivot bolt 2
7 QJ182QDP.03-06
Valve rocker arm
2
8
QJ182QDP.03-07
Rocker arm pivot
2
9
QJ182QDP.03-11
Pivot adjusting nut
2
10
QJ182QDP.03-10
Intake valve spring retainer
1
11 QJ182QDP.03.02 Push rod 2
12 QJ182QDP.03-03
Push rod guide plate
1
13
JF190FPH.06-01
Intake valve
1
14
QJ182QDP.03-01
Valve lifter
2
15
QJ182QDP.03.01-06
Spring
1
16 QJ182QDP.03.01-02 Pin 1
17 QJ182QDP.03.01.01-01
Fly clump
1
18
QJ182QDP.03.01.01-02
Fly clump
1
19 QJ182QDP.03.01.01-03 Pin 2
20
QJ182QDP.03.01-03
Pin
1
21
QJ188FPH.03.01-01
Camshaft
1
22 QJ182QDP.03.01-04
Decompress clump
1
23 QJ182QDP.03.01-05 Pin 1
24 QJ188FPH.03.01
Camshaft comp.
1
