Smarter tools ST-GP6500 - Intake Assembly; Choke Assembly

GP Series
31
©2014 Smarter Tools, Inc. All Rights Reserved

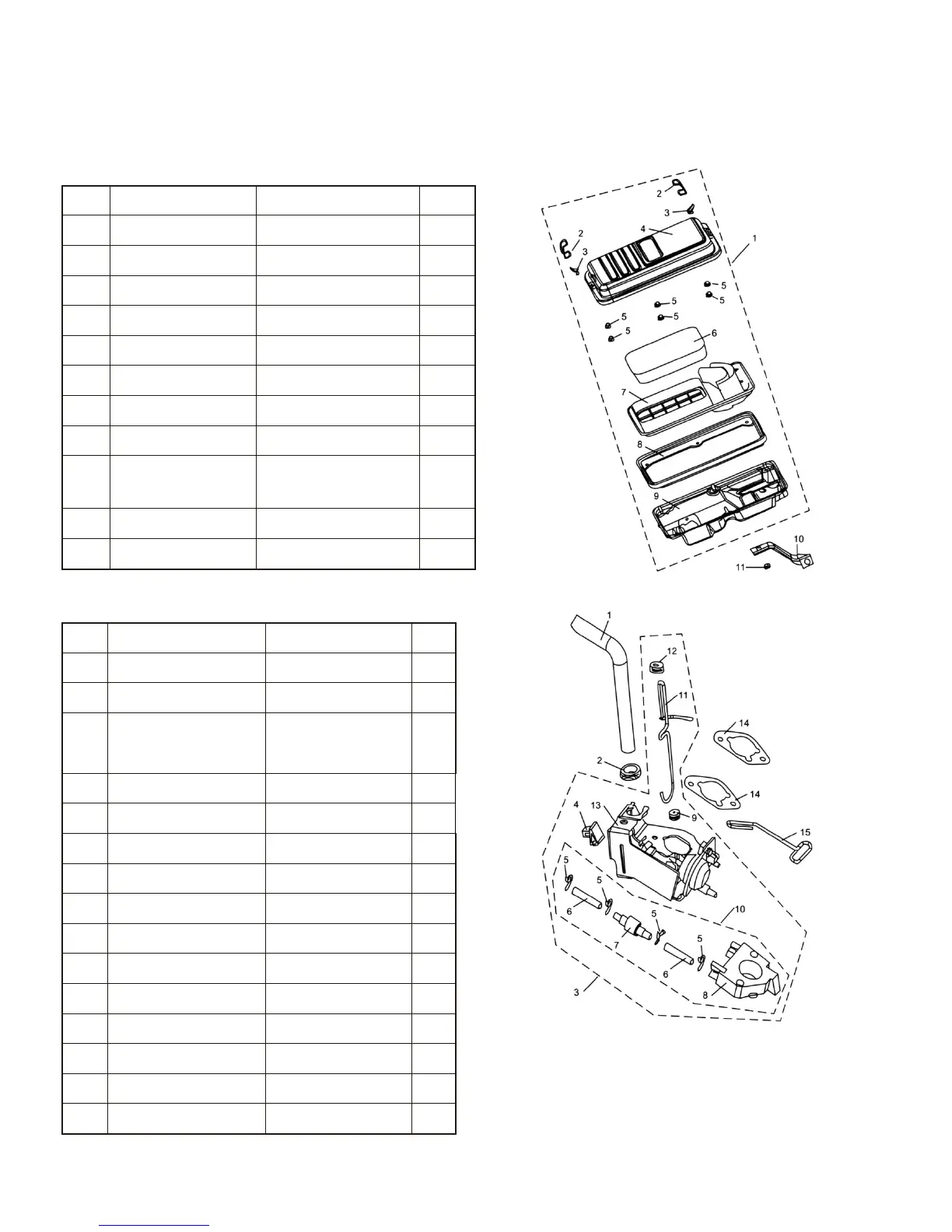

PARTS LIST AND DIAGRAMS
Intake Assembly
Choke Assembly
NO. PART NO. DESCRIPTION QTY
1
QJ182FPH-15.04B
Air Cleaner Assy
1
2
QJ182QDP.11-6
Clip, Fixup
2
3 QJ182QDP.11-7
Clip, Fixup
2
4
QJ182fph-15.04-01
Air Cleaner Cover 1
5
GB/T6177-2000
NUT M5 6
6
QJ182QDP.11-9
Core, Filtrate
1
7
QJ182QDP.11-3
Hole Board 1
8 QJ182QDP.11-4
Seal Gasket,
1
9 QJ182QDP.11-5
Below Shell, Air Cleaner
1
10 QJ182FPH-2.01.02 Air Cleaner Support
1
11 GB/T6177-2000
NUT M6
1
NO. PART NO. DESCRIPTION
QTY
1
QJ182QDP.02.02-03 Breath Tube
1
2
QJ182QDP.02.02-04
Rubber galosh
1
3 QJ182QDP.10.02
Complete Choke
Assy.
1
4 QJ182QDP.10.02-03 Clip 1
5 QJ182QDP.10.02.01-01 Clip 4
6 QJ182QDP.10.02.01-02 Hose 4x 8x135 2
7 QJ182QDP.10.02.01.01 Valve 1
8 QJ188FPH.02-08 Bakelite Washer 1
9 QJ182QDP.10.02-04 Rubber galosh 1
10 QJ182QDP.10.02.01 Valve Assy 1
11 QJ182QDP.10.02-01 Choke valve Pull pole 1
12 QJ182QDP.10.02-02 Rubber galosh 1
13 QJ182QDP.10.02.02 Breath body Assy 1
14 QJ182QDP.11-1 Air cleaner Packing 2
15 QJ182FPH-2.07-01 Pull pole 1
