NO. PART NO. DESCRIPTION
QTY
1 GB/T5787-86 Bolt M5*12 7
2
QJ6500.03-04
Right Cover
1
3 QJ9000.03.03 AVR 1
4 GB/T5780-2000 Bolt M5*20 3
5
QJ6500.03-03
Connector 1
6 GB/T5789-86 Bolt M5*12 1
7
QJ2500.03-04
Rectifier KBPC2506 1
8 GB/T5789-86 Bolt M10*275*1.25 1
9
QJ6000.03.01
Brush Equipment 1
10
QJ6000.03-02
Motor Shell 1
11
QJ9000.03.01
Rotor Assy
1
12
QJ9000.03-01
Motor cover 1
13
QJ6000.03.03.01
BEARING, needle
1
14
QJ6000.03.03-06
Carbon Brush Ring 1
15
QJ9000.03.02
Stator 1
16
QJ6000.03.03-01
Impeller
1
17 GB/T95-2002 Washer 3
18 GB/T93-87
Spring Washer
3
19 GB/T818-2000 Bolt M5*12 3
20
GB/T5789-86 Bolt M6*185
4
NO. PART NO. DESCRIPTION
QTY
1
KE6600.01.01
Fuel Tank Comp
1
2
QJ950.01-02
Filtering Net
1
3
QJ6000.01.04
Sump Cover
Subassembly
4
4 GB/T819-2000 Screw M5*10 2
5
QJ6000.01.03
Sender Unit 1
6 GB/T5789-86 Bolt M6*20 4
7 GB/T96.1-2002 Washer 4
8
QJ2600.01-02
Fuel Tank Rubber Hose 4
9
QJ2600.01-01
Fuel Tank Rubber 4
10
QJ6000.01.02
Fuel Valve 1

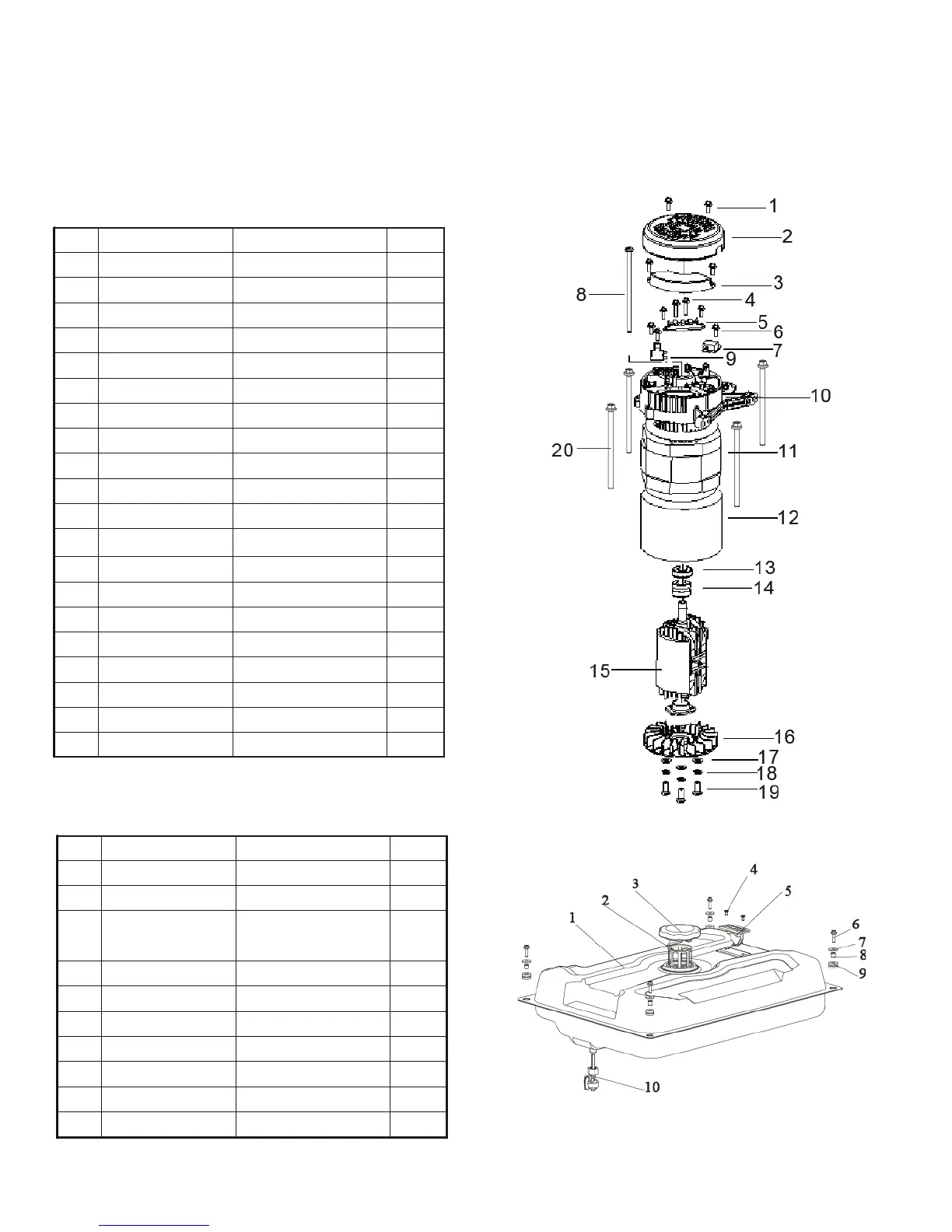

PARTS LIST AND DIAGRAMS
Generator
Gas Tank Assembly
