Smarter tools ST-GP6500 - Control Panel Assembly; Muffler

GP Series
33
©2014 Smarter Tools, Inc. All Rights Reserved

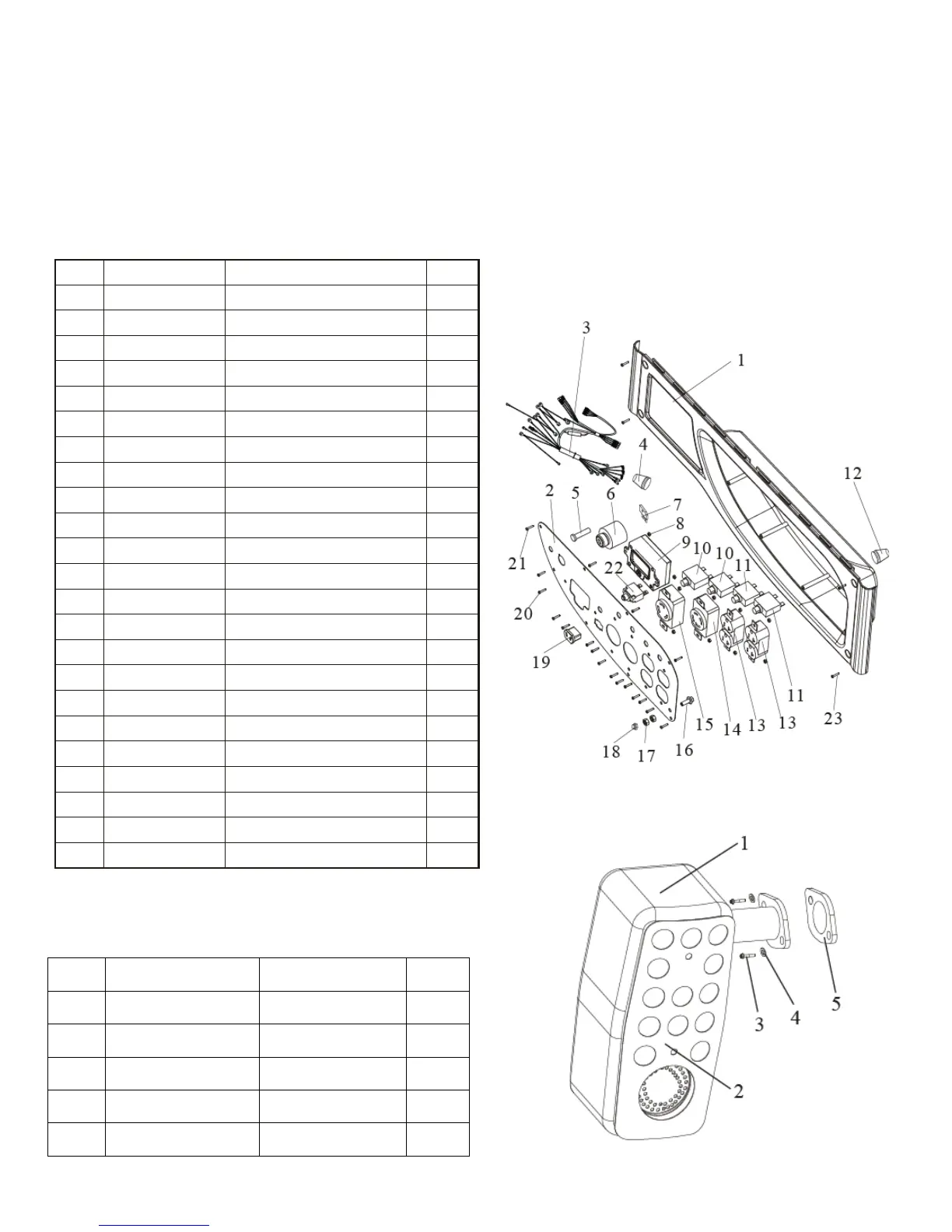

PARTS LIST AND DIAGRAMS
Control Panel Assembly
Muffler
NO PART NO. DESCRIPTION QTY
1 QJ7500.07.01 Muffler 1
2 QJ6800.05-01 Muffler Cover 1
3 CODE Cap Screw 2
4 GB/T93-87 Spring Washer 2
5 QJ6000.07-02 Muffler Washer 1
NO. PART NO DESCRIPTION QTY.
1 KE6600.02.01 Bottom Shell 1
2 KE9000E.02.03A Panel 1
3 KE9000E.02.02A Cable 1
4 QJ6000.02-04 Bellows 1
5 QJ2600.02.03 Oil Light 1
6 QJ6500B.02.02 Engine Switch 1
7 QJ6500.02.09 Rectifier Assy. 4A 1
8 GB/T6177-2000 Nut M4 10
9 KE9000E.02.04 Multi. Digital Meter 1
10 QJ3500.02.03A Circuit Breaker 25A 2
11 QJ3200TB.01.05 Circuit Breaker 20A 2
12 QJ6500.02-02 Flared Sheath 1
13 QJ3200.01.04 Double Socket 2
14 QJ6500D.01.02 4-Pole Socket 1
15 QJ6500D.01.05 3-Pole Socket 1
16 GB/T5787-86 Bolt M6*16 1
17 GB/T6170-2000 Nut M6 2
18 GB/T923-85 Nut M6 1
19 QJ900.05.03 V Socket 1
20 GB/T818-2000 Screw M4*12 10
21 GB/T845-1985 Screw ST4X10 8
22 QJ6500.02.05 DC Protector 1
23 GB/T818-2000 Screw M6*14 4
