Controls and Features (cont’d)
_________________________________________________________________________________________________

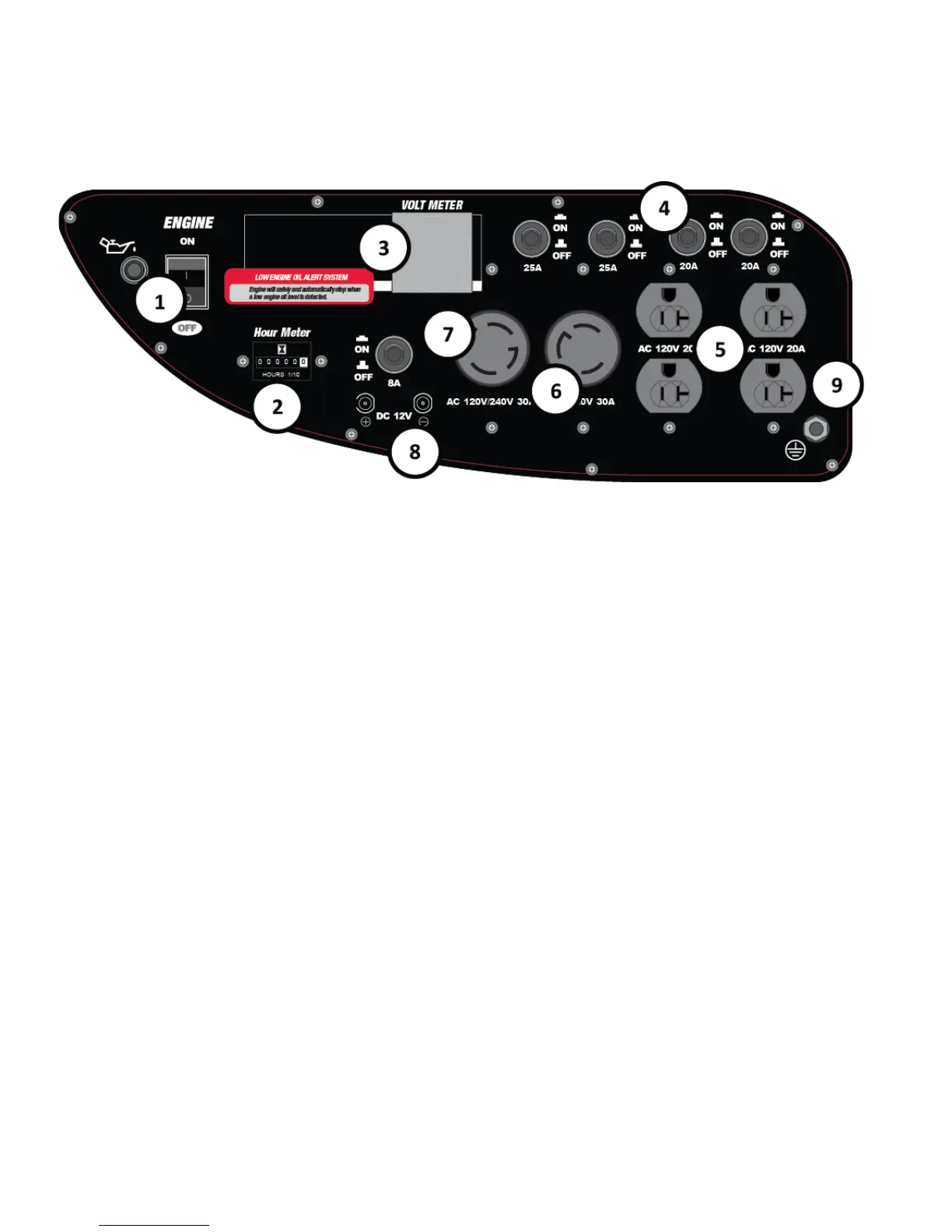

Control Panel
1. Engine Switch – Used to turn on and off the
engine.
2. Hour Meter – Displays the number of hours the
engine has run.
3. Volt Meter – Measures and displays the voltage
output of the generator.
4. Circuit Breakers – Protects the generator
against electrical overload.
5. 120V 20A Duplex – This duplex is protected by
a 20A circuit breaker. Use this duplex to operate
120 volt AC, single phase, 60 Hz loads requiring
up to 20 A or 2400 Watts of power.
6. 120V 30A Twist-Lock (L5-30R) – This
receptacle powers 120 Volt AC, 60 Hz, single
phase loads requiring up to 25A or 3000 Watts
of power.
7. 120/240V 30A Twist-Lock (L14-30R)– This
receptacle powers 120 Volt AC, 60 Hz, single
phase loads requiring up to 25A or 3000 Watts
of power or 240 Volt AC, 60Hz, single phase
loads requiring up to 22.9A or 5500 Watts of
power .
8. 12V DC Connector – Used to charge 12V DC
batteries.
9. Ground Terminal – Consult an electrician for
local grounding regulations.
