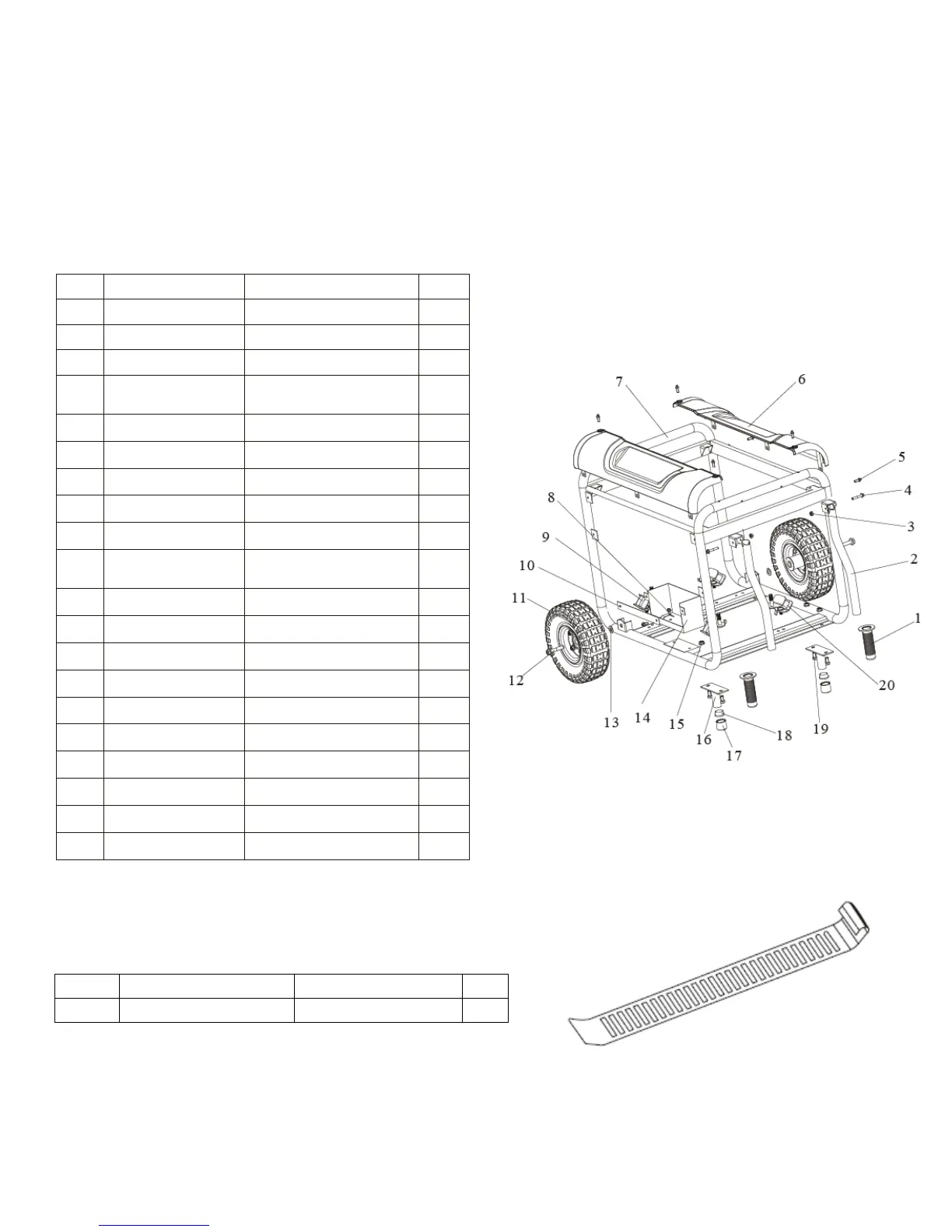

Smarter tools ST-GP6500 - Frame Assembly

GP Series
34
©2014 Smarter Tools, Inc. All Rights Reserved
NO. PART NO. DESCRIPTION
QTY
1
QJ125T-3B
Handle grip 2
2
QJ6500D.04-01A
Handle 2
3
GB/T6177-2000
Nut M6 2
4
GB/T5789-1986 Bolt M6*40
2
5 GB/T5789-1986 Bolt M6*10 8
6 KE6600.01.05A
Fuel Tank Protecting Plate
2
7 KE9000E.06.01
Frame Jointing Assy
1
8 GB/T5789-1986 Bolt M6*12 2
9
QJ6000.08.03
Shockproof Small Mounting Feet
2
10
KE3500DE.04.02B
Battery strap
1
11 KE9000E.09.01 Rubber Wheels 2
12 KE9000E.09-01 Wheel Axle Bolt M12*90 2
13 GB/T95-2002 Washer 13 2
14
QJ6500B.02.02
Battery Box
1
15 GB/T6177-2000 Nut M8 4
16 KE7500E.04.01 Crutch 2
17 QJ6800.06-01 Crutch Jacket 2
18 QJ3200TB.02-01 End Cap 2
19 GB/T5780-2000 Bolt M8*16 4
20
QJ6000.08.02
Shockproof Big Mounting Feet
2
PARTS LIST AND DIAGRAMS
Frame Assembly
Motor Shield
No Part No. Item QTY
1 QJ6500.03-05 Motor Shield 1
