PARTS LIST AND DIAGRAMS

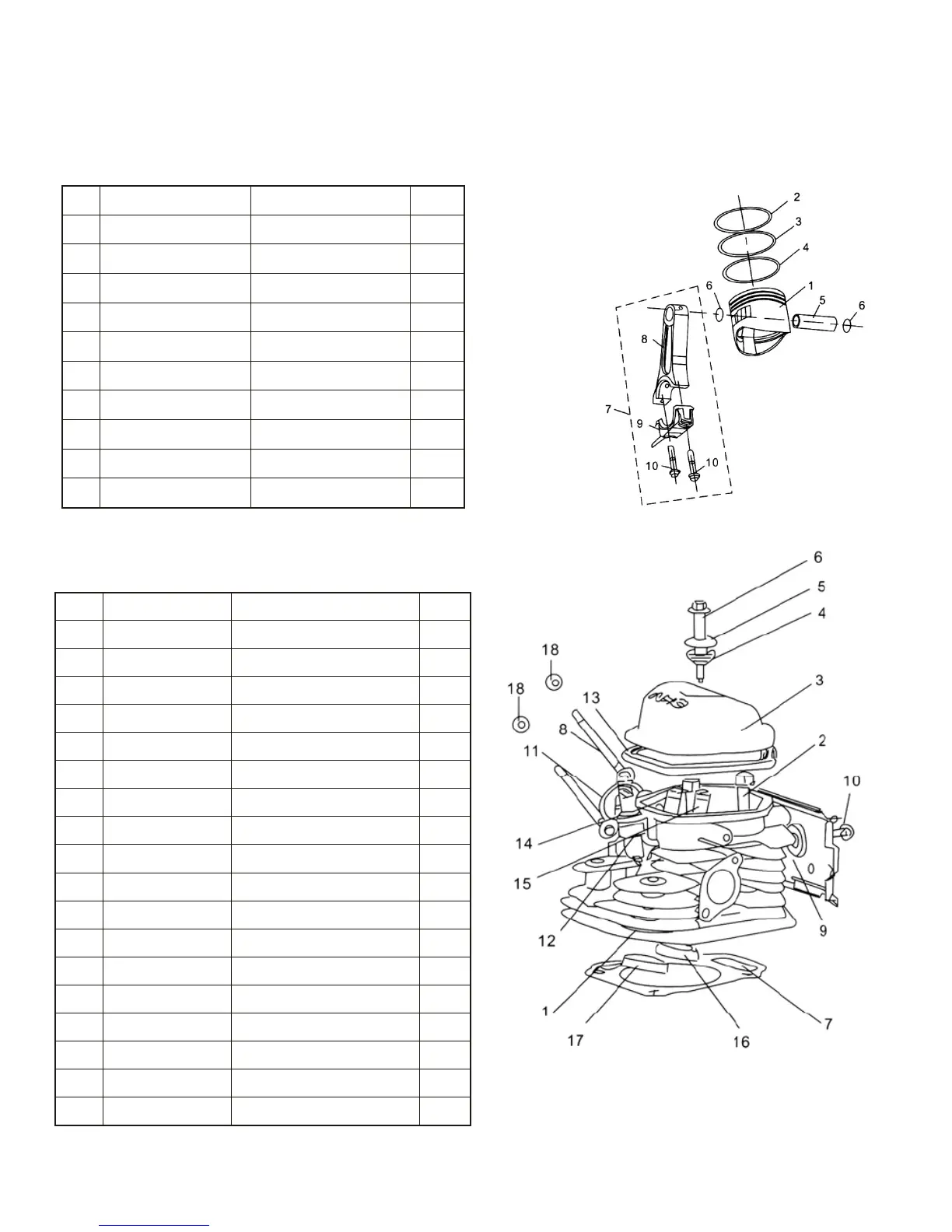

Crankshaft Assembly & Piston
NO. PART NO. DESCRIPTION
QTY
1
JF190FPH.03-01
PISTON 1
2
JF190FPH.03.01-01
RING 1ST 1
3
JF190FPH.03.01-02
RING 2ND 1
4
JF190FPH.03.01.01
RING SET OIL 1
5 QJ188FPH.04-04
PIN, PISTON
1
6
QJ182QDP.05-05
CIRCLIP 2
7
JF190FPH-2.03.02
CONNECTING ROD ASSY 1
8
JF190FPH-2.03.02-01
CONNECTING ROD 1
9
QJ182QDP.05-02-02
CONNECTIONG ROD CAP 1
10
QJ182QDP.05-02-03
CONNECTING ROD BOLT 2
NO. PART NO. DESCRIPTION
QTY
1 JF190FPH.02.01
Cylinder Head Assy
1
2 QJ182QDP.02-01
Bolt, Cylinder Head
4
3
JF182FPH-15.02.01
Cover Assy
1
4 QJ182QDP.02-03
Spacer, Seal
1
5
QJ182QDP.02-04
Clamp
1
6
QJ182QDP.02-02
Bolt
1
7
QJ182QDP.02.03
Spacer Assy
1
8 QJ182QDP.02-05
Bolt, Intake Pipe
2
9
QJ182QDP.02-06
Cowling
1
10 GB/T5787-86 Bolt M6 12 1
11 QJ182QDP.02-07
Spacer, Intake Pipe
1
12
QJ182QDP.02.04
Spark Plug
1
13 QJ182QDP.02.02-02 Washer 1
14 QJ182QDP.02.01-05
Canal, Intake Valve
1
15
QJ182QDP.02.01-03
Canal, Exhaust Valve
1
16 QJ182QDP.02.01-04
Ring, Exhaust Valve
1
17 QJ182QDP.02.01-04
Ring, Intake Valve
1
18 GB/T6177-2000 Nut M6 2
Cylinder Head Assembly
