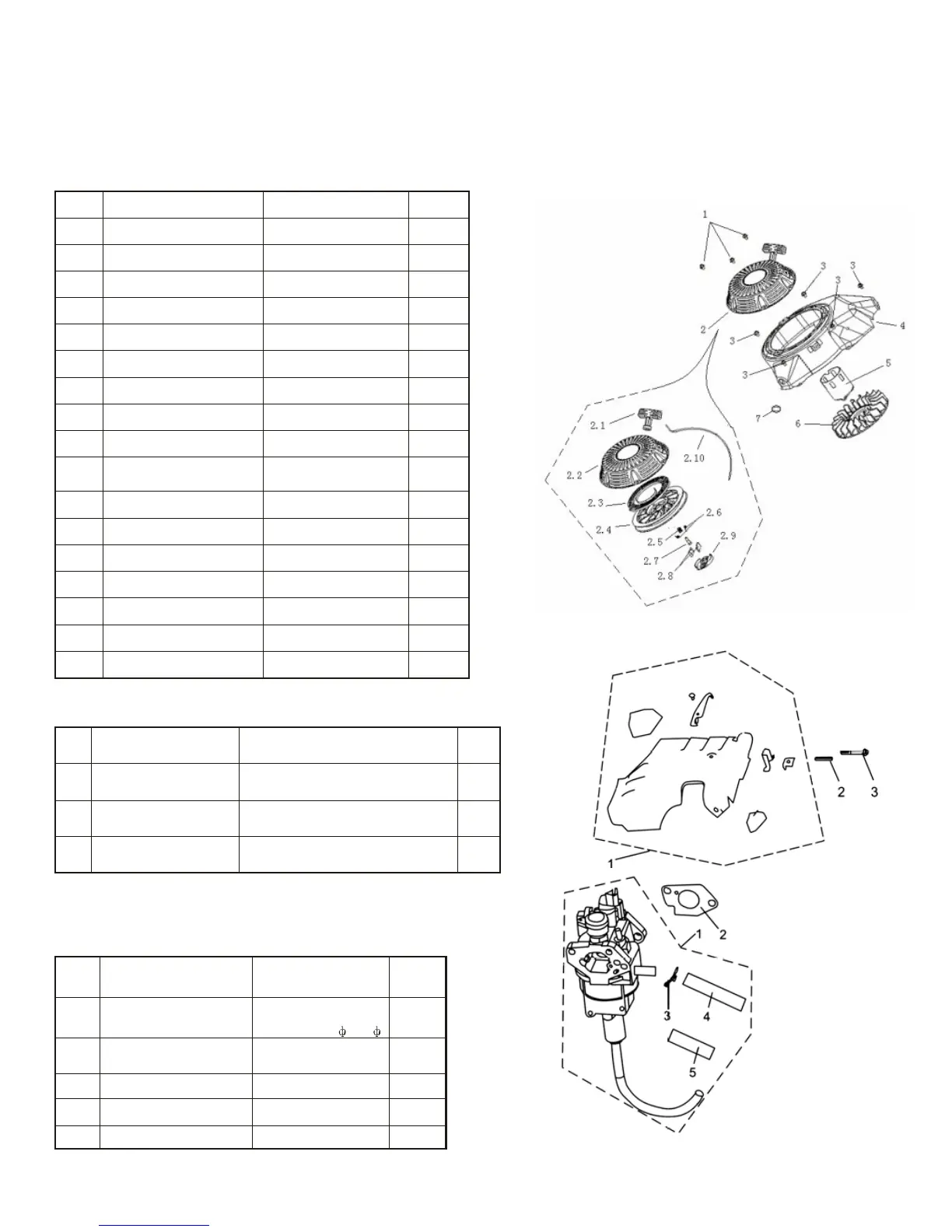

PARTS LIST AND DIAGRAMS
Starter Assembly
NO.
PART NO.
DESCRIPTION
QTY
1
GB/T5789-86
Bolt M6 x 8
3
2
QJ182QDP.08.02
Starter Cover Assy.
1
2.1 QJ168FJH.06.01.02C
Handle Assy.
1
2.2
QJ182FPH-15.03.01B
Starter Cover Assy
1
2.3 QJ182QDP.08.01-09
Clockwork Spring
1
2.4
QJ182QDP.08.01-03
Rotary Table
1
2.5 QJ182QDP.08.01-06 Press Reed 1
2.6
QJ182QDP.08.01-05
Spring, Return
2
2.7 QJ182QDP.08.01-07
Screw 1
2.8
QJ182QDP.08.01-04
Clump
2
2.9
QJ182QDP.08.01-08
Guide Pan 1
2.10
QJ182QDP.08.01-11B
Pull Rope
1
3
GB/T5789-86
Bolt M6 x12
5
4
QJ182QDP.08.01-01
Cowling Assy, cylinder
1
5
QJ182QDP.08-01
Starter Canister 1
6 QJ182QDP.08-02 Fan Wheel 1
7
QJ182FPH-2.03-01
Rubber Plug 1
NO. PART NO. DESCRIPTION QTY
1 QJ182QDP.09
Speed adjustment base assembly
1
2
QJ168QDJ.05.01-02
Spring
1
3 GB/T818-2000 ScrewM5x35 1
NO. PART NO. DESCRIPTION
QTY
1
JF190FPH-2.04.01
Carburetor Assy
1
2
QJ188FPH.05-01
Carburetor Gasket
1
3
QJ153FM-0000041
Clip
2
4
QJ182QDP.10-02
Hose 4.5x 8.5x190
1
5
QJ182QDP.08.01-02
Cable Clamp
2
Engine Sprocket Cover
Carburetor Assembly
