HGM6100K Series Automatic Generator Module ISSUE 2011-04-12 Version 1.6 Page 12 of 31

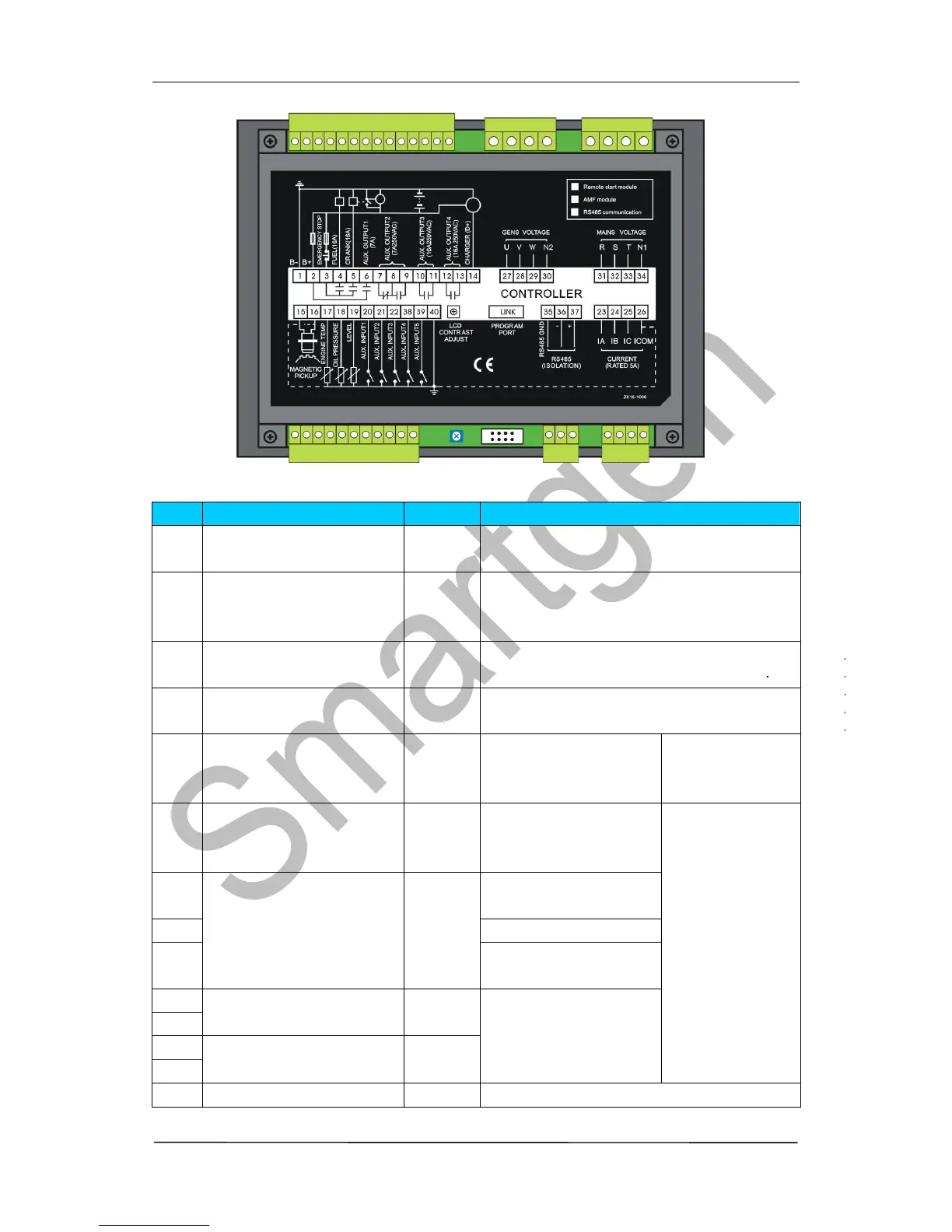

Description of terminal blocks connection
Pin
Function
Dim
Description
1
DC Plant Supply input
(-ve)
2.5mm
System DC negative input. (Battery
Negative).
2
DC Plant Supply input
(+ve)
2.5mm
System DC positive input. (Battery
Positive). (Recommended Maximum
Fuse 20A)
3
Emergency stop input
2.5mm
Plant Supply +ve. Also supplies fuel &
start outputs.
4
Fuel relay output
1.5mm
Plant Supply +ve from pin 3.
16 Amp rated.
5
Start relay output
1.5mm
Plant supply +ve
from pin 3. 16 Amp
rated.
Connect to
starter starting
coil
6
Auxiliary relay output 1
1.5mm
Plant Supply +ve
from pin 2. 7 Amp
rated.
Reference
table 2
7
Auxiliary relay output 2
1.5mm
Closed output, 7
Amp rated.
8
Relay common point
9
Open output,7 Amp
rated.
10
Auxiliary relay output 3
2.5mm
Free volt contacts.
16 Amp rated
11
12
Auxiliary relay output 4
2.5mm
13
14
Charge Gens D+ port
1.0mm
Do not connect to ground (battery –ve)
