4 OPERATION
4.1 PUSHBUTTONS
Table 4 Keys Description
Icon
Definition
Explain
Stop/-
Stop the running genset.
In stop status, press it to stop generator immediately.
In stop status, press it to reset any shutdown alarm.
In stop status, press it for more than 2s to test if the nixie tube and panel
indicator are normal.
In setting menu, upturn or decrease parameter value (it can be
double-clicked).
In setting menu, press it for more than 3s to exit this menu.
Page/Confirm
Switch display contents of nixie tube in normal status.
Pressing it for more than 3 seconds entry the parameter configuration
menu.
In setting menu, press this button to modify and save value.
Run/+
Manual start in stop status.
In setting menu, downturn or increase parameter value (it can be
double-clicked).
4.2 CONTROL PANEL AND ICON DECRIPTION
4.2.1 CONTROLLER PANEL

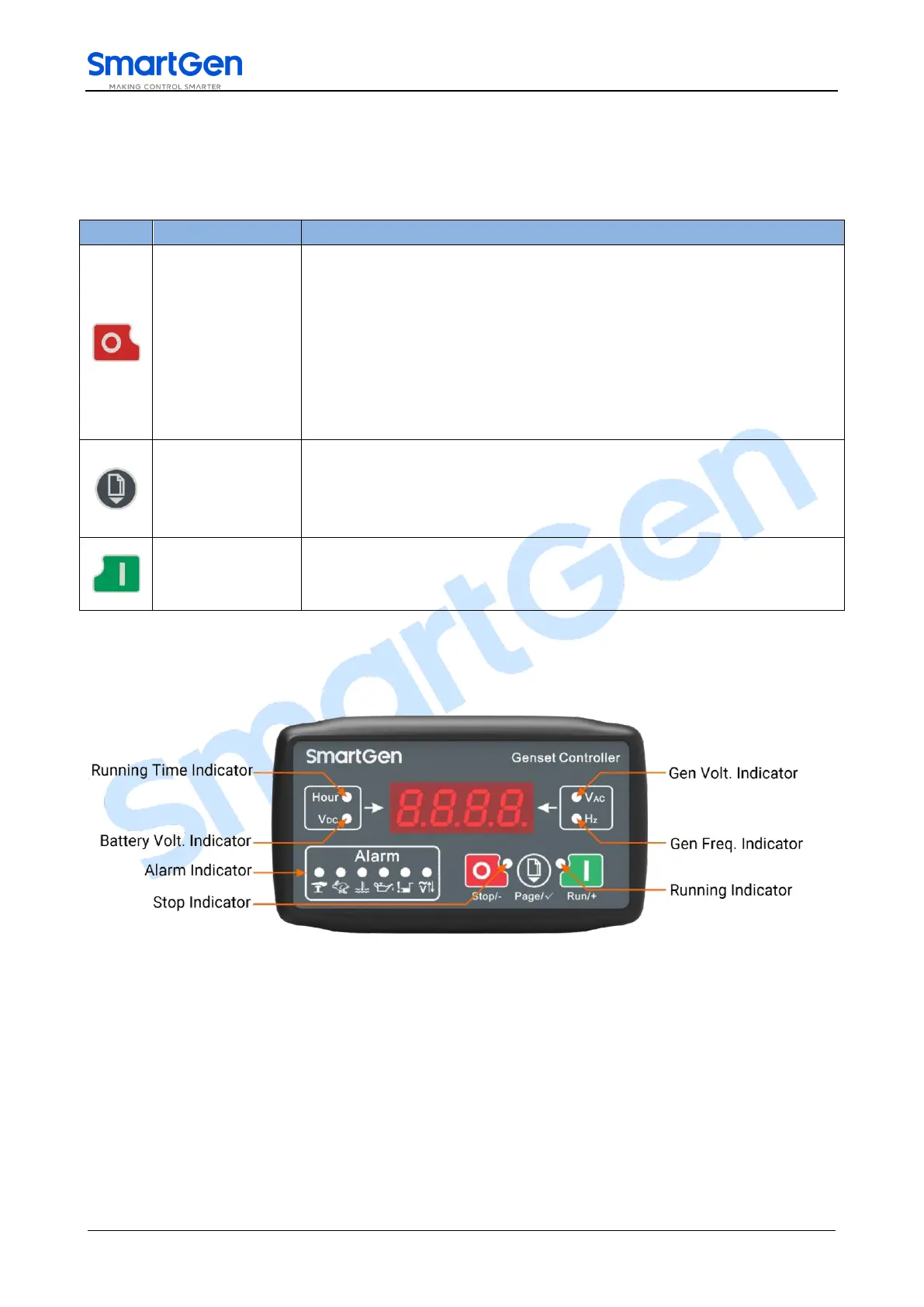

Fig.1 Controller Panel
