FAS-201 BASE FEEDING/VERIFICATION MODULE

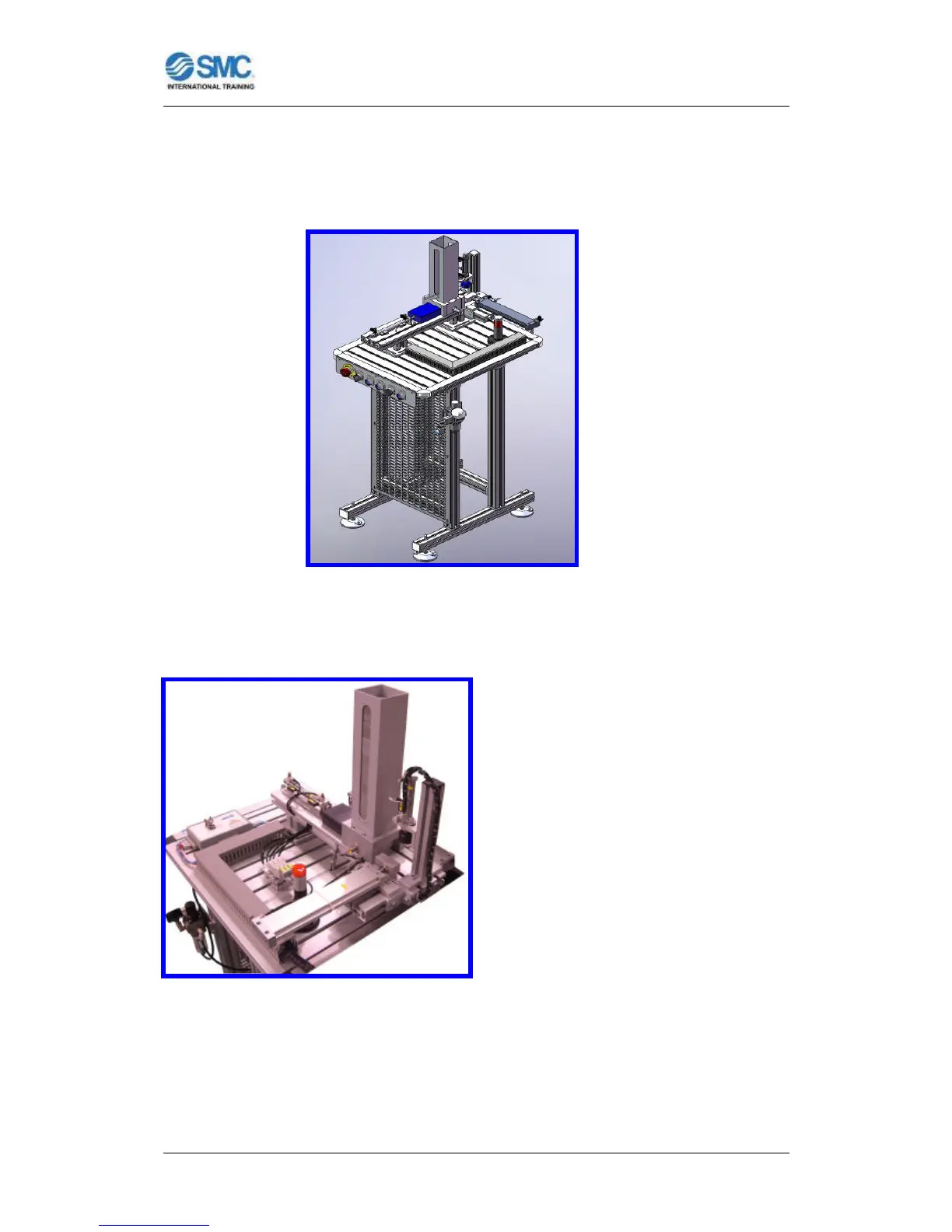

Figure 20: FAS201 Base Feeding/Verification Module.
FUNCTION OF THE MODULE:
This first module feeds the body or
base which is the support for the
turning mechanism, verifies its
orientation and moves it to the final
position (loading position) located in
the transfer system of the next
module.
Figure 21: Manipulators of the first module.
This operation begins when the pallet is positioned opposite the second
module, held in a determined location by a stopper on the linear transfer.
Confirmation that the pallet is in the correct position is provided by a
