FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 79 -
FAS-214 TRANSFERING AND VISION INSPECTION MODULE
With a view to matching the system to all the
most widely used sensor techniques in
industrial automation, this module introduces
a new though widespread advanced sensor
technology, that of vision system. For this, a
very used process in the industrial
automation is simulated, as the quality
control by vision system.

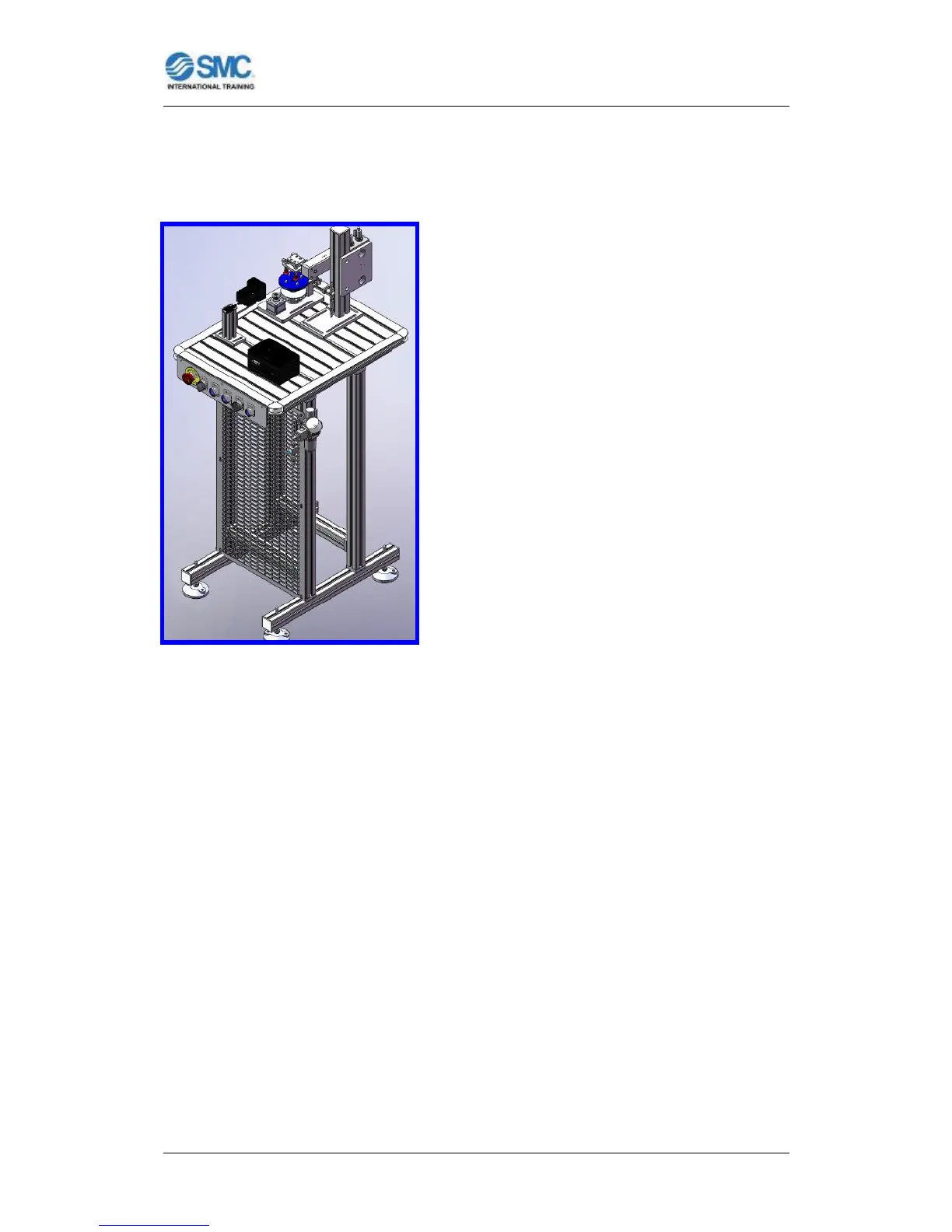

Figure 84: FAS214 Transfering and Vision
Inspection Module.
FUNCTION OF THE MODULE:
At this module, the finished body is moved from the pallet retained at the
transfer to an unloading point on a rotary positioning system inside the module.
The body is rotated to the first of two inspection positions, and a Compact
Colour Machine Vision System confirms the colour and the presence of the
shaft, the height, the colour and the presence of the cover and the presence of
the four screws (with the first inspection only two screws). The system is used
with monitoring purposes, based on an open-loop concept.
Then it rotates to the second inspection position and the vision system confirms
the presence of the remaining two screws. If the inspection results are good, the
body is returned to the pallet retained at the transfer.
