FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 23 -
FAS-202 BASE REJECTING/TRANSFERING MODULE

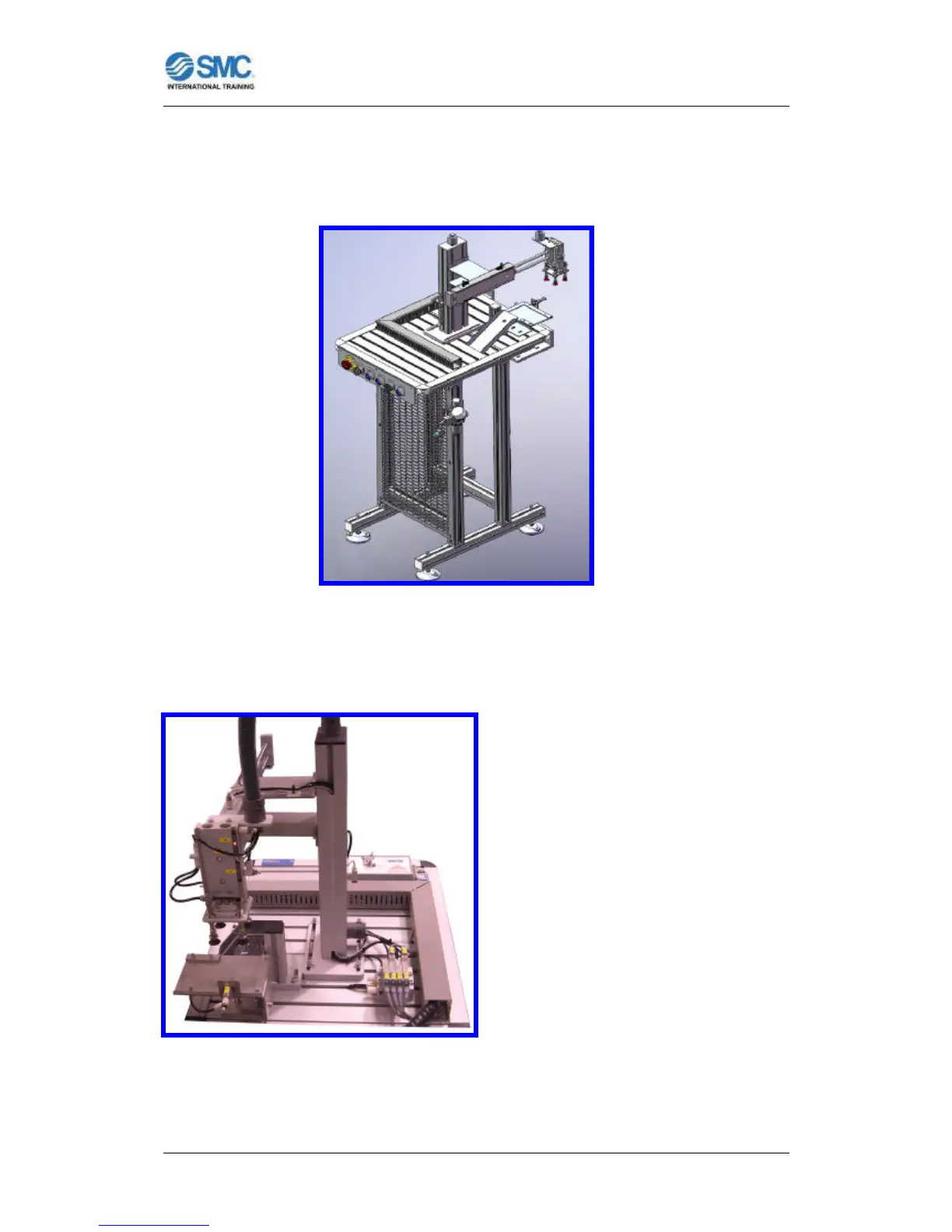

Figure 26: FAS202 Base Rejecting/Transfering Module.
FUNCTION OF THE MODULE:
This second module is
complementary to previous one. This
module rejects of incorrect body or
places the body on the pallet,
depending of the signal “body OK”
from the PLC of the preceding
module after verification of the base
orientation.
Figure 27: Manipulators of the second
module.
