FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 13 -
FAS-230 LINEAR TRANSFER MODULE: TRANSPORT SYSTEM

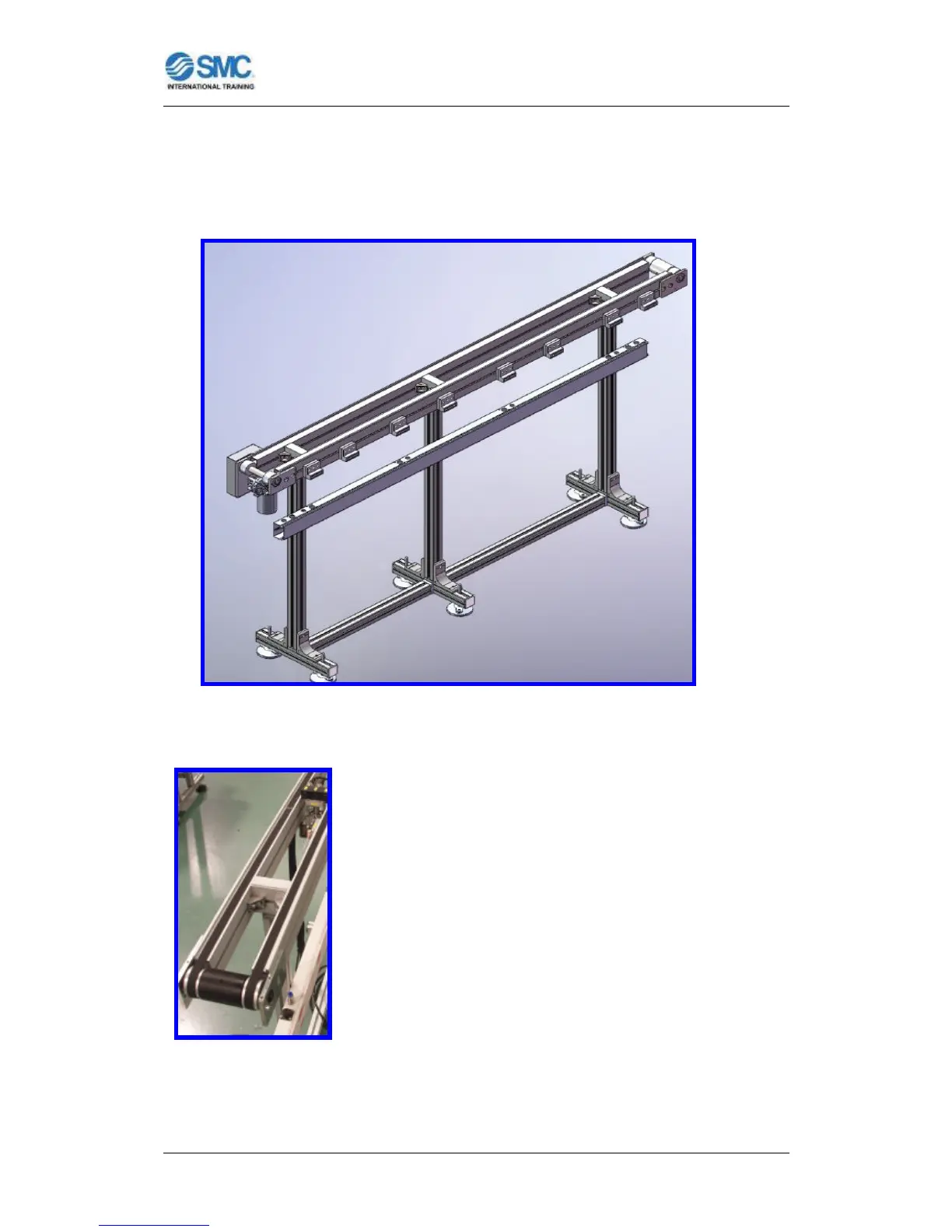

Figure 13: FAS230 Linear Transfer Module.
The transport system is composed by 2 meters long
lines admitting up to four modules each (2`9 meters long
lines admitting up to six modules each for special case)
which links the modules to facilitate the envisaged
assembly process.
Figure 14: Transport system.
