FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 12 -
The front of each station incorporates the start, stop, step-by-
step/continuous cycle and reset pushbuttons. In addition, the control
pushbuttons incorporate a main switch on/off and emergency pushbuttons for
emergency stops.

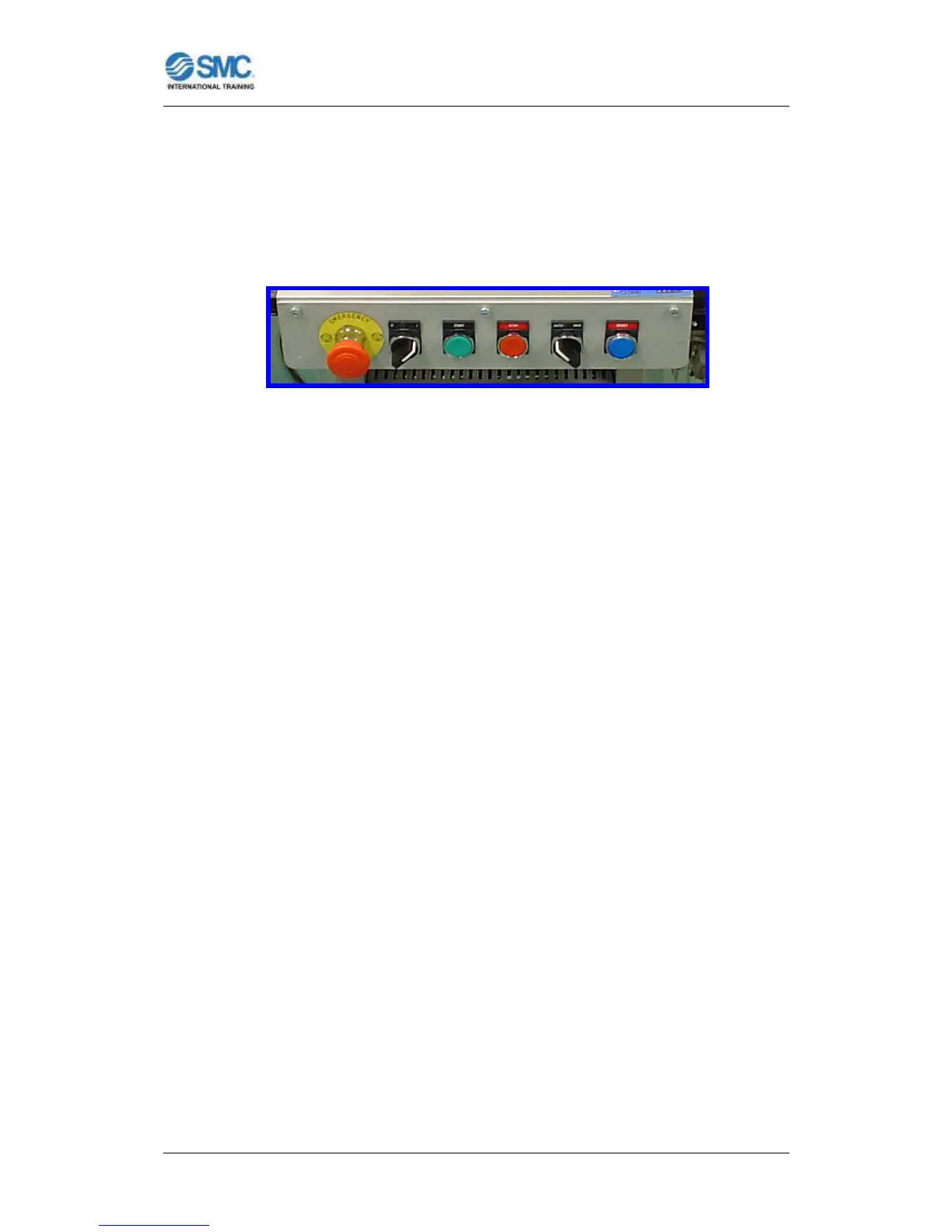

Figure 12: Control pushbuttons of a module.
The system is modular and may be extended, allowing future incorporation of
other process modules according to user needs.
The modules are mounted on aluminum sections, forming tables with a large
surface area and multiple slots to allow all types of extension and modification.
The assembly process performed (turning mechanism) is as follows:
Process A: Feed body or base to which the other parts are assembled and
verification of its orientation.
Process B: Pick and Place bearing and measurement of its height.
Process C: Press bearing in hydraulically.
Process D: Pick and Place shaft and verification of its orientation and material.
Process E: Pick and Place cover and verification of its orientation, material and
color.
Process F: Fit screws.
Process G: Robot screw driving.
Process H: Quality control by artificial vision.
Process I: Unloading, storage and palletization of final assembly
In addition to transport processes between modules or between linear
conveyors.
