FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 87 -
FAS-216 WAREHOUSE MODULE

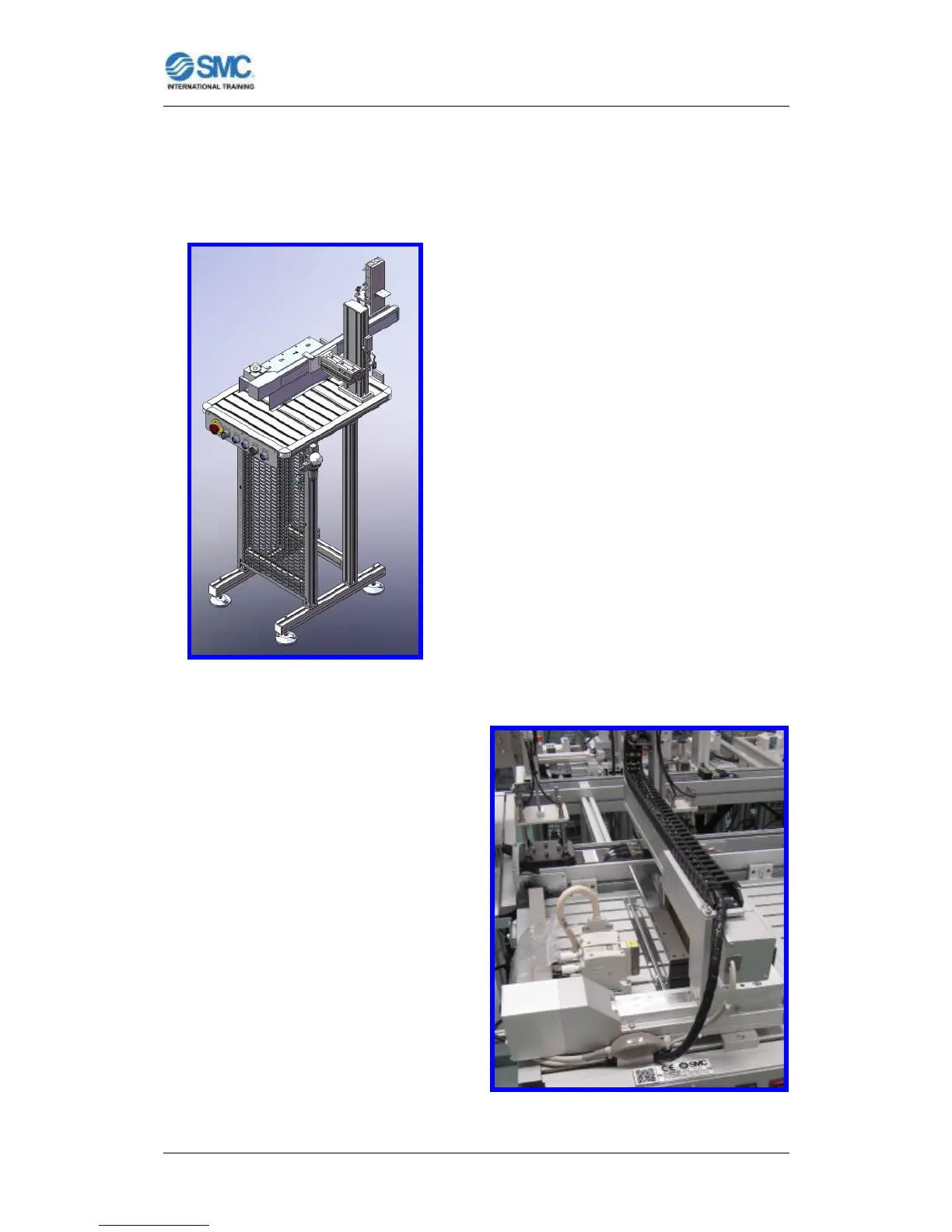

Figure 90: FAS216 Warehouse
Module.
FUNCTION OF THE MODULE:
Once the final assembly is completed, it
must be removed from the transport
system.
This storage uses a system based on
two coordinate axes, so that the bodies
(with bearings, shafts, covers and
screws) picked off the conveyor belt
may be allocated at any point on the
surface of the module.
Figure 91: Manipulators of the
storage module.
