FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 84 -
FAS-215 AFTER VISUAL INSPECTION REJECTING MODULE

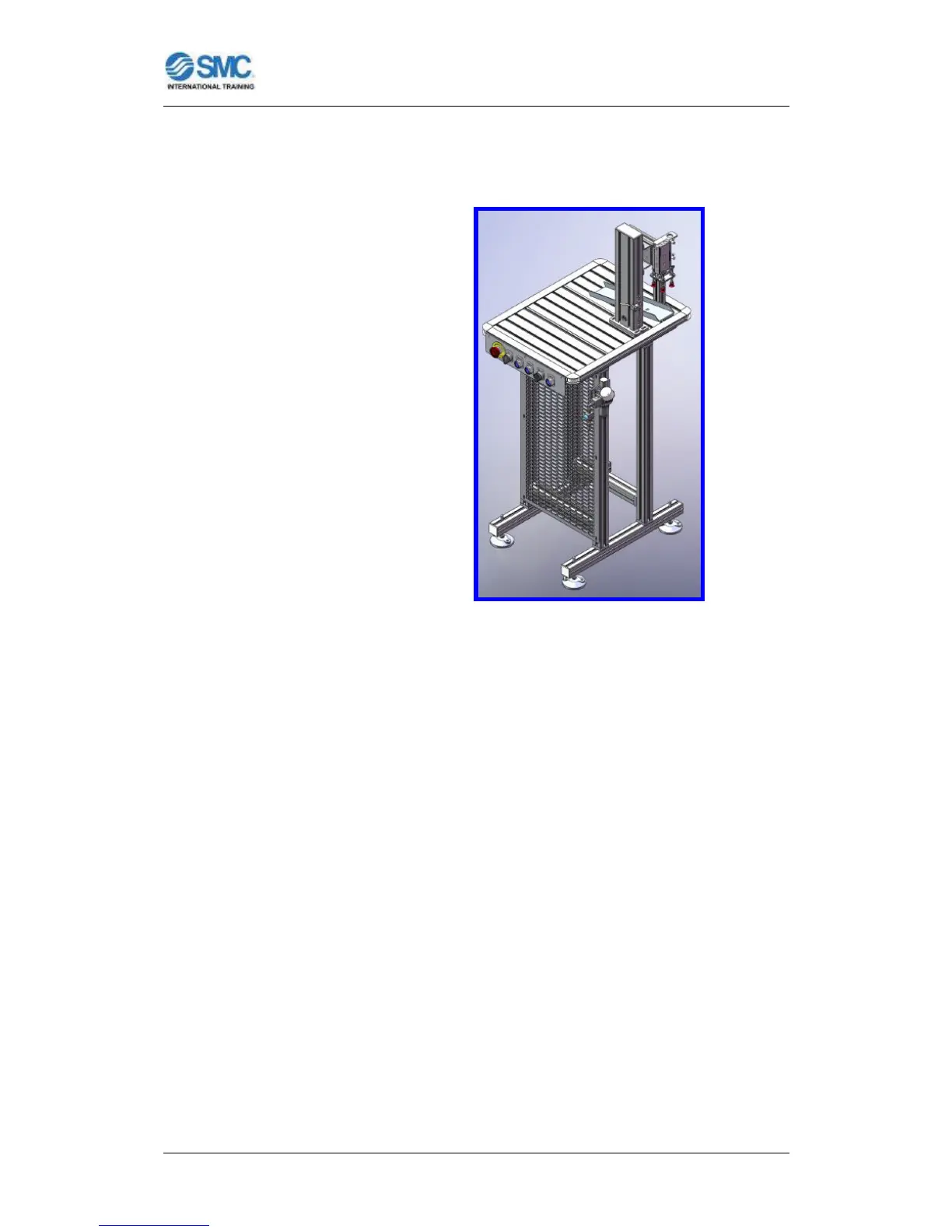

Figure 88: FAS215 After Visual Inspection
Rejecting Module.
FUNCTION OF THE MODULE:
This module is complementary to previous one. This module rejects the turning
mechanism or places it on the pallet that is waiting on the transfer system,
depending of the signal about the vision inspection system from the PLC of the
previous module.
This module, after the checking of all the components of the assembly
developed by the previous one according to the pattern, will reject the assembly
to a ramp if they are not correct. The inspection operation is developed by the
previous module.
If the inspection results are not good, the turning mechanism with all its
components is removed from the rotary table (in the previous module) and
placed in a scrap location (rejecting ramp) at this module.
