SMC Networks FAS-200 User Manual

FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 51 -
FAS-208 SHAFT REJECTING/TRANSFERING MODULE

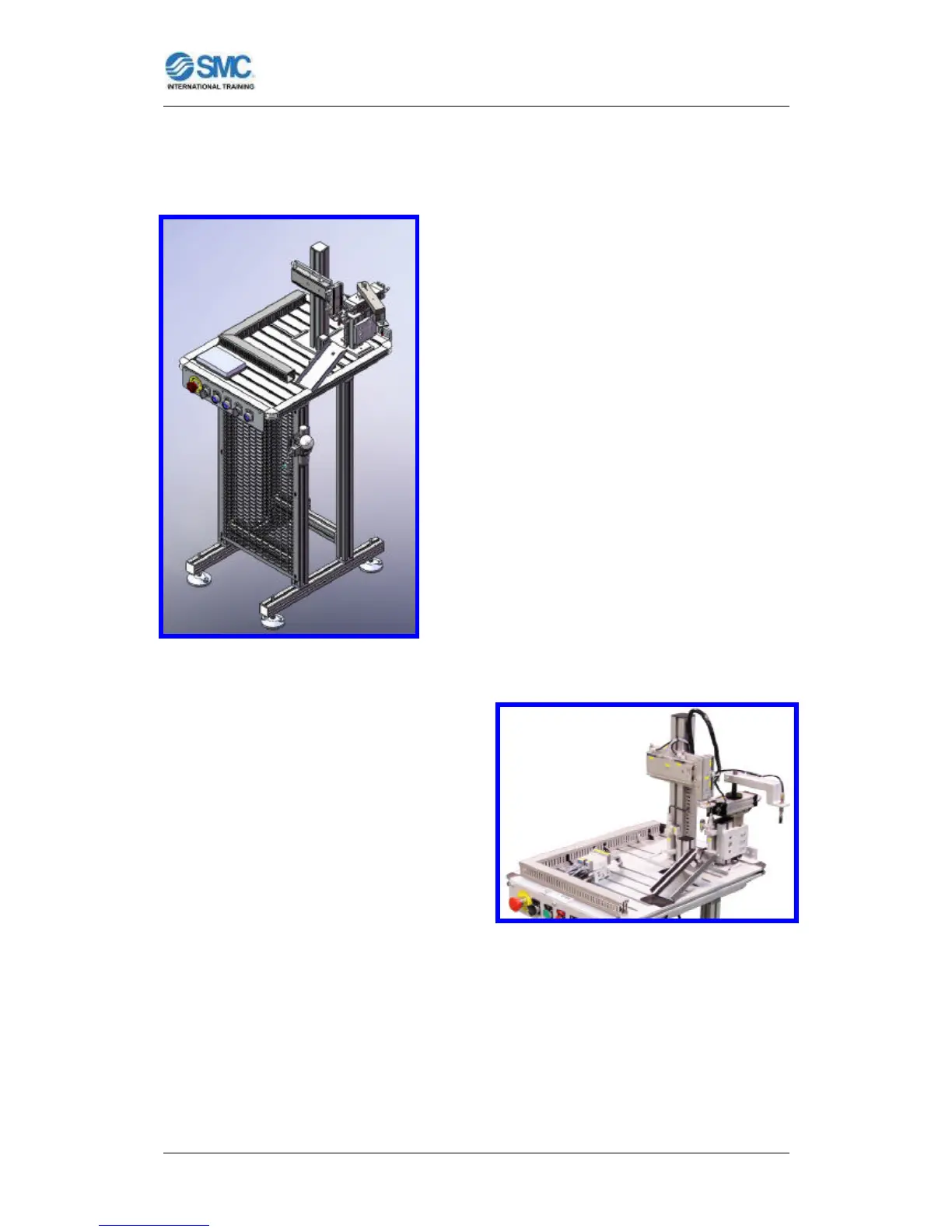

Figure 55: FAS208 Shaft
Rejecting/Transfering Module.
FUNCTION OF THE MODULE:
This eighth module is complementary to
previous one. This module rejects the
shaft or places it inside the housing of
the body on the pallet, depending of the
signal about the shaft material from the
PLC of the previous module.
Figure 56: Manipulators of this module.
This operation begins when the pallet is positioned opposite the module, held in
a determined location by a stopper on the linear transfer, and when the PLC of
the seventh module sends the signal “end cycle” to the PLC of this eighth
module.
