FLEXIBLE ASSEMBLY SYSTEM FAS200
User Manual for FAS200 - 91 -
FAS-220 PALLET TRANSFER MODULE

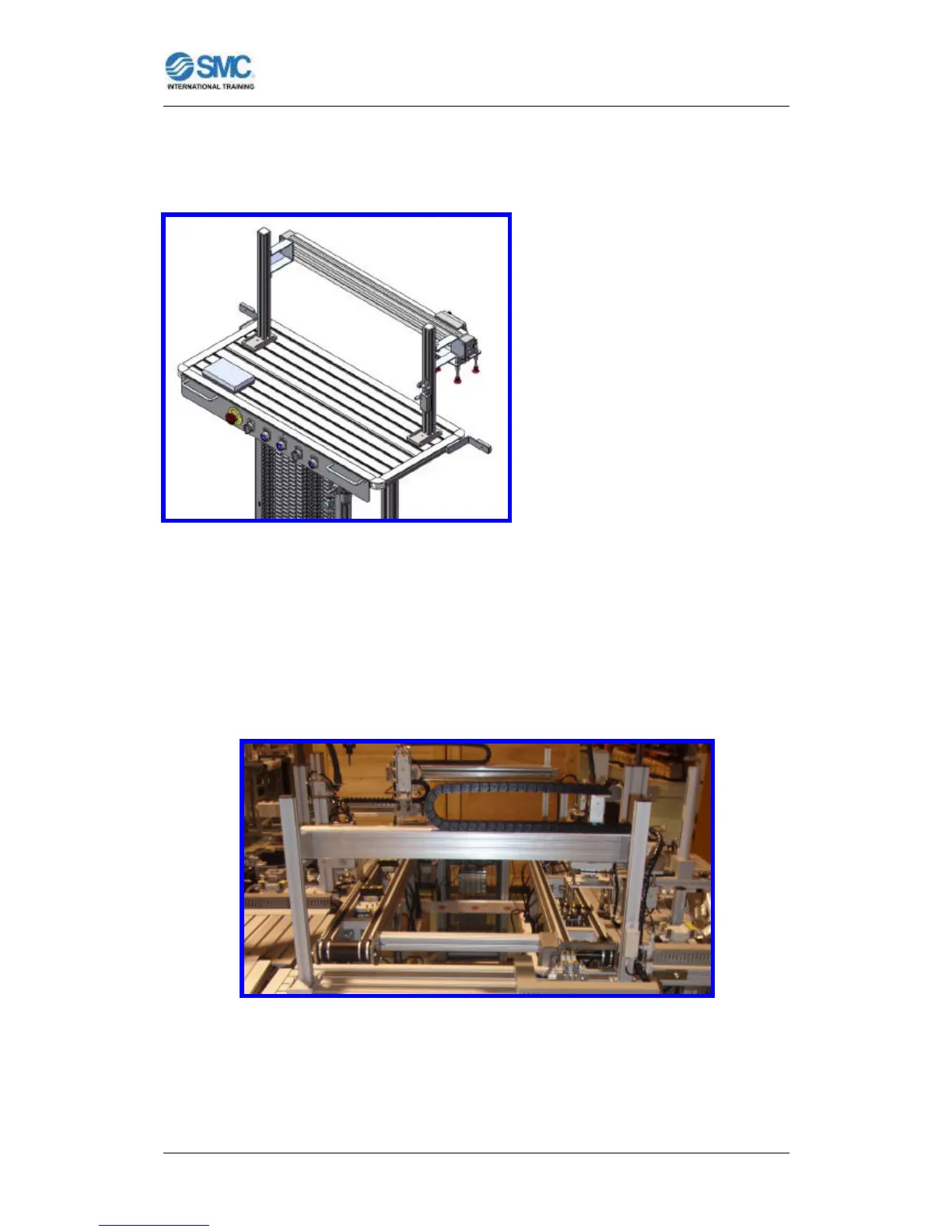

Figure 94: FAS220 Pallet Transfer
Module.
FUNCTION OF THE MODULE:
This modules allow transfer the pallets from one row of the system (conveyor
belts) to the next one so when the layout of the system can be a closed loop or
opened, but never in line.
Figure 95: Manipulators of the pallet transfer module.
