FAS-212 SCREWS INSERTION MODULE

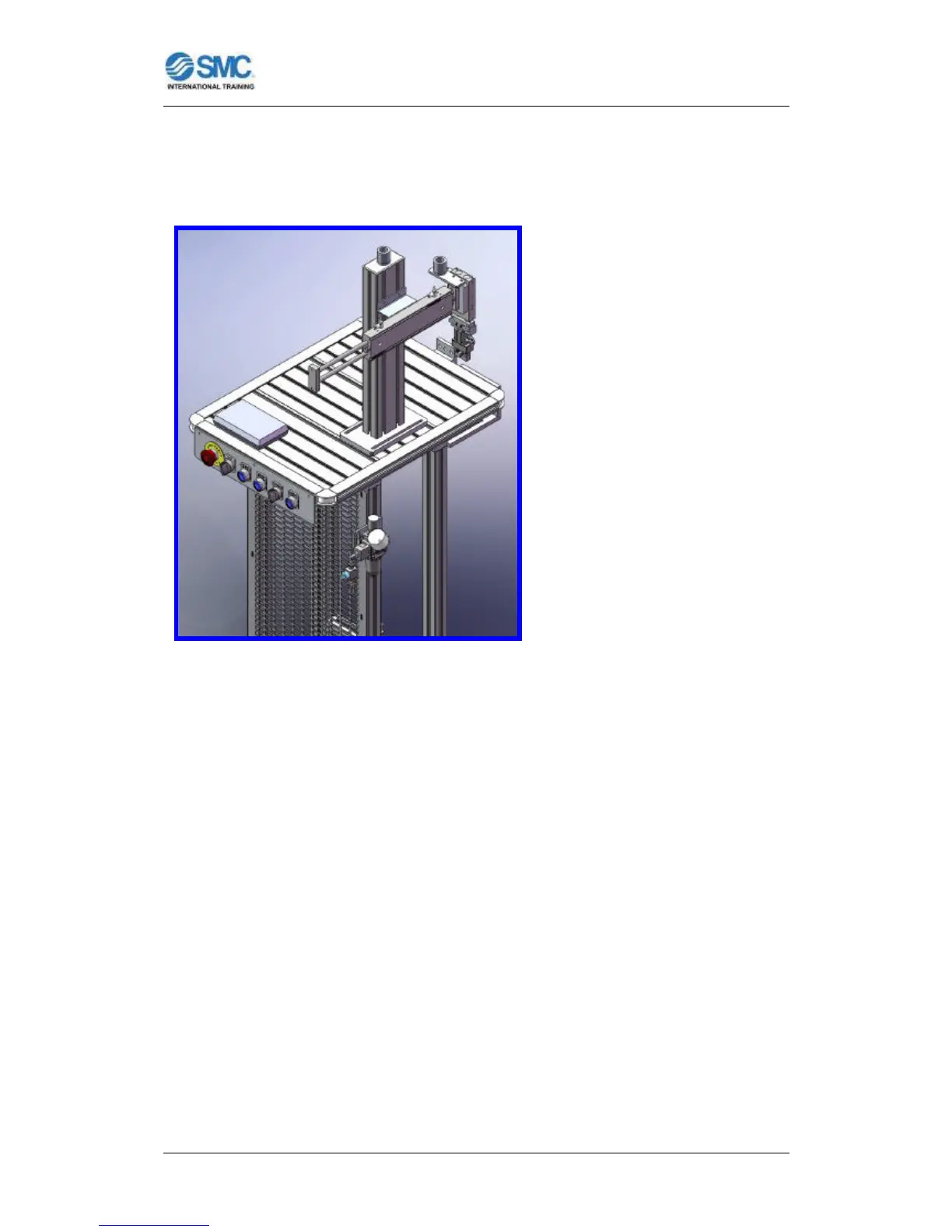

Figure 75: FAS212 Screws Insertion
Module.
This module carries out the final operation to fit components to the
assembly under construction, and involves the insertion of four screws in four
threaded holes in the base body of the turning mechanism.
The technology used to effect the movements at this module, based on different
pneumatic cylinders, means it is only possible to unload the screws at a single
point. In consequence, an additional component is needed for the transfer to
give it successive turns, so that four insertion cycles at this module will result in
the four screws being fitted.
The components used for this particular operation are a pneumatic lifting
cylinder on which a similarly operated rotary actuator is fitted.
