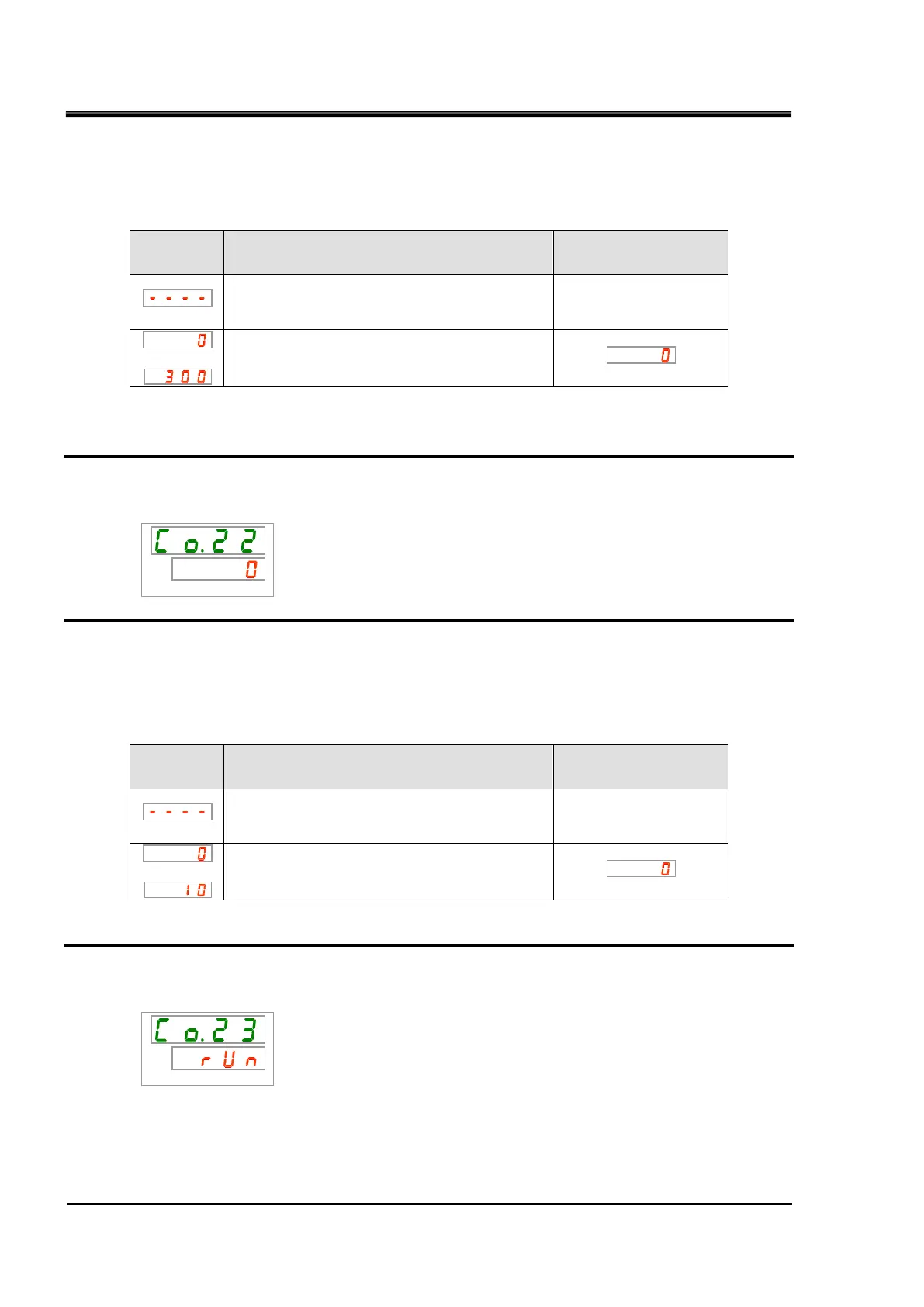

42. Set time delay for the contact input signal 2 delay timer for reading with [▲] key or [▼]
key, and press [SEL] key to enter.
Table 5.22-22 Setting of time delay for the contact input signal 2 delay timer for reading
Set value
Explanation
Default
Setting/checking is possible only when the
contact input signal 2 is set to external switch
signal input (N.O. or N.C.).
to
Setting of the contact input signal 2 delay
timer for reading
Setting range: 0 to 300 seconds
Setting/Checking: Contact input signal 2 OFF detection timer
43. Press the [SEL] key once.
Setting screen of contact input signal 2 OFF detection timer is displayed on the digital display.
44. Set threshold time for the contact input signal 2 OFF detection timer with [▲] key or [▼]
key, and press [SEL] key to enter.
Table 5.22-23 Time setting for contact input signal 2 OFF detection timer
Set value
Explanation
Default
Setting/checking is possible only when the
contact input signal 2 is set to external switch
signal input (N.O. or N.C.).
to
Setting of the contact input signal 2 OFF detection
timer
Setting range: 0 to 10 seconds
Setting/Checking: Contact output signal 1 function
45. Press the [SEL] key once.
Setting screen of contact output signal 1 function is displayed on the digital display.
