HRX-OM-Q026
Chapter 3 Transport and Setting Up
3.3 Installation HRSH Series
3-10
3.3 Installation
3.3.1 Installation
How to mount the product
1. Insert the product to the anchor bolts that were previously driven on the level floor.
2. Fasten the nuts to the anchor bolts.
3. Make sure that there is no looseness on all the anchor bolts and nuts.
[Tips]
SMC Foundations bolt set “IDF-AB500” (SUS M10x50mm) is applicable.
Please order separately.

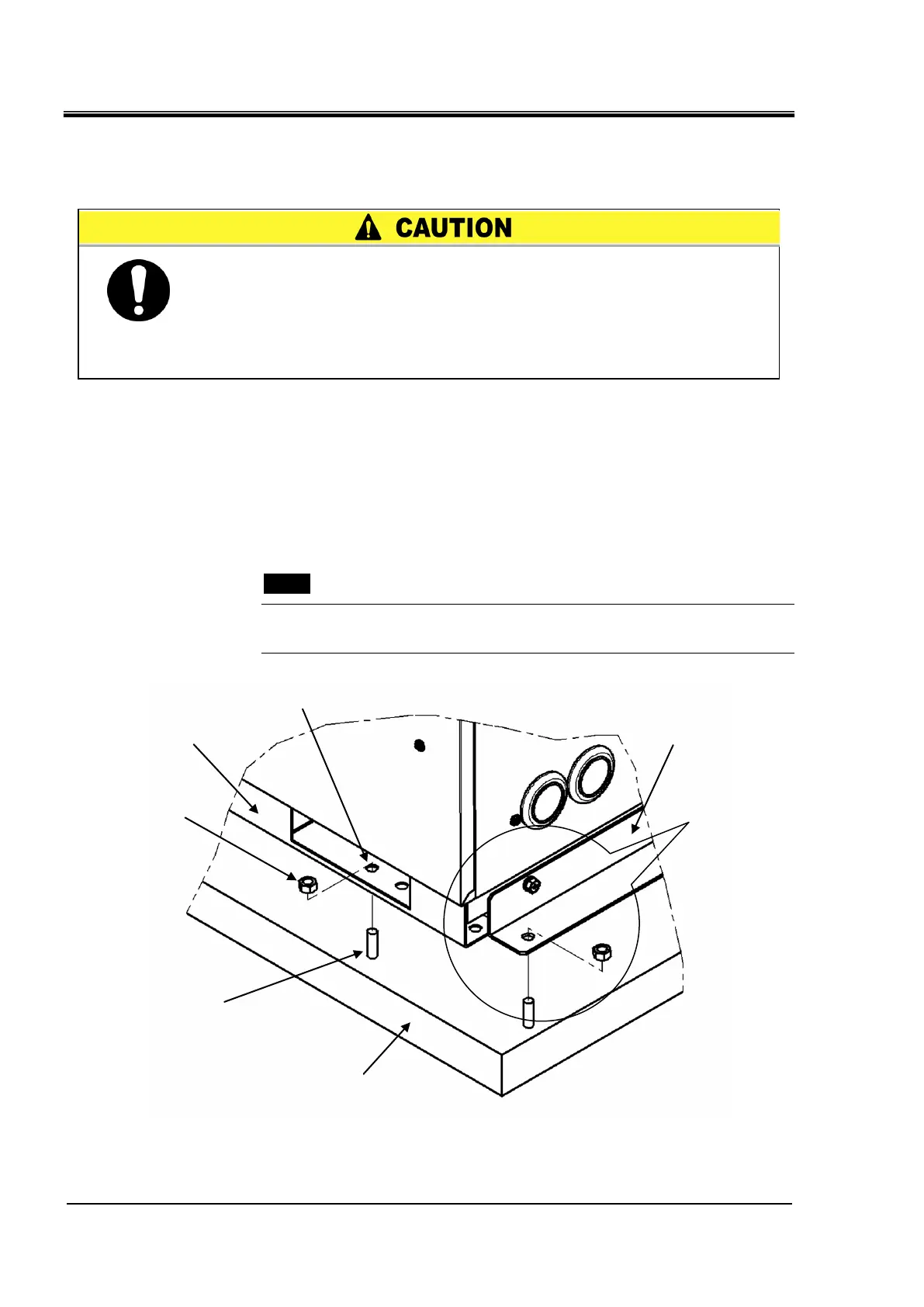

Fig. 3-4 Installation procedures
Install the product on a vibration free level floor.
Prepare the M10 anchor bolts that are suitable for the material of the
floor that the product will be installed on. Drive the anchor bolts in at
least two places on the left and right sides of the product (four places
in total). Refer to “8.2 Dimensions” for the dimensions for the position
of the anchor bolts.
Hole for anchor bolt (12mm)
Hole for anchor
bolt (12mm)
To Next Page
