SMC Networks HRSH250-W*-20 Series

HRX-OM-Q026
Chapter 8 Documents
HRSH Series 8.2 Dimensions
8-9
8.2.4 HRSH100/150/200/250-W-20/40-

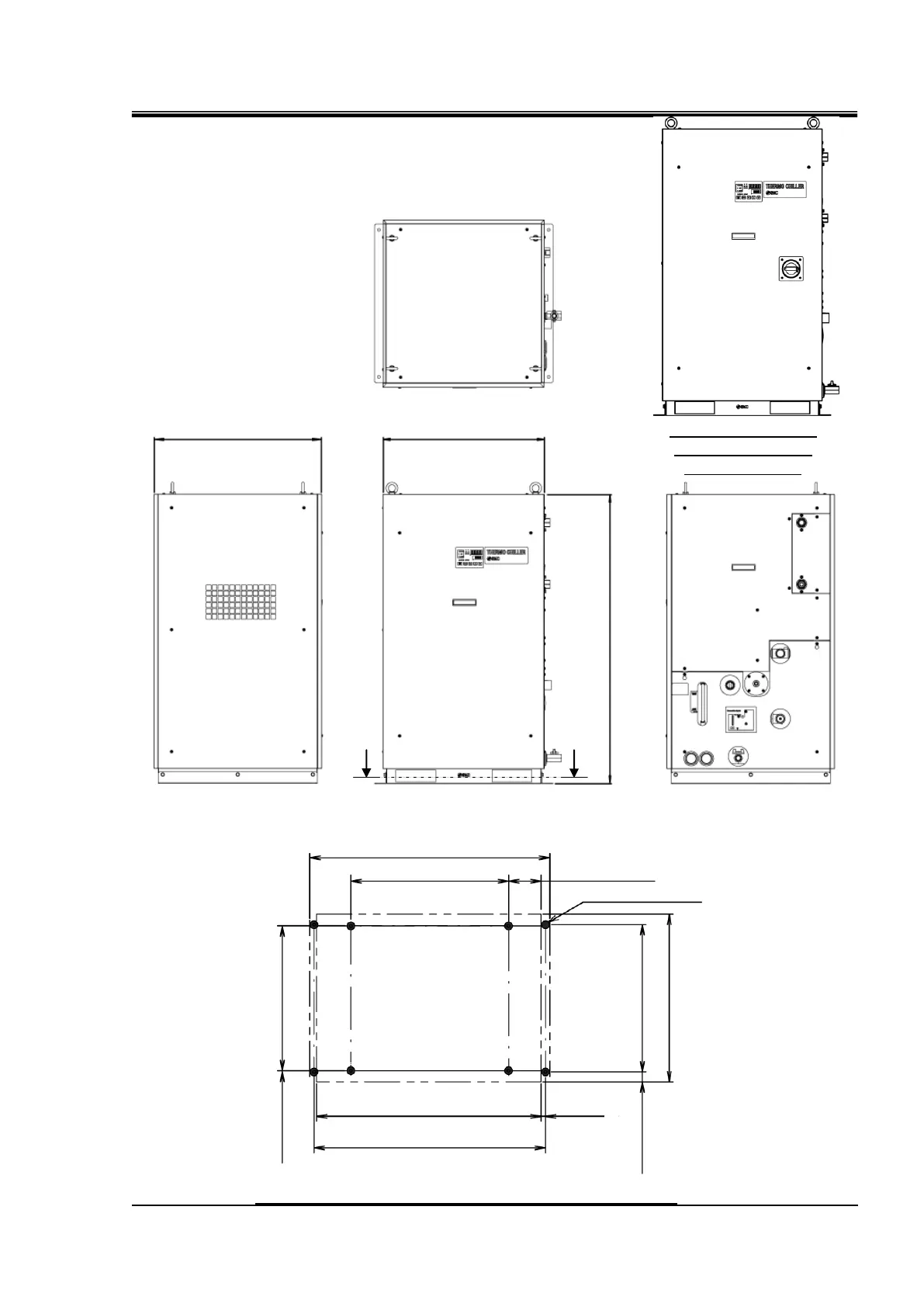

Fig. 8-4: Dimensions
715 mm (28.1 inch)
687 mm (27 inch)
1235 mm (48.6 inch)
a
a
HRSH250-W-20-B1,
HRSH250-W-20-S,
HRSH250-W-40
760 mm (29.9 inch)
627 mm (24.7 inch)
410 mm (16.1 inch)
138 mm (5.3 inch)
(715 mm) (28.1 inch)
617 mm (24.3 inch)
48 mm (1.9 inch)
724 mm (28.5 inch)
(687 mm) (27 inch)
19 mm
(0.7 inch)
43 mm (1.7 inch)
Dimensions for the positions of the anchor bolts (View a-a)
8xø12 mm (0.5 inch)
