SMC Networks HRSH250-W*-20 Series

HRX-OM-Q026
Chapter 8 Documents
8.2 Dimensions HRSH Series
8-6
8.2 Dimensions
8.2.1 HRSH100-A-20/40-

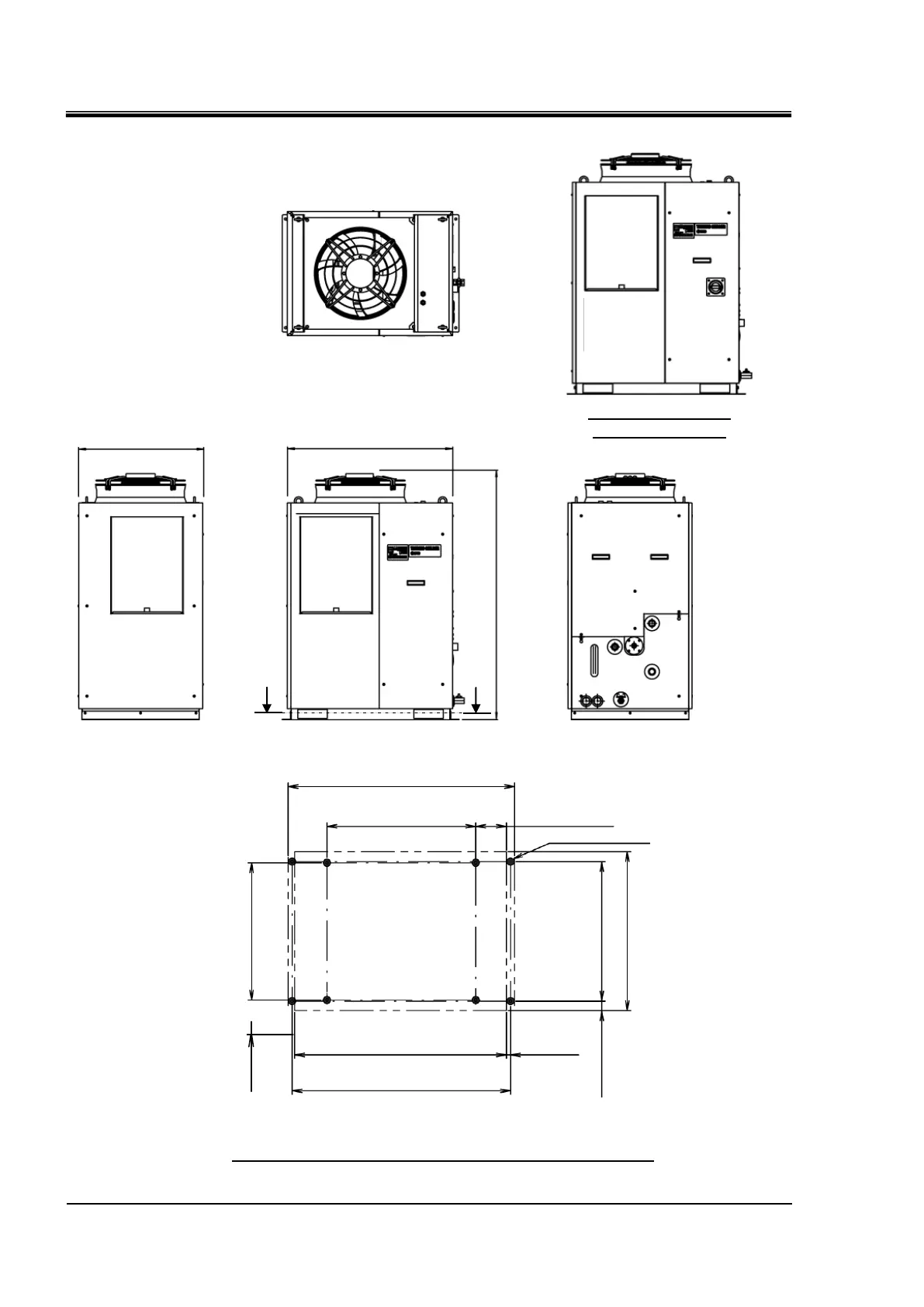

Fig. 8-1: Dimensions
HRSH100-A-20-B1,
HRSH100-A-20-S,
HRSH100-A-40
954 mm (37.6 inch)
1420 mm (55.9 inch)
a
a
715 mm (28.1 inch)
Dimensions for the positions of the anchor bolts (View a-a)
48 mm (1.9inch)
1020 mm (40.2 inch)
670 mm (26.4 inch)
138 mm (5.4 inch)
8xø12 mm (0.5 inch)
617 mm (24.3 inch)
(954 mm) (37.6 inch)
984 mm (38.7 inch)
627 mm (24.7 inch)
(715 mm)( 28.1 inch)
43 mm (1.7 inch)
19 mm
(0.7 inch)
