Chapter 3 Transport and Setting Up
HRSH Series 3.2 Installation
3-9
3.2.4 Installation and maintenance space
It is recommended to keep the space around the product shown in Fig. 3-3.

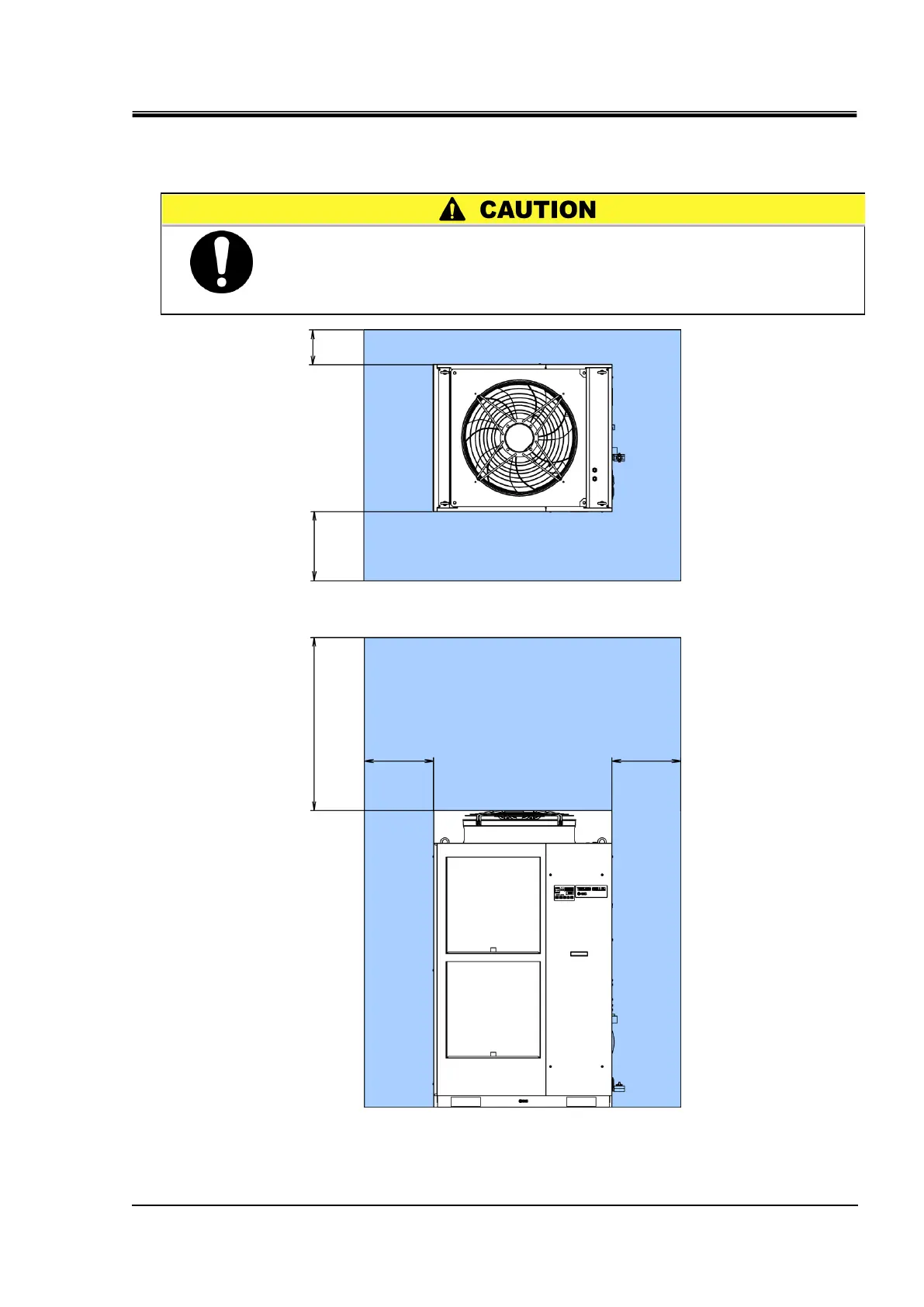

Fig. 3-3 Installation space (This drawing shows “HRSH250-A-20”.)
Have an enough space for the ventilation for the product. Otherwise it
may cause a lack of cooling capacity or/and stoppage of the product.
Ensure there is enough space for maintenance.
Top
Front
800mm or more
(For water cooled type)
400mm or more

800mm or more
2000mm or more
800mm or more
800mm or more
