Chapter 3 Transport and Setting Up
3.1 Transport HRSH Series
3-2
3.1.1 Transportation using forklift and hanging

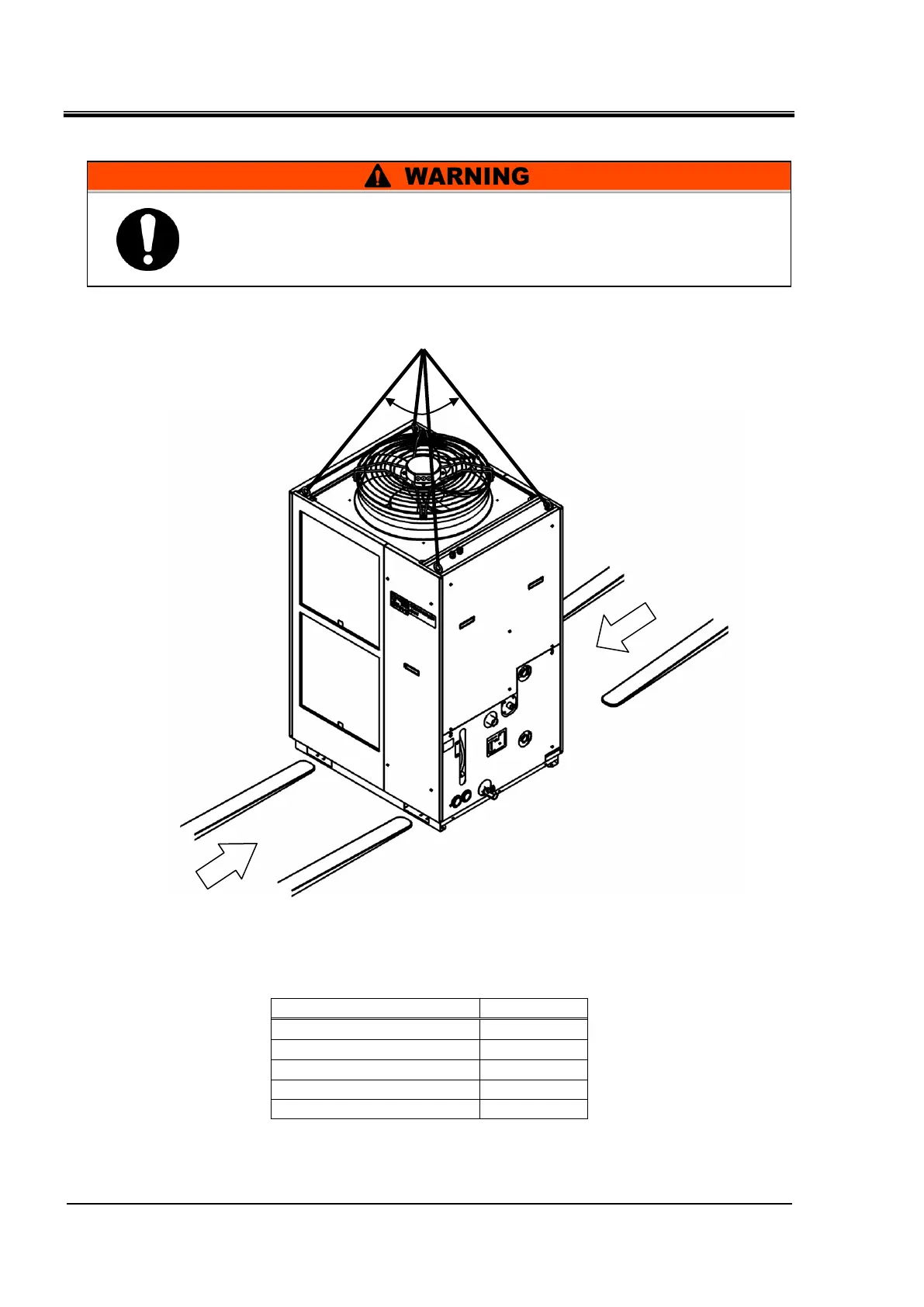

Fig. 3-1 Fork inserting and hanging position (This drawing shows “HRSH250-A-20”.)
Table 3-1 Weight of the product
Model
Weight kg
HRSH250/300-A-
Approx. 280
HRSH150/200-A-
Approx. 215
HRSH100-A-
Approx. 180
HRSH150/200/250-W-
Approx. 180
HRSH100-W-
Approx. 150
This is a heavy product. (Refer to
Table 3-1 Weight of the product) Moving by forklift and slinging should be
done by persons who have the licenses.
Position to hang
60
o
or less
Fork inserting position
Fork inserting position
