5.4 Alarm Menu
5.4.1 Alarm menu
The alarm menu display appears when an alarm is generated.
The alarm menu is not accessible when no alarm has been generated.
Refer to “Chapter 6 Alarm Notification and Troubleshooting” for details of the alarms.

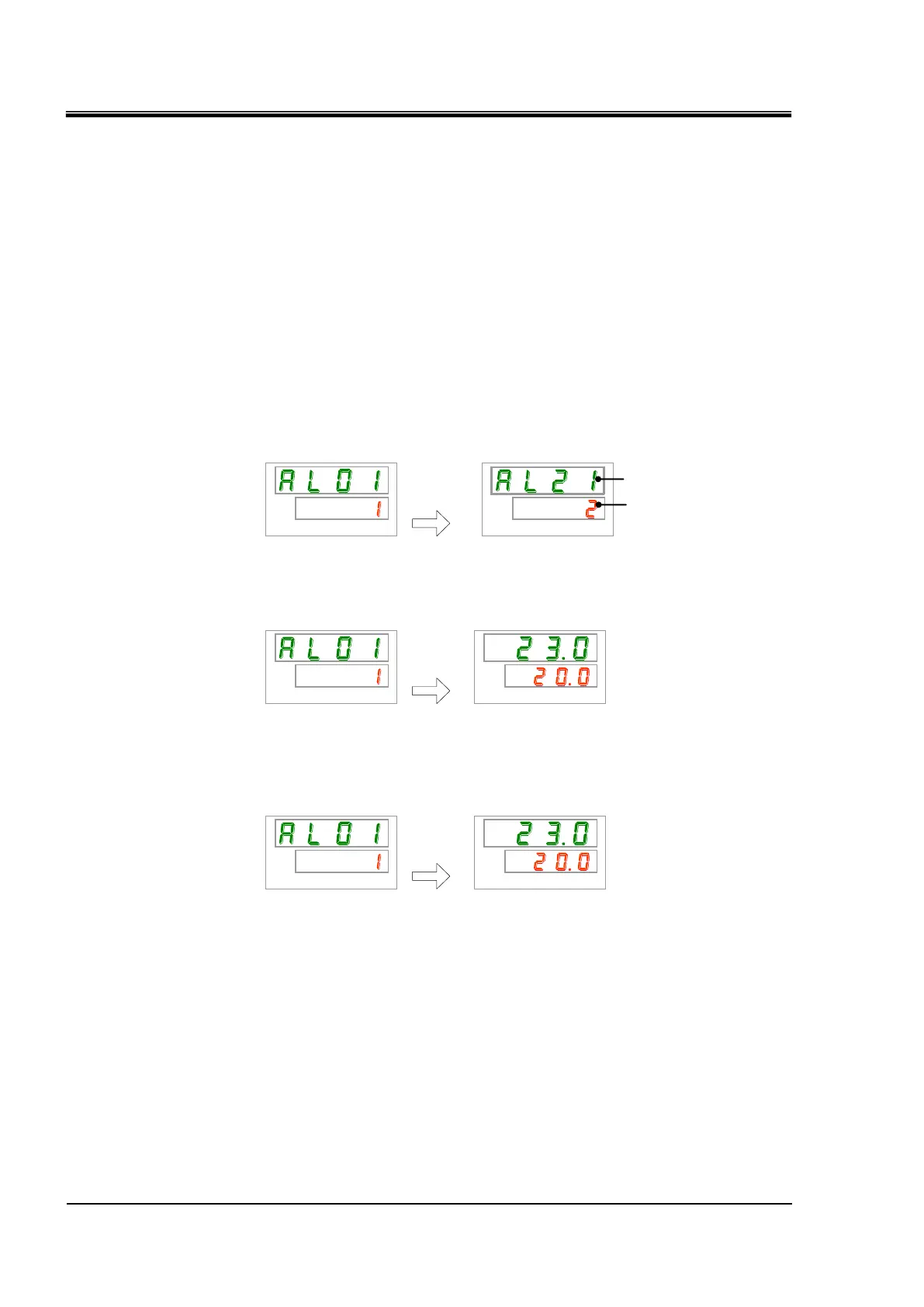

5.4.2 Items shown on the alarm menu display
The alarm menu display appears when an alarm is being generated.
When multiple alarms are being generated, the latest alarm is shown on the
display.
Each time the [SEL] key is pressed, the alarms are displayed in order,
starting from the latest one.
The main display is shown when the alarm is reset.
The main display is shown when [MENU] key is pressed while an alarm is
being generated.
The alarm menu display is shown when [MENU] key is pressed again.
PV
SV
PV
SV
PV
SV
PV
SV
PV
SV
PV
SV
Alarm code
Alarm log record
Press
［SEL］
key.
Press
[MENU]
key.
Alarm
reset
