SMC Networks HRSH250-W*-20 Series

HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
5.22 Communication Function HRSH Series
5-86

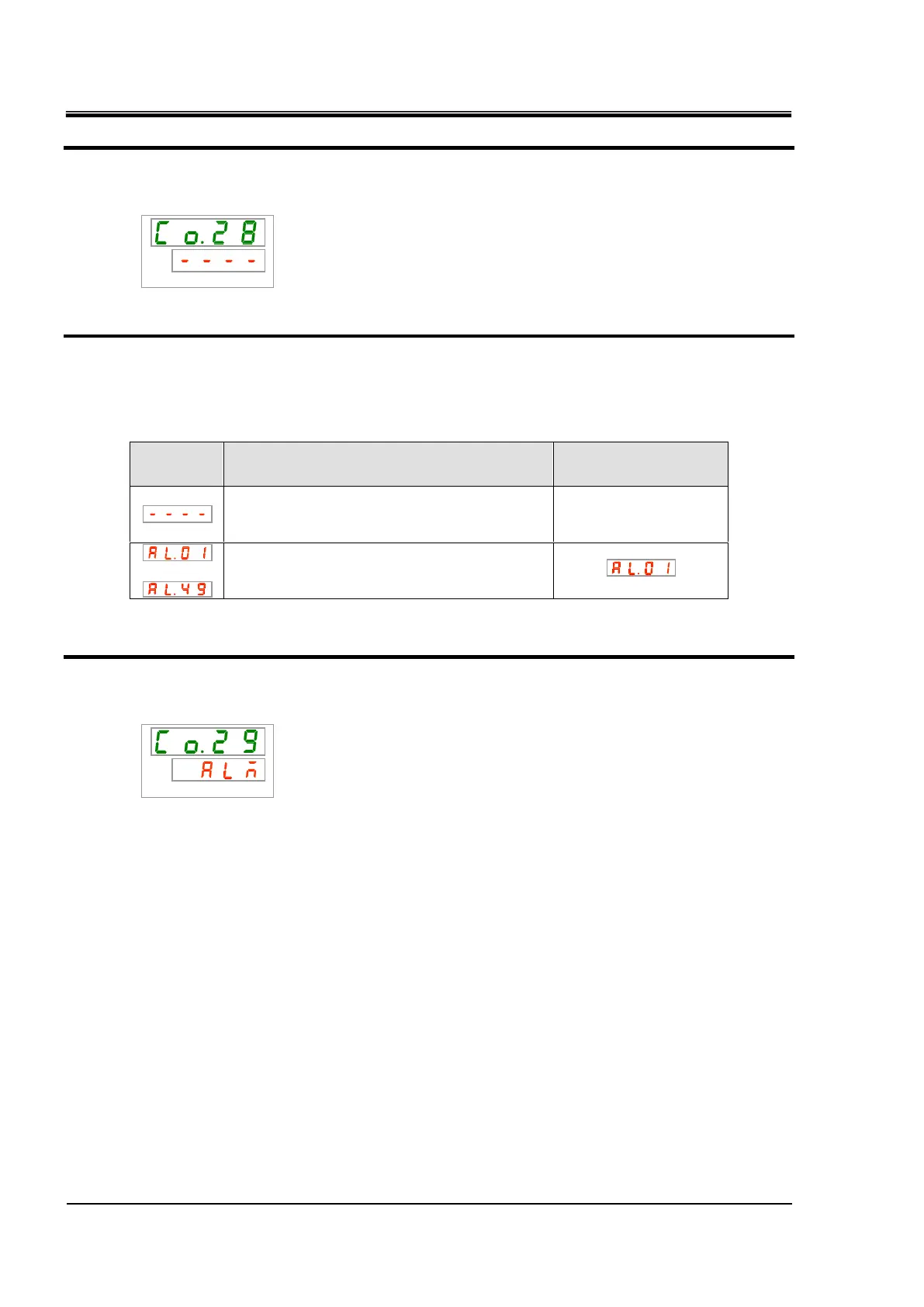

Setting/Checking: Selected alarm for contact output signal 2
55. Press the [SEL] key once.
Setting screen of selected alarm of the contact output signal 2 is displayed on the digital display.
56. Set the alarm selected for the contact output signal 2 with [▲] key or [▼] key, and
press [SEL] key to enter.
Table 5.22-29 Setting of the alarm selected for the contact output signal 2
Set value
Explanation
Default
Setting/checking is possible only when the contact
output signal 2 is set to the selected alarm status
signal output.
to
Setting of the selected alarm
Setting range: AL.01 to AL.49
Setting/Checking: Contact output signal 3 function
57. Press the [SEL] key once.
Setting screen of the contact output signal 3 function is displayed on the digital display.
PV
SV
PV
SV
