SMC Networks HRSH250-W*-20 Series

HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
5.22 Communication Function HRSH Series
5-88

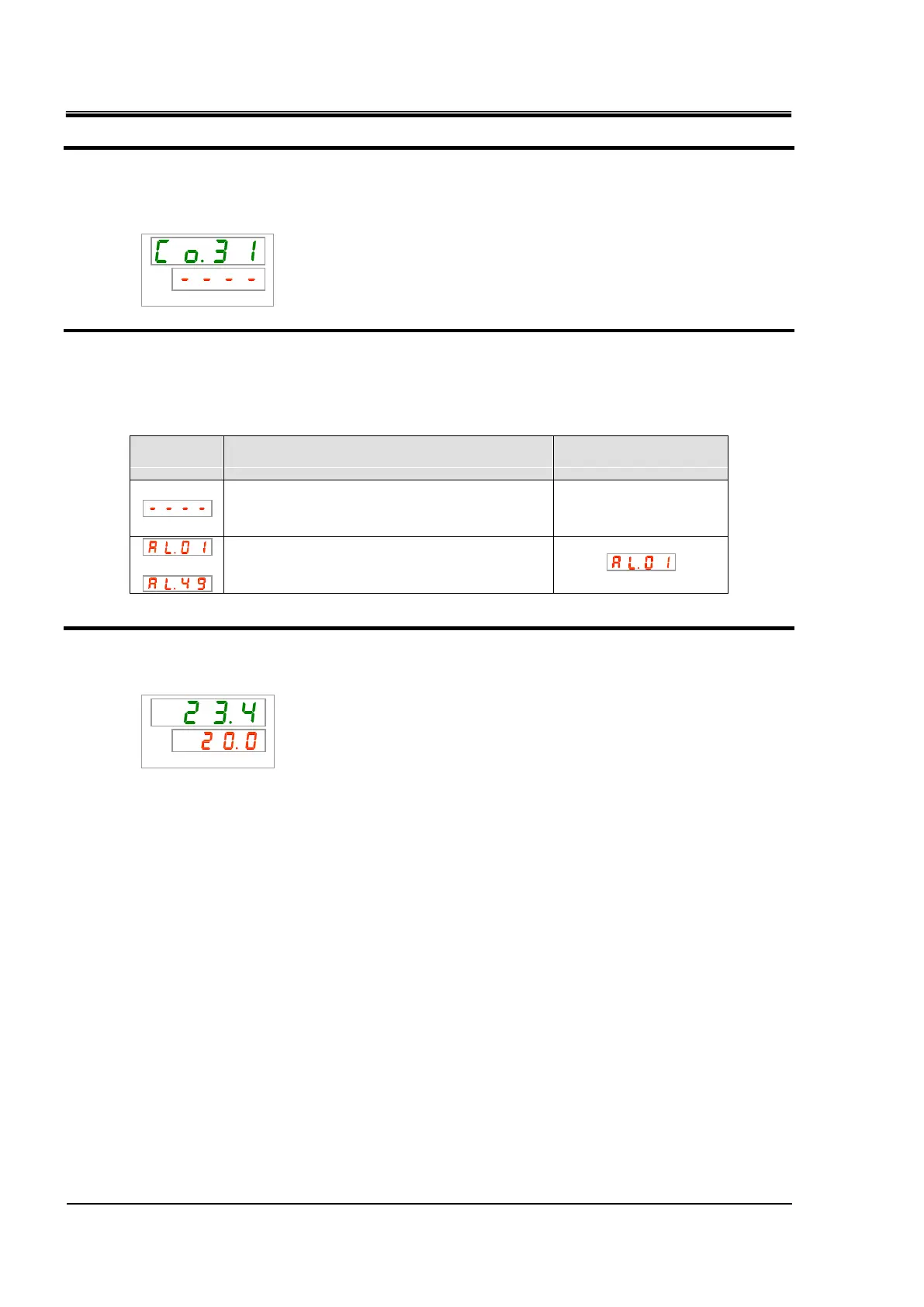

Setting/Checking: Selected alarm for contact output signal 3
61. Press the [SEL] key once.
Setting screen of the selected alarm of the contact output signal 3 is displayed on the digital
display.
62. Set the alarm selected for the contact output signal 3 with [▲] key or [▼] key, and
press [SEL] key to enter.
Table 5.22-32 Setting of an alarm selected for the contact output signal 3
Set value
Explanation
Default
Setting/checking is possible only when the contact
output signal 3 is set to the selected alarm status
signal output.
to
Setting of the selected alarm
Setting range: AL.01 to AL.49
63. Press the [MENU] key once.
Returns to the main display (which shows the circulating fluid temperature).
PV
SV
PV
SV
