Chapter 5 Display and Setting of Various Functions
5.9 Offset Function HRSH Series
5-24

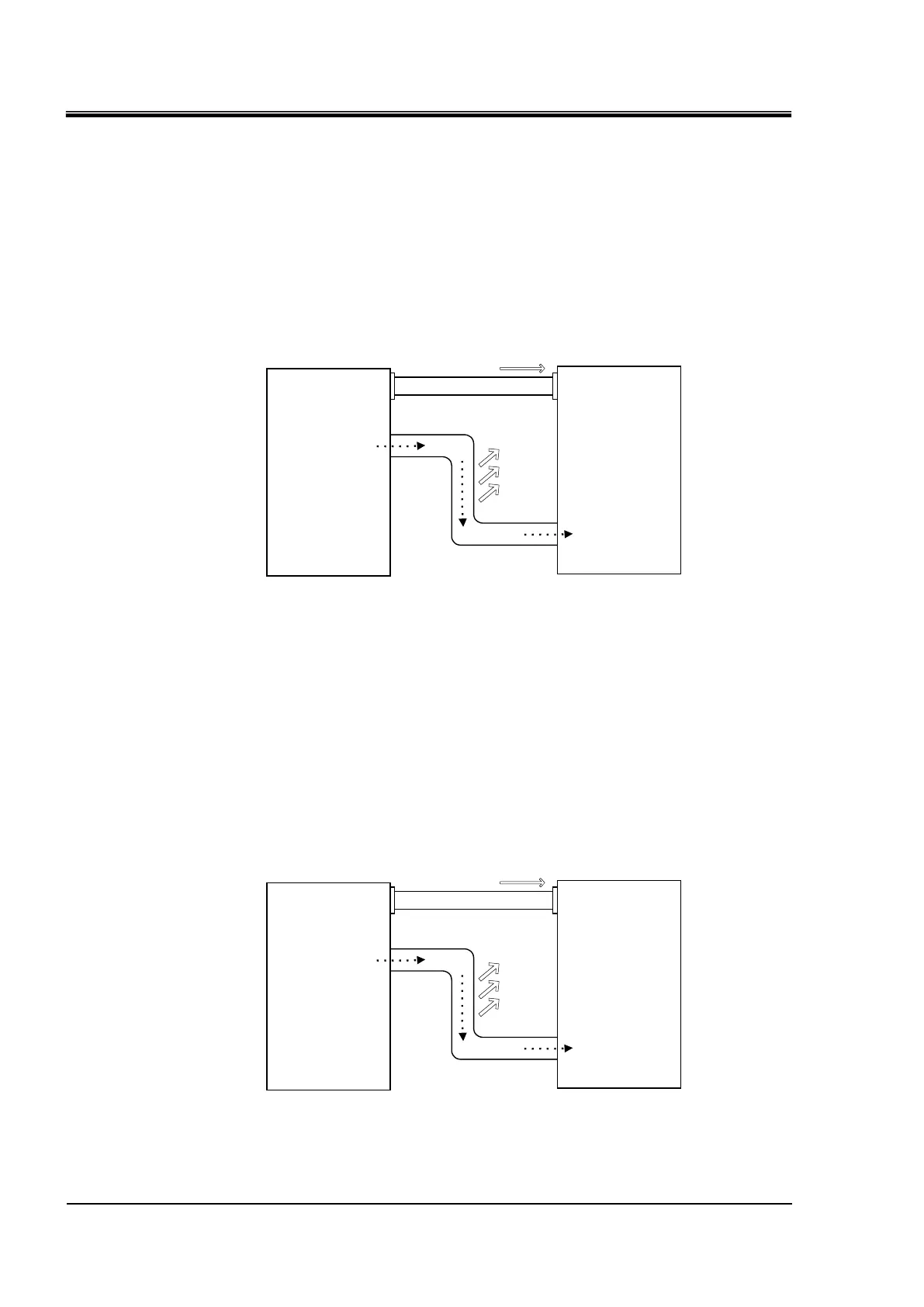

■ When only the "displayed circulating fluid temperature" needs to be
the same as the circulating temperature supplied to the user's
equipment:
Use "MODE 2" of the offset function, and set the offset temperature to "-1.0"
o
C.
1. The thermo-chiller controls the circulating fluid temperature aiming at 30
o
C
(set circulating fluid temperature).
2. 29
o
C (the actual fluid temperature of 30
o
C minus the offset temperature of 1
o
C)
will be displayed as the circulating fluid temperature.
■ When both the "set circulating fluid temperature" and the "displayed circulating fluid
temperature" need to be the same as the circulating temperature supplied to the user's
equipment:
Use "MODE 3" of the offset function, and set the offset temperature to "1.0"
o
C.
1. The thermo-chiller controls the circulating fluid temperature aiming at 31
o
C
(set circulating fluid temperature plus offset temperature).
2. The displayed circulating fluid temperature is the fluid temperature discharged from the
thermo-chiller (31
o
C minus the offset temperature).
Circulating fluid display
Circulating fluid display
