Chapter 2 Name of Each Section
HRW Series 2.1 Name of Each Section
2-1
Chapter 2 Name of Each Section
2.1 Name of Each Section

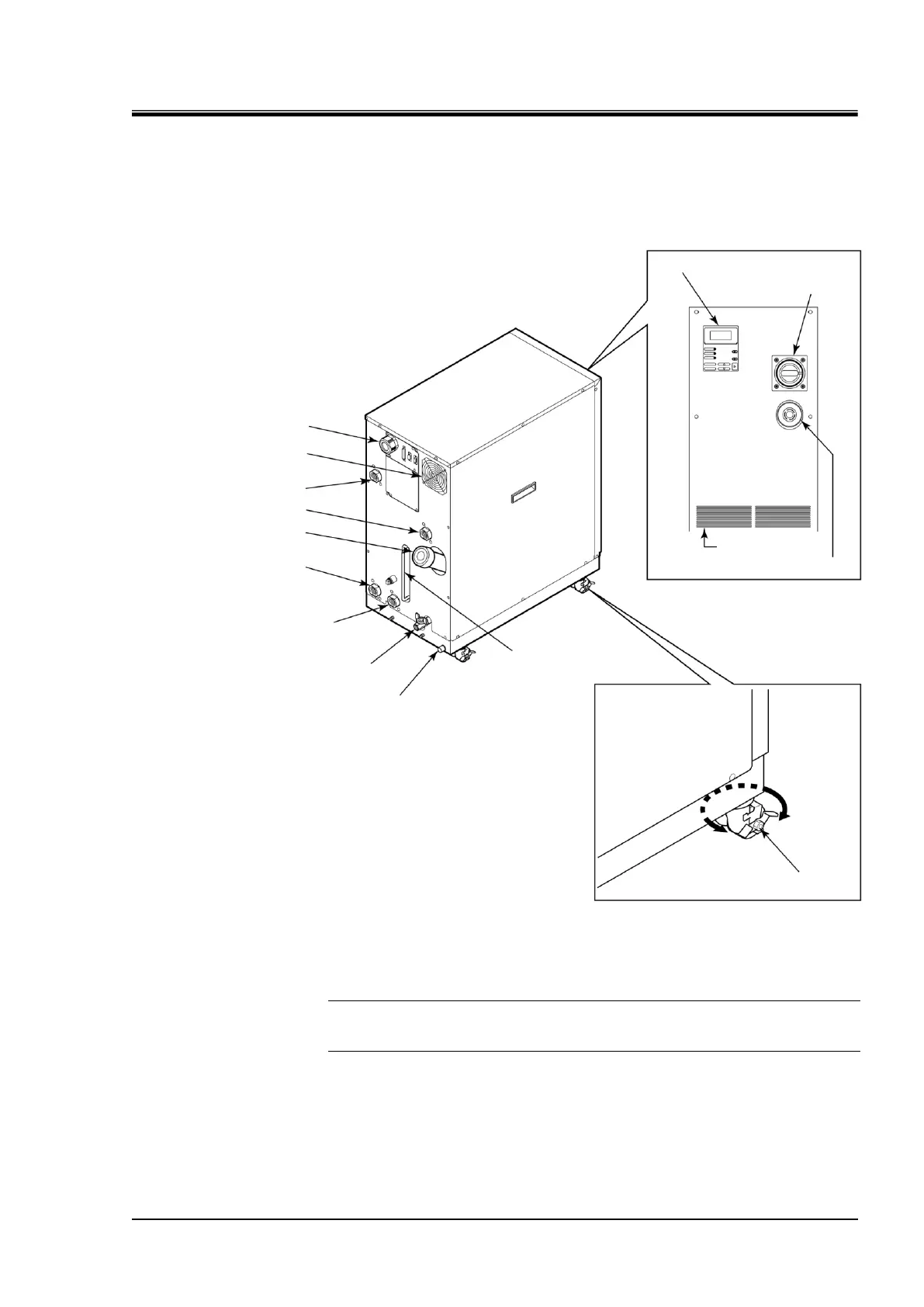

Figure 2-1 Name of Each Section
[Tips]
The casters have built-in brakes. The disengagement of the brakes is
required when transporting the system.
Caster w/ brake
Rotates 360°.
Operation display panel
Emergency off [EMO] switch
Main breaker
Ventilating hole
(intake side)
Power cable access
Ventilating fan (exhaust side)
Circulating fill port
Facility water inlet
Circulating fluid supply
Circulating fluid level gauge
Circulating fluid return
Tank drain port
Drain pan port
Facility water outlet
