SMC Networks HRW D Series User Manual

HRX-OM-K003
Chapter 5 System Operation
5.3 Operation Screen HRW Series
5-4

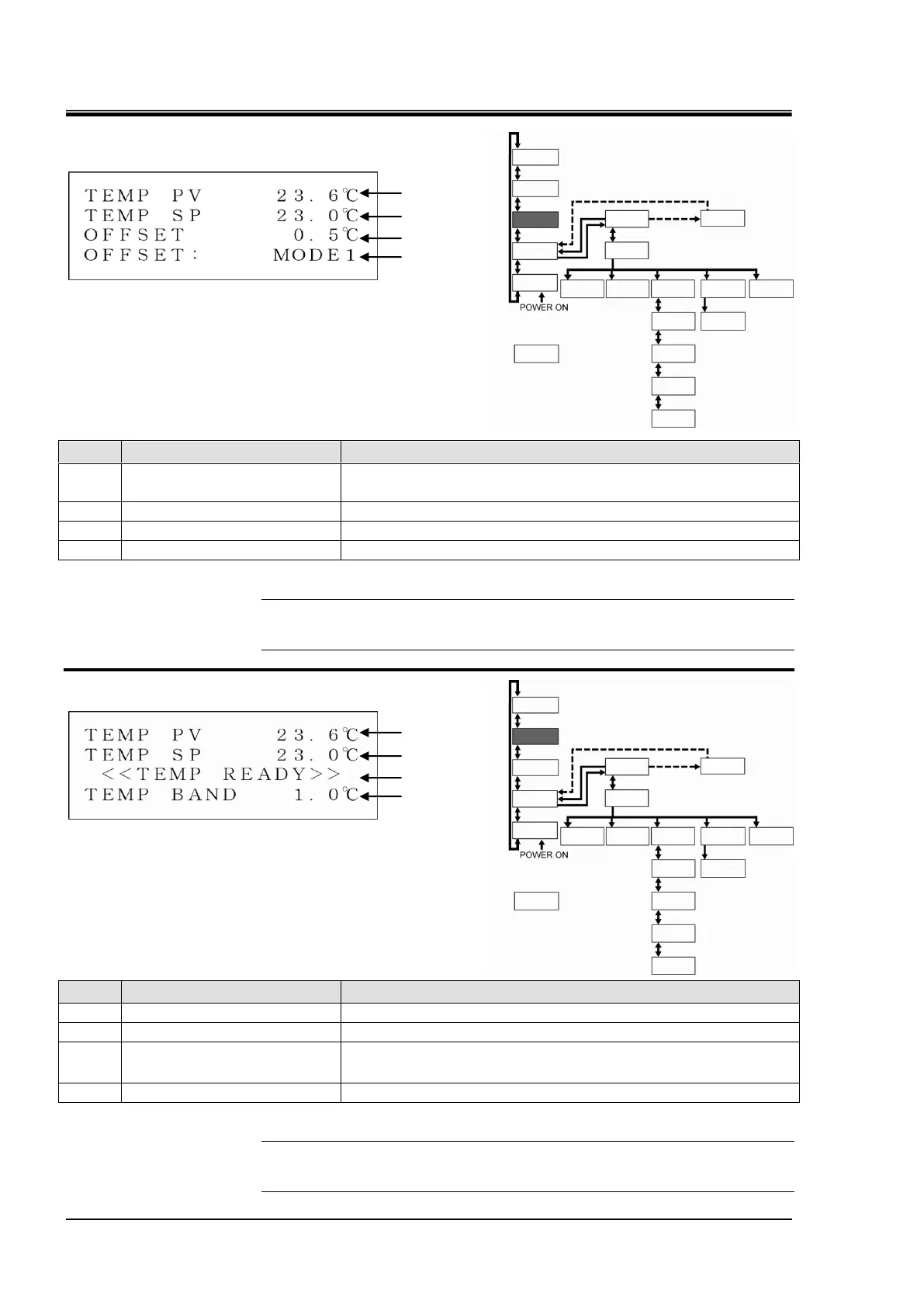

5.3.3 Status screen 2
Figure 5-5 Status Screen 2
Table 5-4 Status Screen 2
No.
Item
Descriptions
1
TEMP PV
Discharge temperature of the circulating fluid
(A value derived according to the offset
*1
if applied)
2
TEMP SP
Set circulating fluid temperature
3
OFFSET
Set offset
4
OFFSET
The current offset mode
[Tips]
See “Appendix 8.4 Offset Function” in Chapter 8 on page 8-9 on offset
features (*1).
5.3.4 Status screen 3
Figure 5-6 Status Screen 3
Table 5-5 Status Screen 3
No.
Item
Descriptions
1
TEMP PV
Discharge temperature of the circulating fluid
2
TEMP SP
Set circulating fluid temperature
3
<<TEMP READY>>
Displays the BAND/READY [Displayed when set value
conditions are satisfied］
*1
4
TEMP BAND
Set value of BAND range
*1
[Tips]
See “Appendix 8.5 BAND/READ” in Chapter 8 on page 8-12 on offset
features (*1).
1
2
3
4
1
2
3
4
