SMC Networks HRW D Series User Manual

HRX-OM-K003
Chapter 8 Appendix
HRW Series 8.6 Anchor Bolt Mounting Position
8-13
8.6 Anchor Bolt Mounting Position
Lock the brakes on casters, and attach the anti-seismic bracket (optional:
HRZ-TK002) to secure this system.

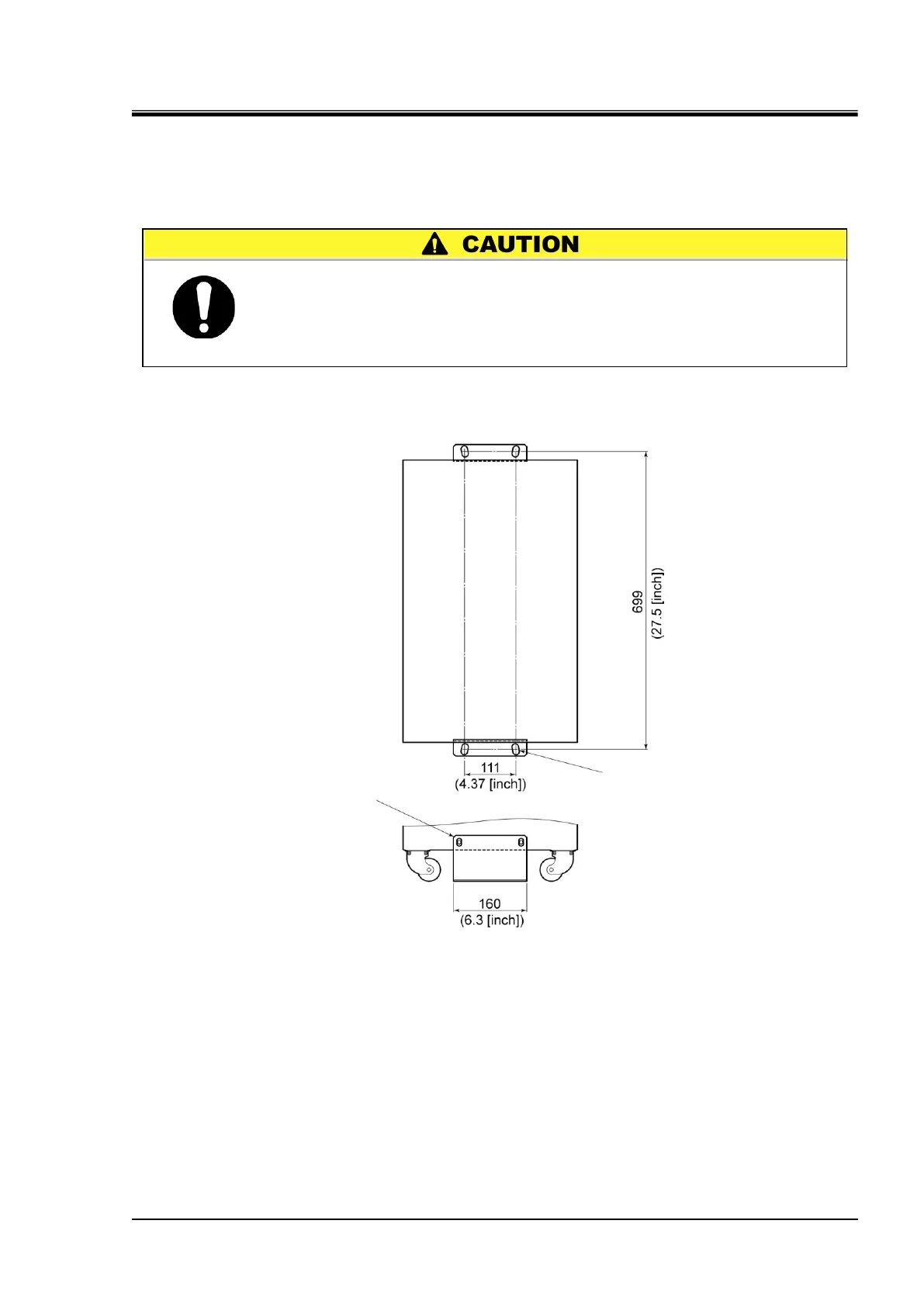

Figure 8-9 Anchor Bolt Mounting Position
Anti-seismic bracket (optional)
Anchor bolt (4-Ø14)
Top
 Anti-seismic bracket is an optional accessory, which is required for the
installation of this system (HRZ-TK002).
 It is your responsibility to prepare anchor bolts suitable for your floor
material.
 M12-anchor bolts (4 pcs.) are required.
Front
Anti-seismic bracket (optional)
Anchor bolt (4-Ø14)
Top
